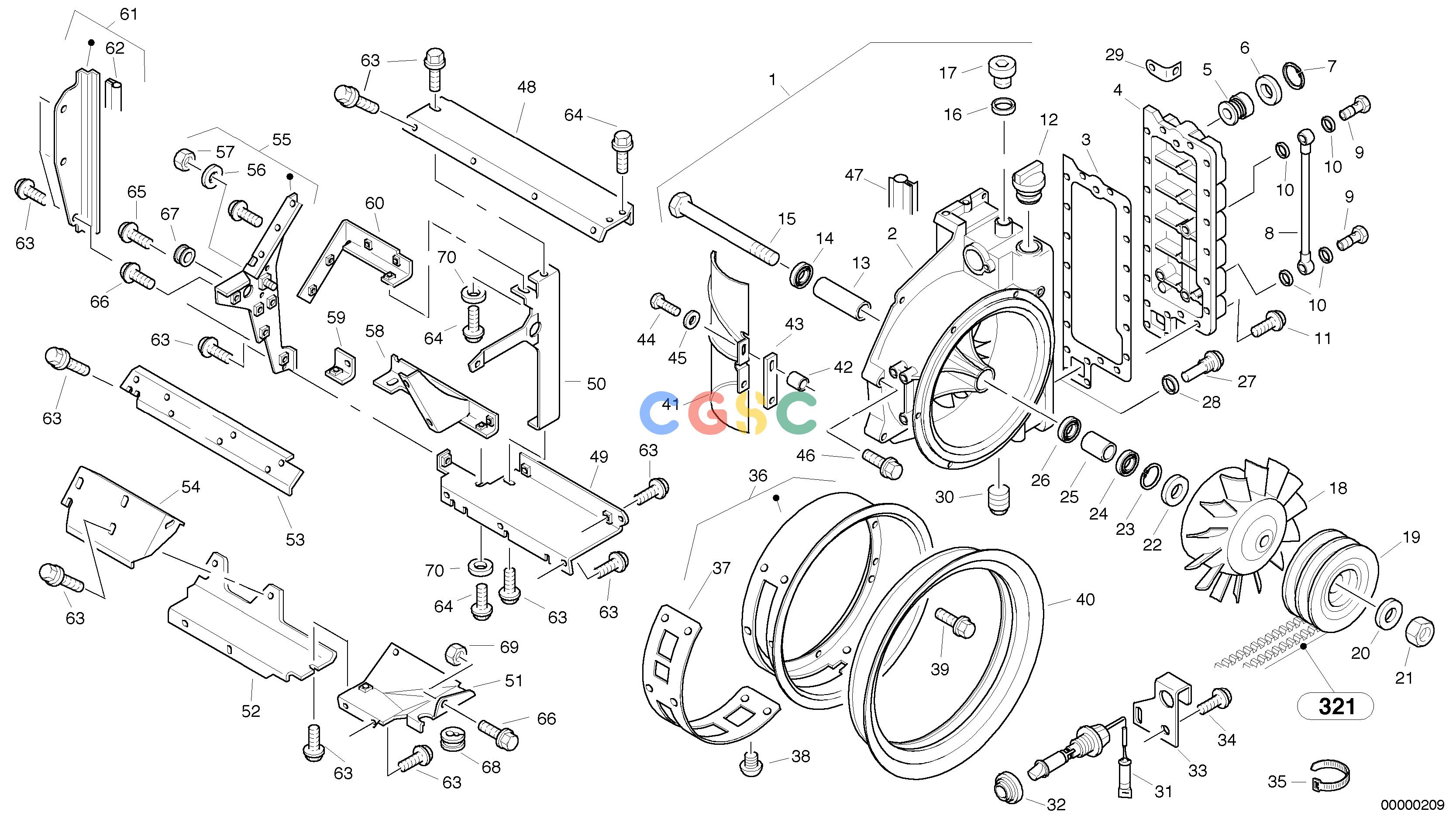

沃尔沃零件查询L40 Fan, Blower casingTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906982
|
[1] |
Fan
|
|
| 10. |
ZM8099570
|
[4] |
Gasket
|
A10x16
|
| 11. |
ZM2906991
|
[20] |
Screw
|
|
| 12. |
ZM2906992
|
[1] |
Filler cap
|
|
| 13. |
ZM2906993
|
[1] |
Hollow Shaft
|
|
| 14. |
ZM2906994
|
[1] |
Washer
|
|
| 15. |
ZM2906995
|
[1] |
Screw
|
M12x180
|
| 16. |
ZM2906997
|
[1] |
Gasket
|
A20x24
|
| 17. |
ZM8099407
|
[1] |
Screw
|
M20x1,5
|
| 18. |
ZM2906983
|
[1] |
Impeller
|
|
| 19. |
ZM2810931
|
[1] |
V-belt pulley
|
ø 120 mm
|
| 2. |
ZM2906984
|
[1] |
Bracket
|
|
| 19. |
ZM2906977
|
[1] |
Pulley
|
ø 158 mm
|
| 20. |
VOE11306295
|
[1] |
Washer
|
B13
|
| 21. |
VOE979019
|
[1] |
Hexagon nut
|
M12
|
| 22. |
ZM2907000
|
[1] |
Thrust Washer
|
|
| 23. |
ZM7094941
|
[1] |
Safety ring
|
62x2
|
| 24. |
VOE20450749
|
[1] |
Ball bearing
|
|
| 25. |
ZM4069450
|
[1] |
Bush
|
|
| 26. |
ZM2906999
|
[1] |
Bearing
|
|
| 27. |
VOE20381069
|
[1] |
Screw
|
|
| 28. |
ZM2906997
|
[1] |
Gasket
|
A20x24
|
| 3. |
ZM2906990
|
[1] |
Gasket
|
|
| 29. |
ZM2907001
|
[2] |
Retainer
|
|
| 30. |
ZM2905346
|
[1] |
Screw plug
|
|
| 31. |
ZM2907349
|
[1] |
Level relay
|
|
| 32. |
ZM2907350
|
[1] |
Rubber spout
|
|
| 33. |
ZM2907351
|
[1] |
Retainer
|
|
| 34. |
VOE20405885
|
[1] |
Screw
|
|
| 35. |
VOE4881440
|
[1] |
Cable tie
|
|
| 36. |
ZM2906979
|
[1] |
Ring
|
|
| 37. |
ZM2906980
|
[1] |
Sealing strip
|
|
| 38. |
ZM2290298
|
[6] |
Knob
|
|
| 4. |
ZM2906989
|
[1] |
Cover
|
|
| 39. |
VOE20450741
|
[6] |
Bolt
|
|
| 40. |
ZM2906978
|
[1] |
Sealing strip
|
|
| 41. |
ZM2906971
|
[1] |
Air Guide
|
|
| 42. |
ZM2906972
|
[2] |
Spacer Bushing
|
|
| 43. |
ZM2906973
|
[1] |
Plate
|
|
| 44. |
ZM2906974
|
[2] |
Screw
|
M6x65
|
| 45. |
ZM4333068
|
[2] |
Washer
|
|
| 46. |
VOE20405672
|
[5] |
Screw
|
|
| 47. |
ZM2906975
|
[1] |
Profile
|
|
| 48. |
ZM2907003
|
[1] |
Upper Section
|
|
| 5. |
ZM2906985
|
[1] |
Pressure retaining valve
|
|
| 49. |
ZM2907004
|
[1] |
Lower Section
|
|
| 50. |
ZM2907002
|
[1] |
Partition wall
|
|
| 51. |
ZM2907010
|
[1] |
Air Deflector
|
|
| 52. |
ZM2907011
|
[1] |
Support plate
|
|
| 53. |
ZM2907012
|
[1] |
Conn Plate
|
|
| 54. |
ZM2907013
|
[1] |
Cover
|
|
| 55. |
ZM2907014
|
[1] |
End Plate
|
|
| 56. |
ZM2802428
|
[1] |
Washer
|
A13
|
| 57. |
VOE979019
|
[1] |
Hexagon nut
|
M12
|
| 58. |
ZM2907008
|
[1] |
Attachment bracket
|
|
| 6. |
ZM2906986
|
[1] |
Washer
|
|
| 59. |
ZM2907009
|
[1] |
Attachment bracket
|
|
| 60. |
ZM2907007
|
[1] |
Attaching bracket
|
|
| 61. |
ZM2907005
|
[1] |
Sealing plate
|
|
| 62. |
ZM2907006
|
[1] |
Rubber Strip
|
|
| 63. |
ZM2900671
|
[24] |
Screw
|
|
| 64. |
VOE20405885
|
[8] |
Screw
|
|
| 65. |
VOE20405504
|
[1] |
Screw
|
|
| 66. |
VOE20481759
|
[3] |
Screw
|
|
| 67. |
ZM4079850
|
[1] |
Rubber spout
|
|
| 68. |
ZM2907016
|
[1] |
Grommet
|
|
| 7. |
ZM7094968
|
[1] |
Safety ring
|
42x1,75
|
| 69. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 70. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 8. |
ZM2906987
|
[1] |
Pipe
|
|
| 9. |
ZM2906988
|
[2] |
Hollow Screw
|
|
