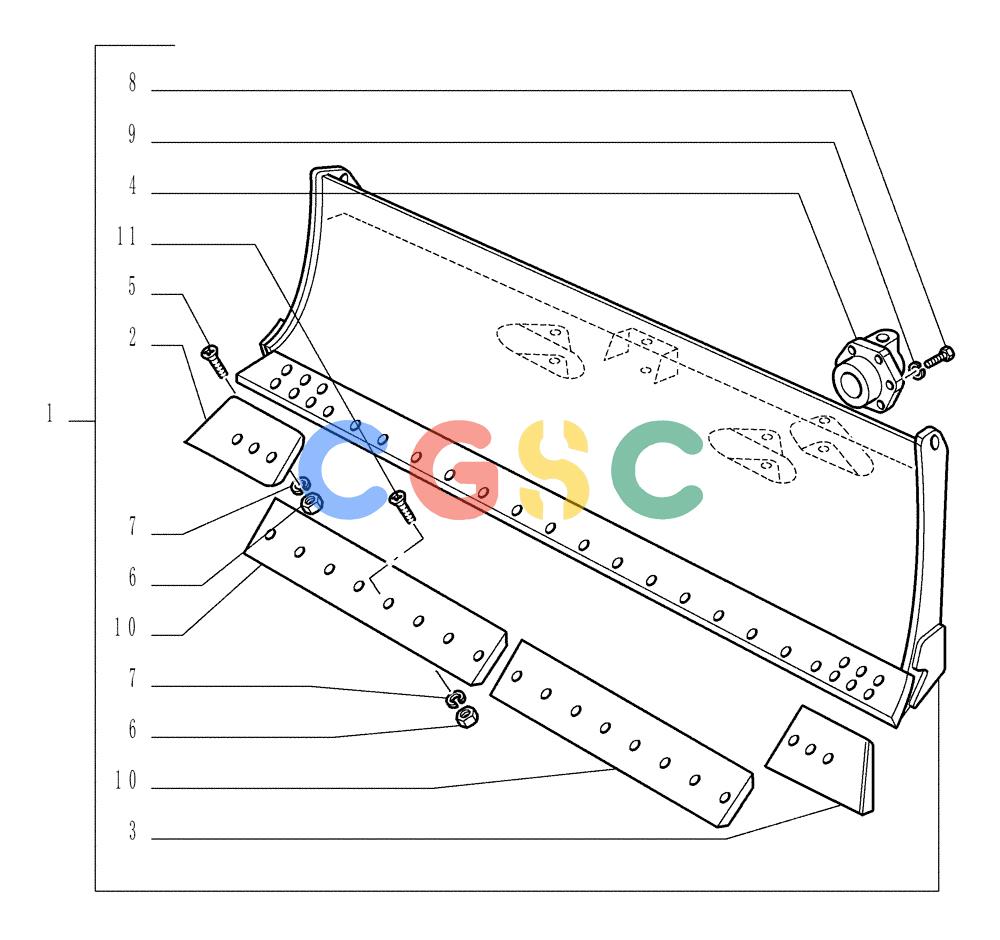

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.440[02]) - FRONT IMPLEMENT ALL HYDR.- MOLDBOARD - OPTIONAL CODE 76054902 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
413 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041739 | [1] | DOZER BLADE | LEC- ASSY |
| 2. | 76072410 | [1] | CUTTING EDGE | LEC- RIGHT |
| 3. | 76072411 | [1] | CUTTING EDGE | LEC- LEFT |
| 4. | 76041646 | [1] | SUPPORT | LEC |
| 5. | 8282270 | [6] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 6. | 86015195 | [22] | NUT,M20 x 1.5, Cl 10 | RAC |
| 7. | 14497131 | [22] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 8. | 11391531 | [6] | BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11391537 |
| 9. | 14496931 | [6] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 10. | 79101015 | [2] | CUTTING EDGE,Bolt On, Double Edged, 8 Hole, 200mm W x 1176mm L | LEC- CENTRAL |
| 11. | 8273211 | [16] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
