纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.440[10]) - LIFT CYLINDERS - FRONT IMPLEMENT - OPTIONAL CODE 76054902 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
272 次

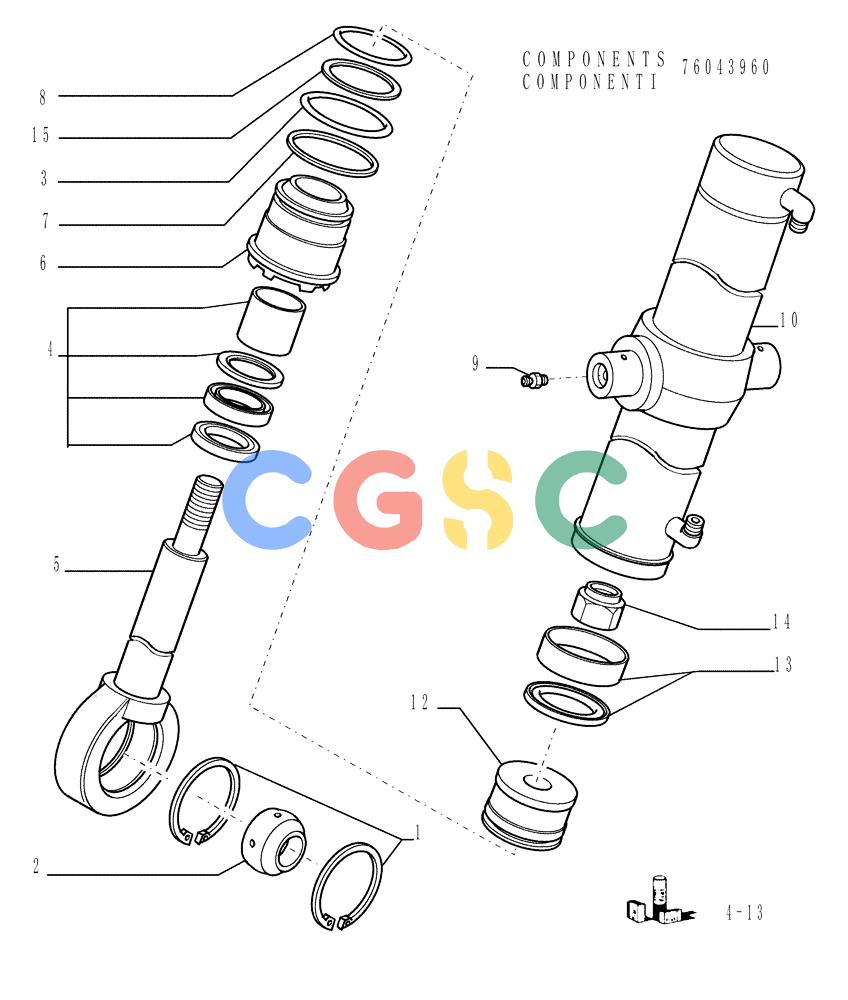

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76066295 | [2] | LOCKING RING | LEC |
| 2. | 76066296 | [1] | ARTICULATION | LEC |
| 3. | 76066300 | [1] | O-RING | LEC Superseded by part number: 14465781 |
| 4. | 76066272 | [1] | GASKET KIT | LEC |
| 5. | 76066294 | [1] | ROD | LEC |
| 6. | 76066297 | [1] | BASE PLATE | LEC |
| 7. | 76066299 | [1] | CIRCLIP | LEC |
| 8. | 76066304 | [1] | O-RING | LEC |
| 9. | 76066298 | [2] | LUBE NIPPLE | LEC |
| 10. | 76066306 | [1] | ENGINE CYLINDER LINER | TOR |
| 12. | 76066307 | [1] | PISTON | LEC |
| 13. | 76066282 | [1] | SEAL KIT | LEC |
| 14. | 76066301 | [1] | NUT | LEC |
| 15. | 76066303 | [1] | WASHER, THRUST | LECWASHER,THRUST |
