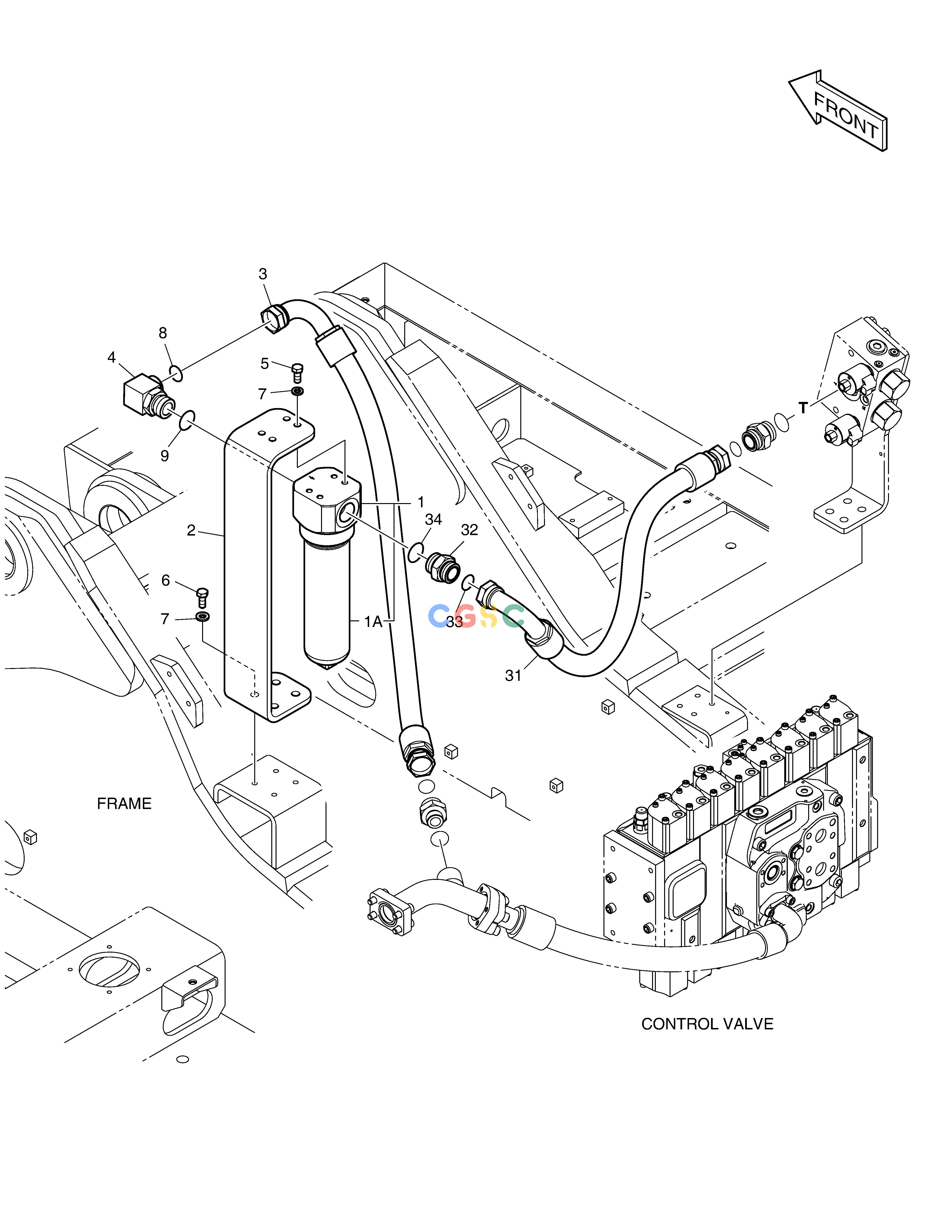

斗山零件查询TWO WAY PIPING - WITH FILTER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01029
|
[-] |
|
|
| 1. |
471-00109
|
[1] |
FILTER;BREAKER
|
|
| 1A. |
474-00041
|
[1] |
ELEMENT;BREAKER FILTER
|
|
| 2. |
110413-00009B
|
[1] |
|
|
| 3. |
DS20131682
|
[1] |
|
|
| 31. |
DS20131683
|
[1] |
|
|
| 32. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 33. |
S8030201
|
[1] |
|
|
| 34. |
S8000381
|
[1] |
O-RING
|
|
| 4. |
DS2304083
|
[1] |
ELBOW
|
|
| 5. |
S0515166
|
[4] |
BOLT
|
|
| 6. |
S0515266
|
[4] |
BOLT
|
|
| 7. |
4114-1792A
|
[8] |
WASHER
|
|
| 8. |
S8030201
|
[1] |
|
|
| 9. |
S8000381
|
[1] |
O-RING
|
|
