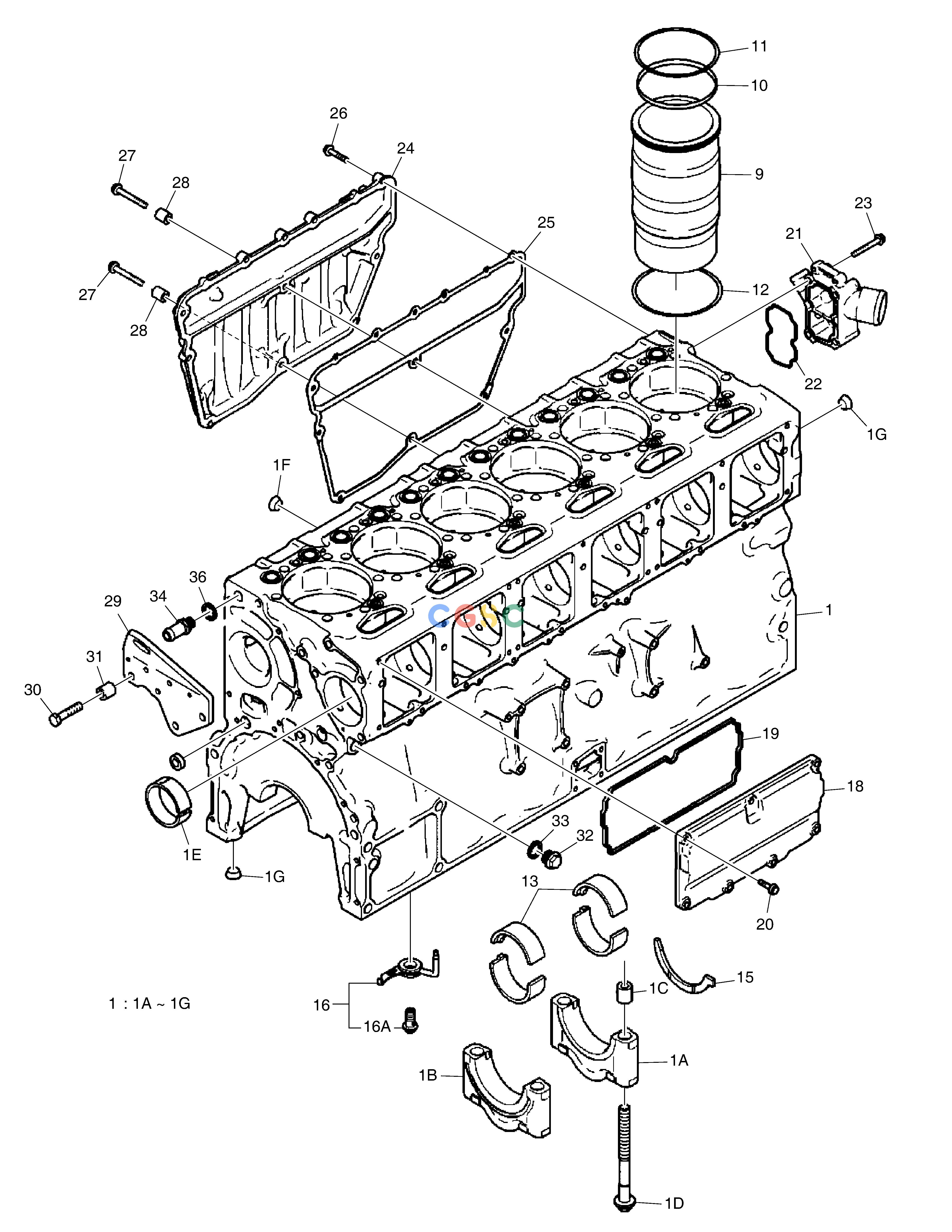

斗山零件查询CYLINDER BLOCK DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
217 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00700
|
[1] |
|
|
| 10. |
401002-01344
|
[6] |
JOINT
|
|
| 11. |
401002-00699
|
[6] |
JOINT
|
|
| 12. |
401002-00838
|
[6] |
|
|
| 13. |
140111-00016
|
[7] |
ROULEMENT
|
|
| 13. |
140111-00017
|
[7] |
|
|
| 13. |
140111-00018
|
[7] |
|
|
| 15. |
120816-00099
|
[4] |
|
|
| 15. |
120816-00100
|
[4] |
|
|
| 15. |
120816-00155
|
[4] |
RON DE LLE
|
|
| 16. |
430218-00319
|
[6] |
INJECTEUR
|
|
| 16A. |
120705-00685
|
[1] |
VIS
|
|
| 18. |
110508-08924
|
[3] |
COUVERCLE
|
|
| 19. |
400602-00455
|
[3] |
GARNITURE
|
|
| 1A. |
NA02317
|
[6] |
PAC
|
|
| 1B. |
NA02317
|
[1] |
PAC
|
|
| 1C. |
110949-00316
|
[14] |
MANCHE
|
|
| 1D. |
120705-00835
|
[14] |
VIS
|
|
| 1E. |
131002-00381
|
[7] |
DOUILLE
|
|
| 1F. |
430221-00582
|
[2] |
|
|
| 1G. |
430221-00583
|
[5] |
BOUCHON
|
|
| 20. |
120705-00747
|
[18] |
VIS
|
|
| 21. |
NA00456
|
[1] |
FLANGE
|
|
| 22. |
400602-00467
|
[1] |
GARNITURE
|
|
| 23. |
120705-00735
|
[4] |
VIS
|
|
| 24. |
110508-11416
|
[1] |
|
|
| 25. |
400602-00735
|
[1] |
|
|
| 26. |
120705-00731
|
[9] |
VIS
|
|
| 27. |
120705-00754
|
[2] |
|
|
| 28. |
110949-00319
|
[2] |
MANCHON
|
|
| 29. |
110411-00221
|
[1] |
SUPPORT
|
|
| 30. |
120705-00703
|
[3] |
VIS
|
|
| 31. |
110949-00647
|
[3] |
MANCHON
|
|
| 32. |
430221-00586
|
[1] |
BOUCHON
|
|
| 33. |
120808-00541
|
[1] |
RON DE LLE
|
|
| 34. |
430208-00232
|
[1] |
|
|
| 36. |
120808-00541
|
[1] |
RON DE LLE
|
|
| 9. |
150117-00039
|
[6] |
CHEMISE DE CYLINDRE
|
|
