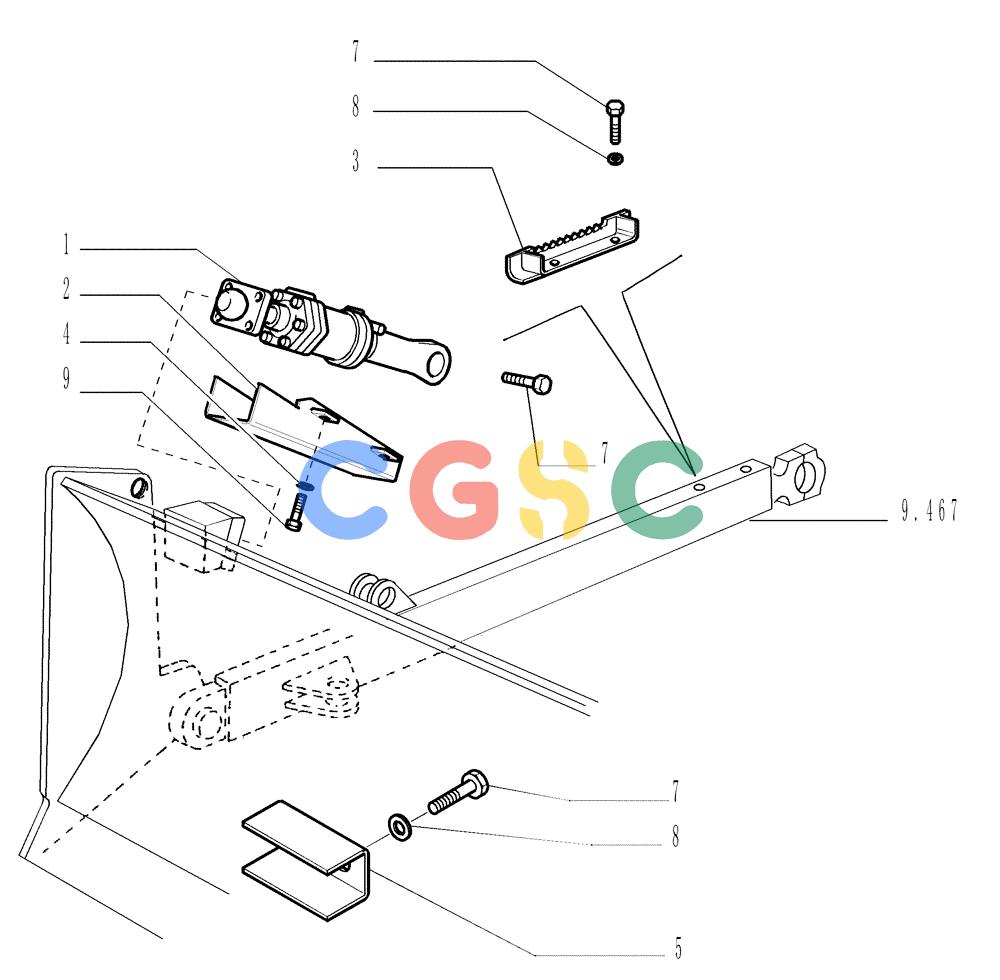

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.470[01]) - TILT CYLINDER - OPTIONAL CODE 76066231 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041029 | [1] | OPERATING CYLINDER,Double Acting, 63mm Rod, 140mm Stroke | LEC- ASSY SEE TAV.3 |
| 2. | 76068479 | [1] | GUARD | LEC |
| 3. | 79089245 | [2] | FOOTREST | LEC Superseded by part number: 76089488 |
| 4. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 5. | 76066188 | [1] | GUARD | LEC |
| 7. | 11112431 | [10] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 8. | 12648531 | [18] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 9. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
