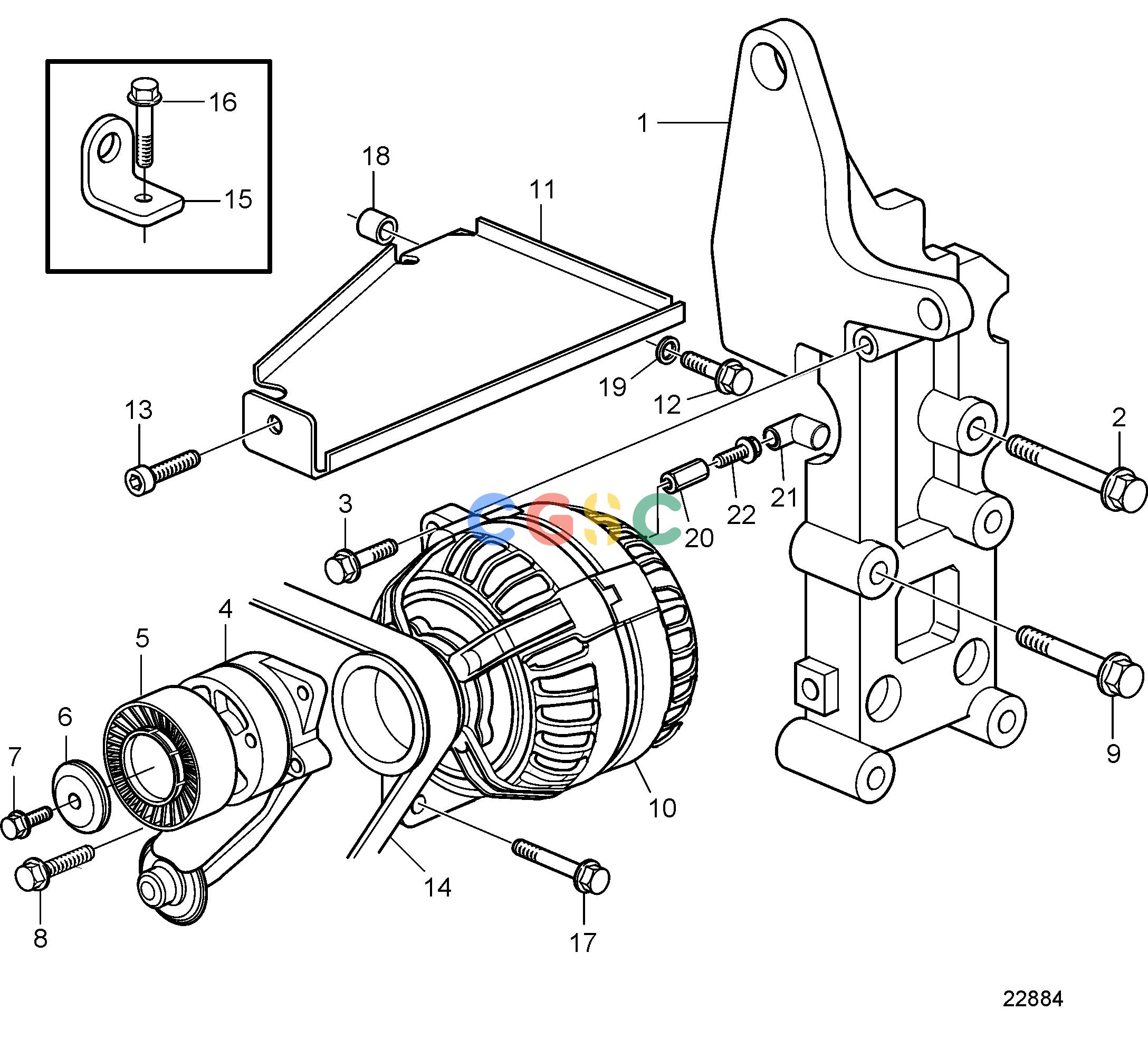

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Electrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30757168
|
[1] |
Bracket
|
(8642196)
|
| 2. |
965182
|
[2] |
Flange screw
|
M8x80mm
|
| 3. |
965180
|
[1] |
Flange screw
|
M8x60mm
|
| 4. |
30757056
|
[1] |
Belt tensioner
|
(30637961), Replaced by 31251252
|
| 4. |
31251252
|
[1] |
Belt tensioner
|
|
| 5. |
30637962
|
[1] |
Idler pulley
|
(30729939)
|
| 6. |
8653140
|
[1] |
Cover
|
|
| 7. |
987484
|
[1] |
Flange screw
|
|
| 8. |
985463
|
[3] |
Flange screw
|
M8x35mm
|
| 9. |
985463
|
[1] |
Flange screw
|
M8x35mm
|
| 10. |
3803645
|
[1] |
Alternator, exch
|
12V, 140A
|
| 11. |
3584444
|
[1] |
Protecting plate
|
|
| 12. |
968842
|
[1] |
Flange screw
|
M8x110mm
|
| 13. |
959223
|
[1] |
Hex. socket screw
|
|
| 14. |
30731809
|
[1] |
Drive belt
|
(8627228)
|
| 15. |
3840565
|
[1] |
Lifting eye, rear
|
|
| 16. |
965188
|
[1] |
Flange screw
|
|
| 17. |
947760
|
[2] |
Flange screw
|
M8x40mm
|
| 18. |
826652
|
[1] |
Spacer sleeve
|
|
| 19. |
980935
|
[1] |
Spacer sleeve
|
|
| 20. |
855314
|
[1] |
Spacer nut
|
|
| 21. |
855798
|
[1] |
Protecting sleeve
|
|
| 22. |
947107
|
[1] |
Flange screw
|
M8x12mm
|
