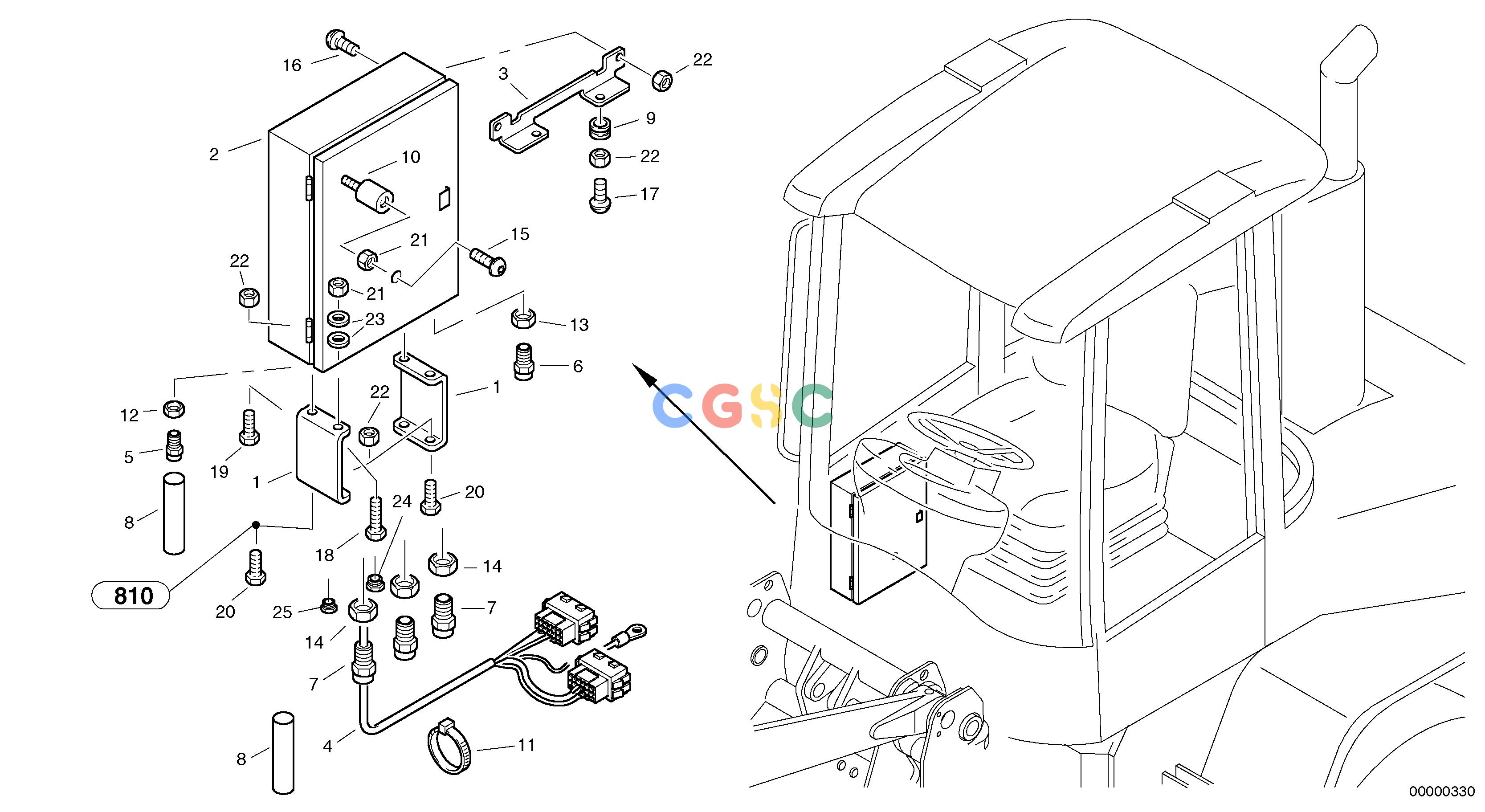

沃尔沃零件查询L40 Option - Salt de-icer applicationTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813661
|
[2] |
Bracket
|
|
| 10. |
VOE15223538
|
[1] |
Rubber Damper
|
|
| 11. |
ZM4375500
|
[10] |
Cable clamp
|
|
| 12. |
ZM2813739
|
[1] |
Nut
|
|
| 13. |
ZM2813740
|
[2] |
Nut
|
|
| 14. |
ZM2813741
|
[3] |
Nut
|
|
| 15. |
ZM2804624
|
[1] |
Screw
|
M6x20
|
| 16. |
ZM4331102
|
[2] |
Screw
|
|
| 17. |
ZM2800708
|
[2] |
Screw
|
|
| 18. |
ZM7095068
|
[1] |
Screw
|
M6x25
|
| 19. |
ZM8095500
|
[3] |
Screw
|
M8x12
|
| 2. |
ZM2814101
|
[1] |
Box
|
|
| 20. |
ZM7095370
|
[4] |
Screw
|
M8x16
|
| 21. |
ZM7098000
|
[5] |
Nut
|
M6
|
| 22. |
ZM7098010
|
[11] |
Nut
|
M8
|
| 23. |
ZM4333068
|
[2] |
Washer
|
|
| 3. |
ZM2813951
|
[1] |
Bracket
|
|
| 4. |
ZM2814103
|
[1] |
Wire Assembly
|
|
| 5. |
ZM2810496
|
[1] |
Connector
|
|
| 6. |
ZM2810497
|
[2] |
Connector
|
|
| 7. |
ZM2810498
|
[3] |
Connector
|
|
| 8. |
ZM2810499
|
[1] |
Protected hose
|
|
| 9. |
VOE11305425
|
[2] |
Grommet
|
|
