沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Electrical SystemControl Panel, EVC-BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
468 次

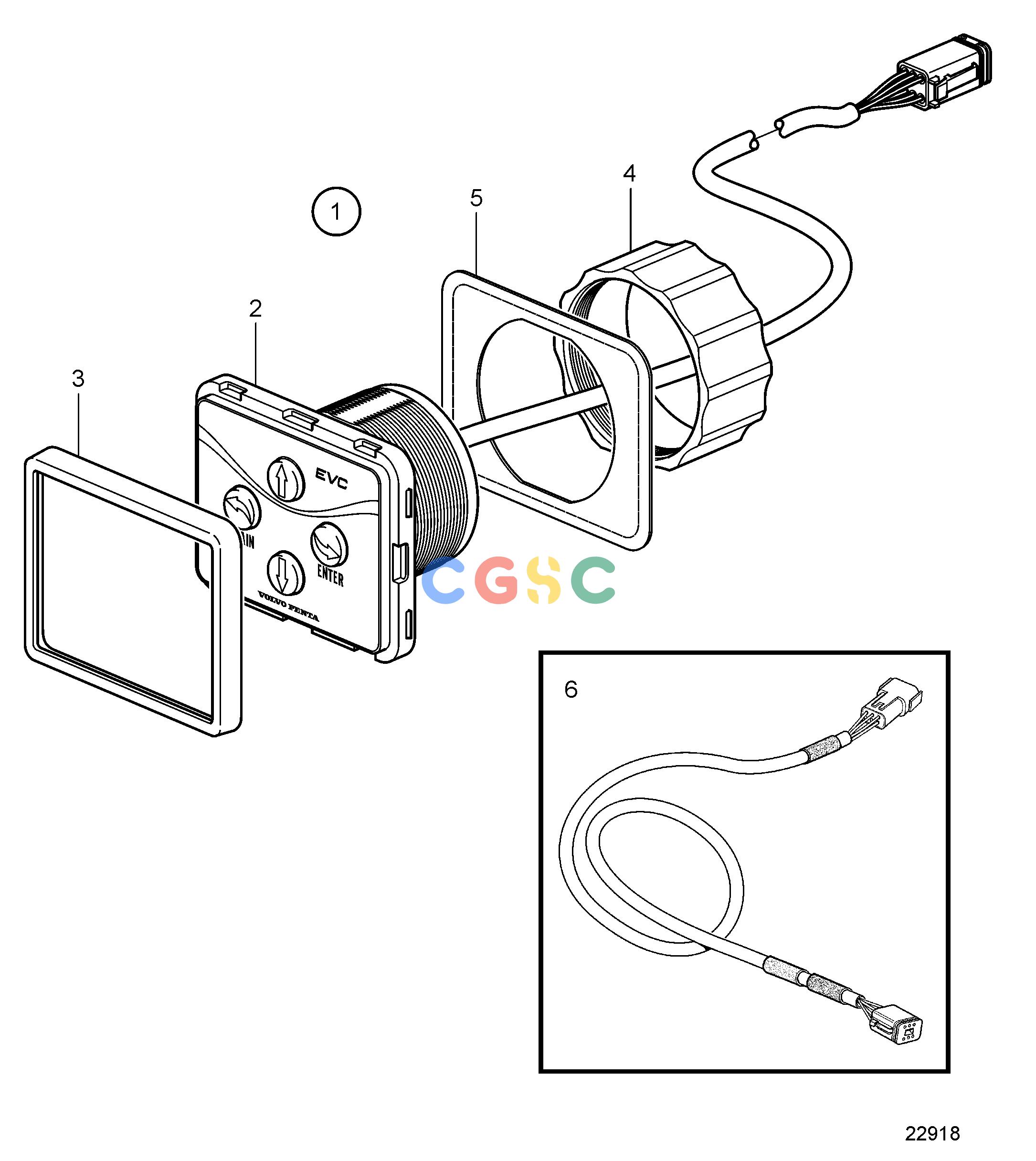

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3807317
|
[1] |
Control panel
|
|
| 2. |
|
|
|
|
| 3. |
3808131
|
[1] |
Frame
|
|
| 4. |
3808134
|
[1] |
Nut
|
|
| 5. |
3808135
|
[1] |
Gasket
|
|
| 6. |
3842733
|
[1] |
Extension cable
|
L=3.0m
|
| 6. |
3842734
|
[1] |
Extension cable
|
L=5.0m
|
| 6. |
3842735
|
[1] |
Extension cable
|
L=7,0m
|
| 6. |
3842736
|
[1] |
Extension cable
|
L=9.0m
|
| 6. |
3842737
|
[1] |
Extension cable
|
L=11,0m
|
