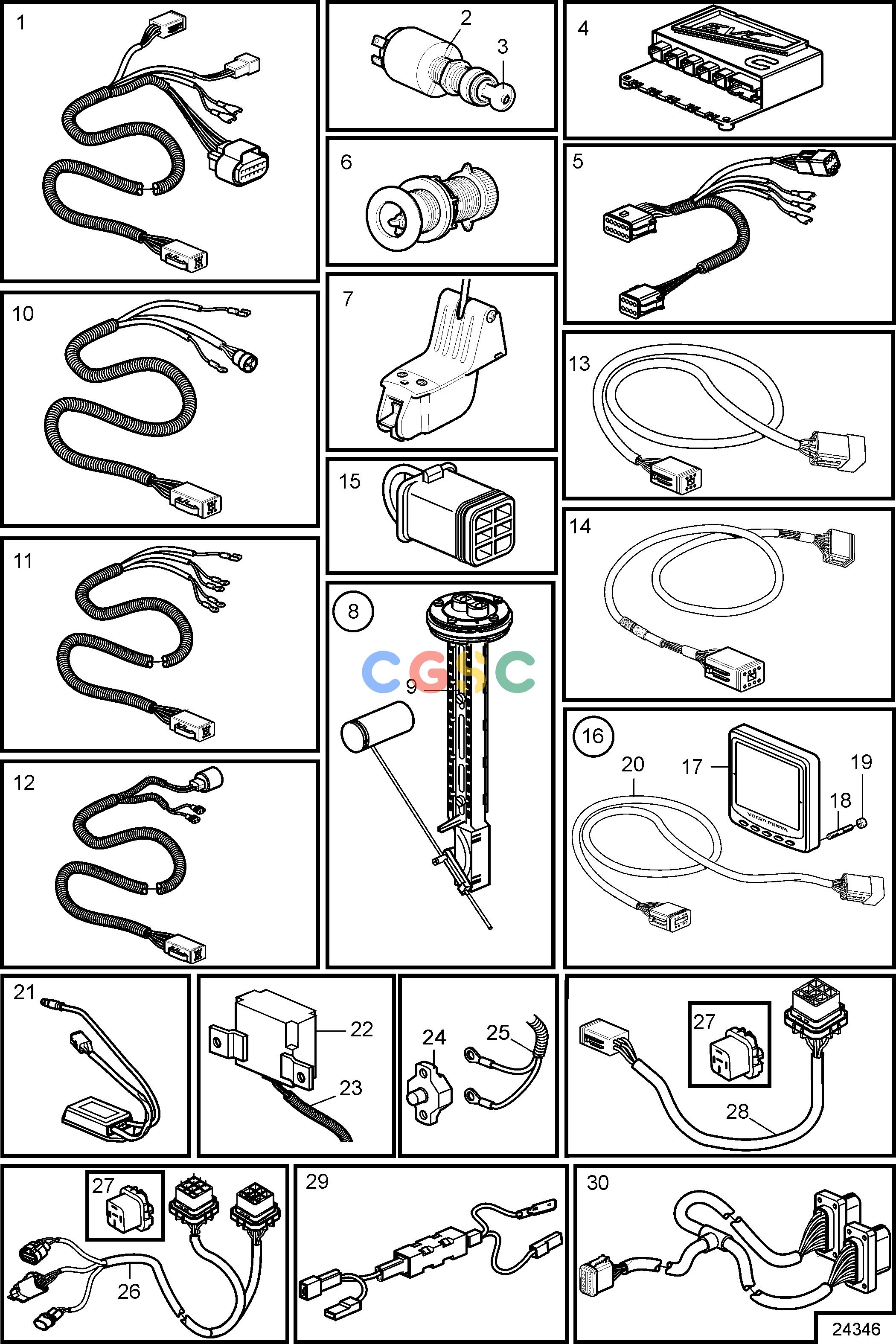

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Electrical SystemControl Unit and Cables, EVC-CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
881801
|
[1] |
Wiring harness
|
Included in EVC cable kit 3587052., L=2,0m
|
| 2. |
3587071
|
[1] |
Starter switch
|
|
| 2. |
3587070
|
[1] |
Starter switch
|
Kit with 2 key switch with identical key.
|
| 3. |
859953
|
[1] |
Key
|
State key code when ordering
|
| 4. |
21339317
|
[1] |
Control unit
|
|
| 4. |
3589927
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 4. |
3589926
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 5. |
21207240
|
[1] |
Wiring harness
|
ECU to engine
|
| 6. |
3587054
|
[1] |
Sensor
|
Through hull
|
| 7. |
3587055
|
[1] |
Sensor
|
Mounted on transom
|
| 8. |
874840
|
[1] |
Sensor
|
|
| 9. |
873772
|
[1] |
Tank sensor
|
|
| 10. |
3807228
|
[1] |
Wiring harness
|
For trim instrument and instrument light, L=0,5m
|
| 11. |
3807229
|
[1] |
Wiring harness
|
For fuel level sender, L=5.0m
|
| 12. |
3885806
|
[1] |
Wiring harness
|
For trim pump and trim sender, Included in EVC cable kit 3587052., L=5.0m
|
| 13. |
3842733
|
[1] |
Extension cable
|
L=3.0m, 6-Way
|
| 13. |
3842734
|
[1] |
Extension cable
|
L=5.0m, 6-Way
|
| 13. |
3842735
|
[1] |
Extension cable
|
L=7,0m, 6-Way
|
| 13. |
3842736
|
[1] |
Extension cable
|
L=9.0m, 6-Way
|
| 13. |
3842737
|
[1] |
Extension cable
|
L=11,0m, 6-Way
|
| 14. |
888248
|
[1] |
Extension cable
|
Multilink, L=3,0m, 8-Way.
|
| 14. |
888249
|
[1] |
Extension cable
|
L=5.0m, 8-Way.
|
| 14. |
888250
|
[1] |
Extension cable
|
L=7,0m, 8-Way.
|
| 14. |
888251
|
[1] |
Extension cable
|
L=9.0m, 8-Way.
|
| 14. |
888253
|
[1] |
Extension cable
|
L=11,00m, 8-Way.
|
| 15. |
3840433
|
[1] |
Sealing plug
|
Plug for connection in HIU when reverse gear is used.
|
| 16. |
3884818
|
[1] |
Display, kit
|
Replaced by 3849972
|
| 16. |
3849972
|
[1] |
Display
|
Replaced by 3595108
|
| 16. |
3595108
|
[1] |
Display
|
Replaced by 21173162
|
| 16. |
21173162
|
[1] |
Display
|
|
| 17. |
|
|
|
|
| 18. |
830928
|
[4] |
Stud
|
|
| 19. |
830930
|
[4] |
Wing nut
|
|
| 20. |
3588207
|
[1] |
Cable kit
|
|
| 21. |
3848966
|
[1] |
Control unit
|
|
| 22. |
873112
|
[1] |
Position sensor
|
SOLAS
|
| 23. |
3594603
|
[1] |
Wiring harness
|
SOLAS
|
| 24. |
856337
|
[1] |
Automatic fuse
|
50A, SOLAS
|
| 25. |
3594644
|
[1] |
Wiring harness
|
SOLAS
|
| 26. |
3885810
|
[1] |
Wiring harness
|
For trim pump control
|
| 27. |
873765
|
[1] |
Relay
|
|
| 28. |
21427463
|
[1] |
Cable
|
For multilink aux-relay
|
| 29. |
21371661
|
[1] |
Cable kit
|
Diode kit
|
| 30. |
21755546
|
[1] |
Cable
|
|
