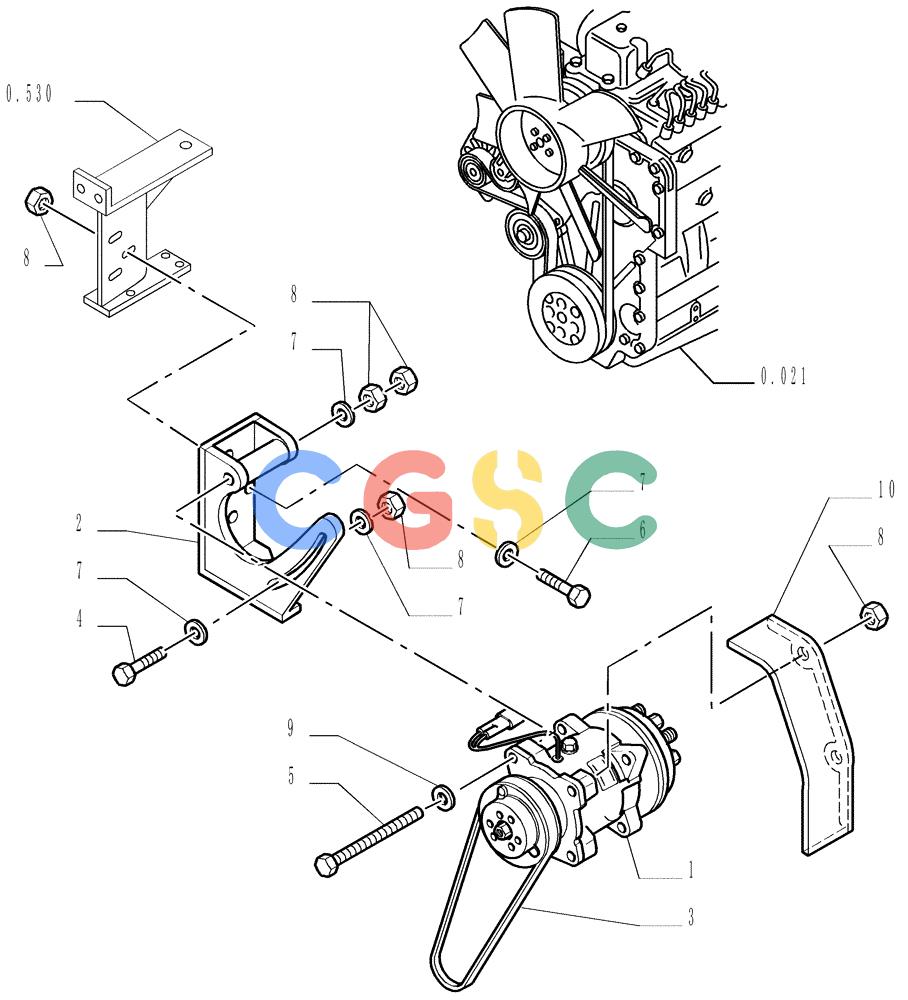

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.665[01]) - AIR CONDITIONING - COMPRESSOR - OPTIONAL CODE 76054951 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
493 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76047005 | [1] | AIRCOND. COMPRESSOR | LEC |
| . . | 76047005R | [1] | REMAN-COMPRESSOR | LECDC150LT (6/00-) |
| . . | 76047005C | [1] | CORE-COMPRESSOR | LECReturn Number |
| 2. | 76044830 | [1] | SUPPORT | LEC- COMPRESSOR |
| 3. | 76072321 | [1] | BELT,1168.00 mm L | LEC |
| 4. | 11107231 | [1] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 5. | 11108831 | [1] | BOLT,Hex, M10 x 130mm, Cl 10.9 | LEC Superseded by part number: 84577051 |
| 6. | 11106031 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 7. | 14496631 | [5] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 8. | 12577221 | [6] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LEC |
| 9. | 12626231 | [1] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 10. | 76053384 | [1] | GUARD | LEC- COMPRESSOR |
