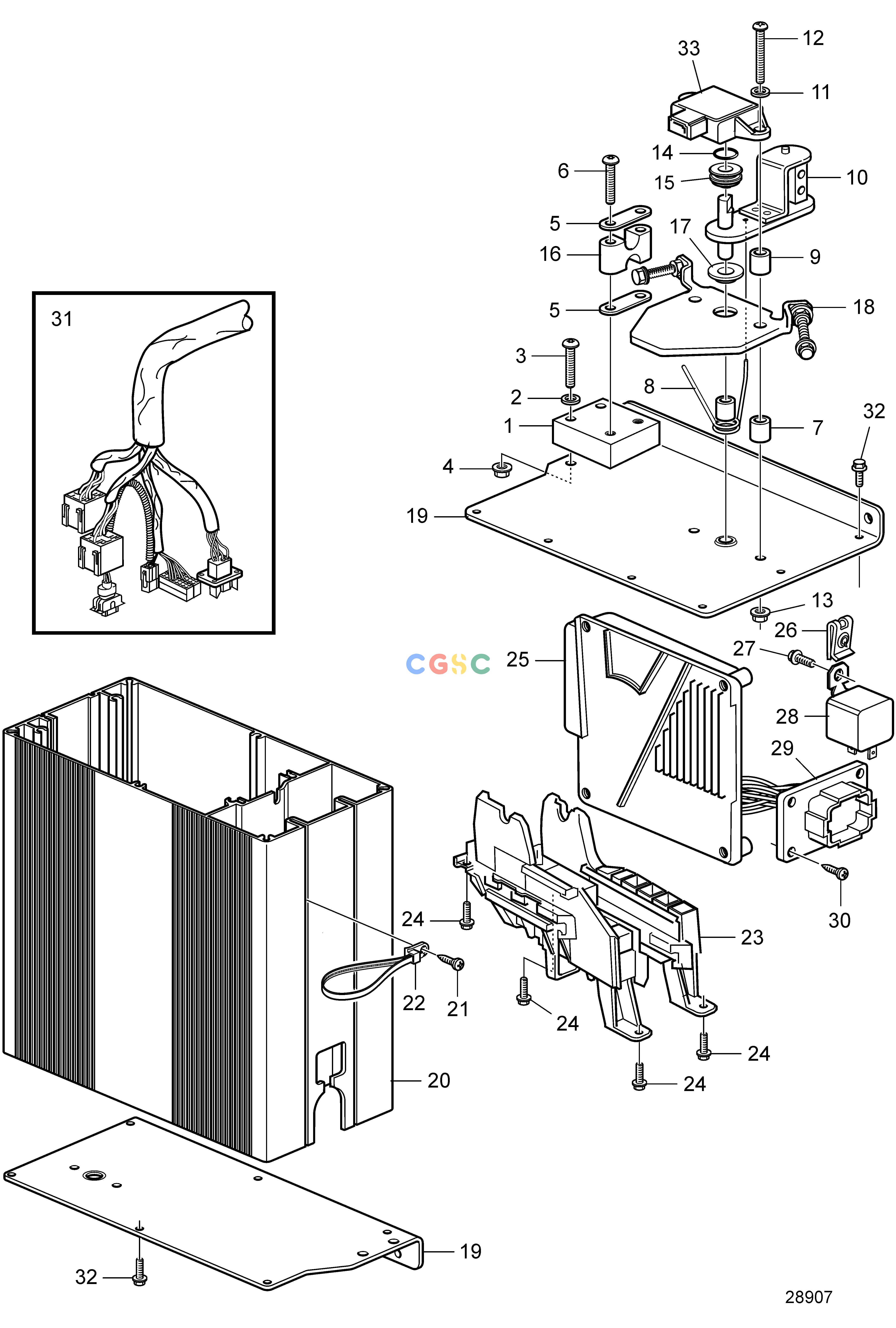

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Electrical SystemElectrical Box, Dual StationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
187 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3819195
|
[1] |
Bracket
|
|
| 2. |
940090
|
[2] |
Washer
|
|
| 3. |
969439
|
[2] |
Six point socket scr
|
|
| 4. |
949874
|
[2] |
Flange lock nut
|
|
| 5. |
819068
|
[2] |
Washer
|
|
| 6. |
969439
|
[2] |
Six point socket scr
|
|
| 7. |
847150
|
[3] |
Spacer sleeve
|
|
| 8. |
3883921
|
[1] |
Spring
|
|
| 9. |
|
|
|
|
| 10. |
3812728
|
[1] |
Intermediate lever
|
|
| 11. |
940090
|
[2] |
Washer
|
|
| 12. |
969440
|
[2] |
Six point socket scr
|
|
| 13. |
949874
|
[2] |
Flange lock nut
|
|
| 14. |
943342
|
[1] |
Sealing ring
|
|
| 15. |
3829681
|
[1] |
Washer
|
|
| 16. |
872074
|
[1] |
Retainer
|
|
| 17. |
3829680
|
[1] |
Bushing
|
|
| 18. |
947542
|
[2] |
Flange screw
|
|
| 19. |
3807834
|
[2] |
Cap
|
|
| 20. |
3807556
|
[1] |
Box frame
|
|
| 21. |
969456
|
[1] |
Six point socket scr
|
|
| 22. |
949666
|
[1] |
Cable tie
|
|
| 23. |
3807843
|
[1] |
Bracket
|
|
| 24. |
947493
|
[6] |
Flange screw
|
|
| 25. |
3586930
|
[1] |
Control unit
|
|
| 25. |
3586269
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 25. |
3586268
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 26. |
191391
|
[2] |
Spring nut
|
|
| 27. |
947493
|
[1] |
Flange screw
|
|
| 28. |
873740
|
[2] |
Relay
|
|
| 29. |
3807365
|
[1] |
Cable kit
|
|
| 30. |
969456
|
[4] |
Six point socket scr
|
|
| 31. |
3807365
|
[1] |
Cable kit
|
|
| 32. |
947493
|
[11] |
Flange screw
|
|
| 33. |
1336385
|
[1] |
Potentiometer
|
|
