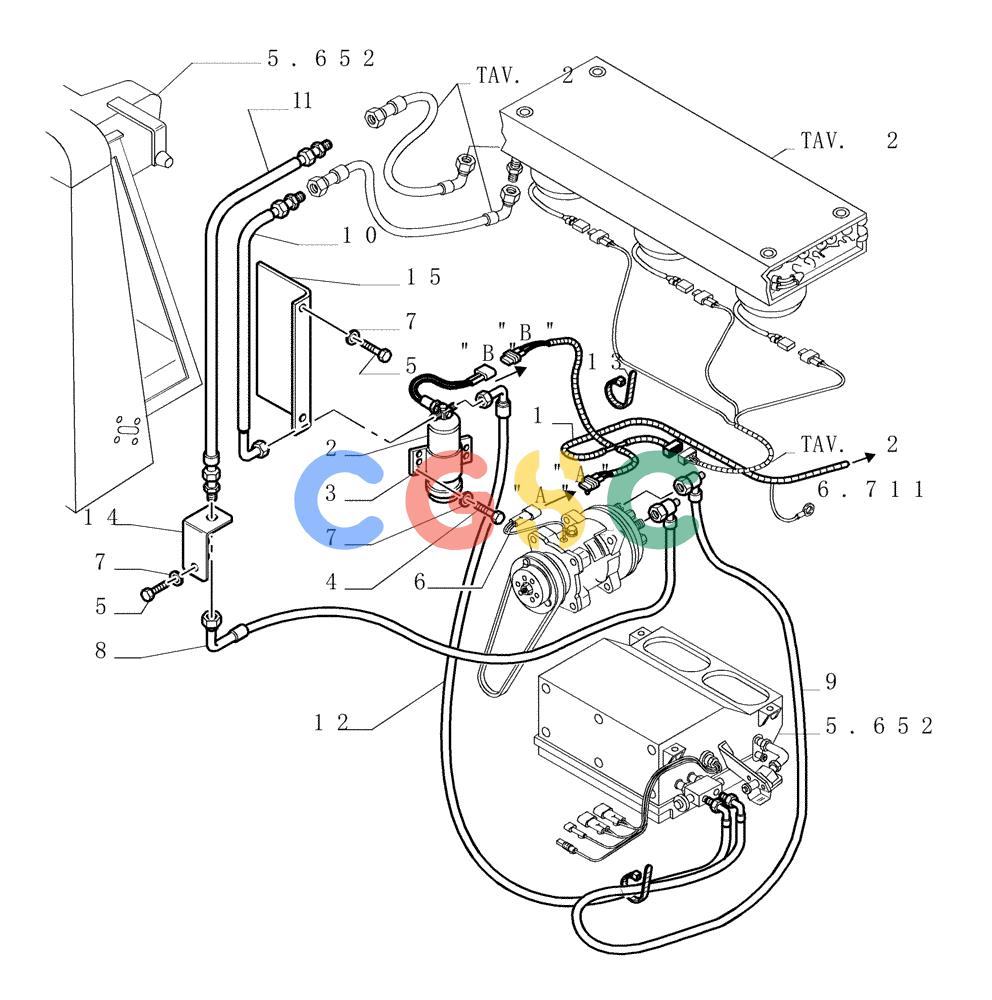

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.665[03]) - AIR CONDITIONING - PIPING - OPTIONAL CODE 76054951 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76080821 | [1] | WIRE HARNESS | LEC- AIR CONDITIONING Superseded by part number: 76048018 |
| 2. | 76035687 | [1] | RECEIVER-DRIER | LEC- ASSY - SEE TAV.6 |
| 3. | 79092065 | [1] | BRACKET | LEC |
| 4. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 5. | 16043431 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 6. | 76066222 | [1] | WIRE HARNESS | LEC |
| 7. | 14496531 | [5] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 8. | 76052510 | [1] | HYDRAULIC HOSE | LEC |
| 9. | 76068166 | [1] | HOSE | LEC |
| 10. | 76067368 | [1] | RIGID TUBE | LEC |
| 11. | 76067369 | [1] | RIGID TUBE | LEC |
| 12. | 76067370 | [1] | HOSE | LECIncludes (2) 128483A1 O-Rings |
| 13. | 4982514 | [10] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 14. | 76067371 | [1] | BRACKET | LEC |
| 15. | 76067382 | [1] | SHIELD | LEC |
