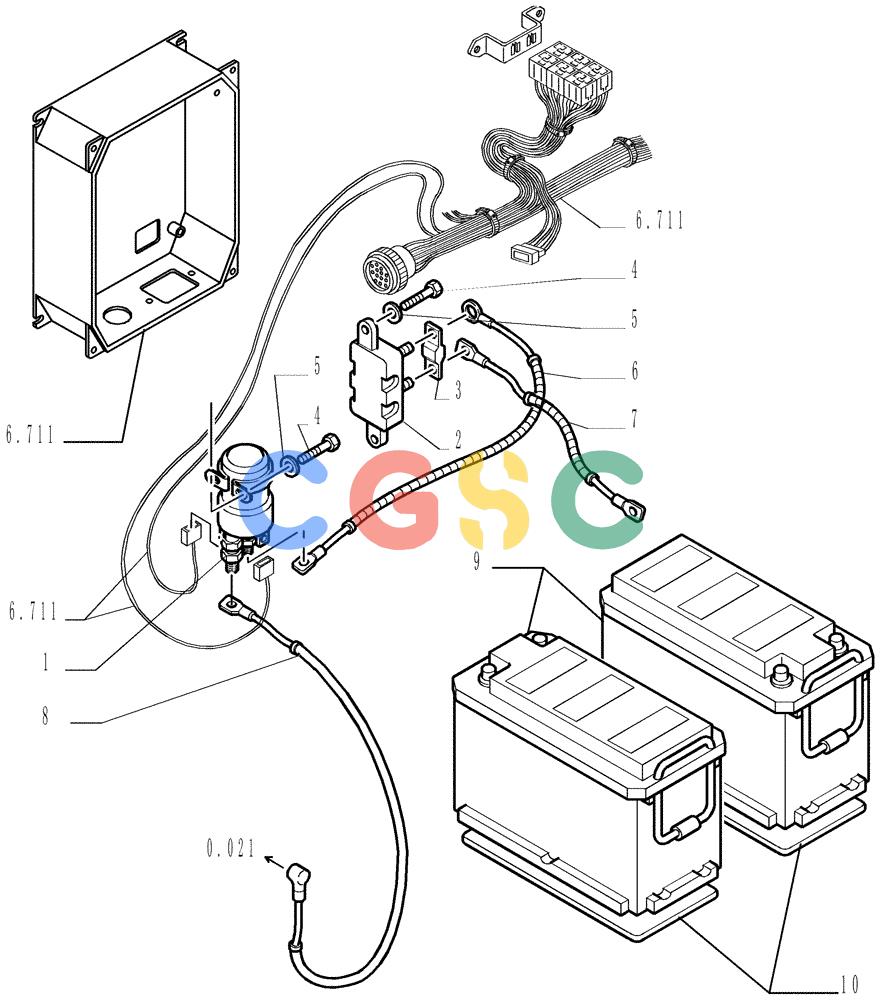

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.710[01]) - COLD WEATHER STARTING AID - OPTIONAL CODE 76054949 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79060328 | [1] | RELAY | LEC- SAFETY |
| 2. | 76046237 | [1] | FUSE BOX | LEC Superseded by part number: 87302554 |
| 3. | 76046236 | [1] | FUSE | LEC200A |
| 4. | 10977531 | [4] | BOLT,Hex, M5 x 10mm, Cl 10.9, Full Thd | LEC |
| 5. | 14496329 | [4] | WASHER,M5.3 x 10 x 1 Thk | LEC |
| 6. | 76048035 | [1] | WIRE HARNESS | LEC- FUSE-RELAY |
| 7. | 76066355 | [1] | ELECTRIC CABLE | TOR- BATTERIES/FUSE-LINK |
| 8. | 76048036 | [1] | WIRE HARNESS | LEC- RELAY-RESISTANCE |
| 9. | 71421589 | [2] | DRY BATTERY | LEC12V - 160AH - 650A 12V-650A Superseded by part number: 73325166 |
| 10. | 79010787 | [2] | PLATE | LEC |
