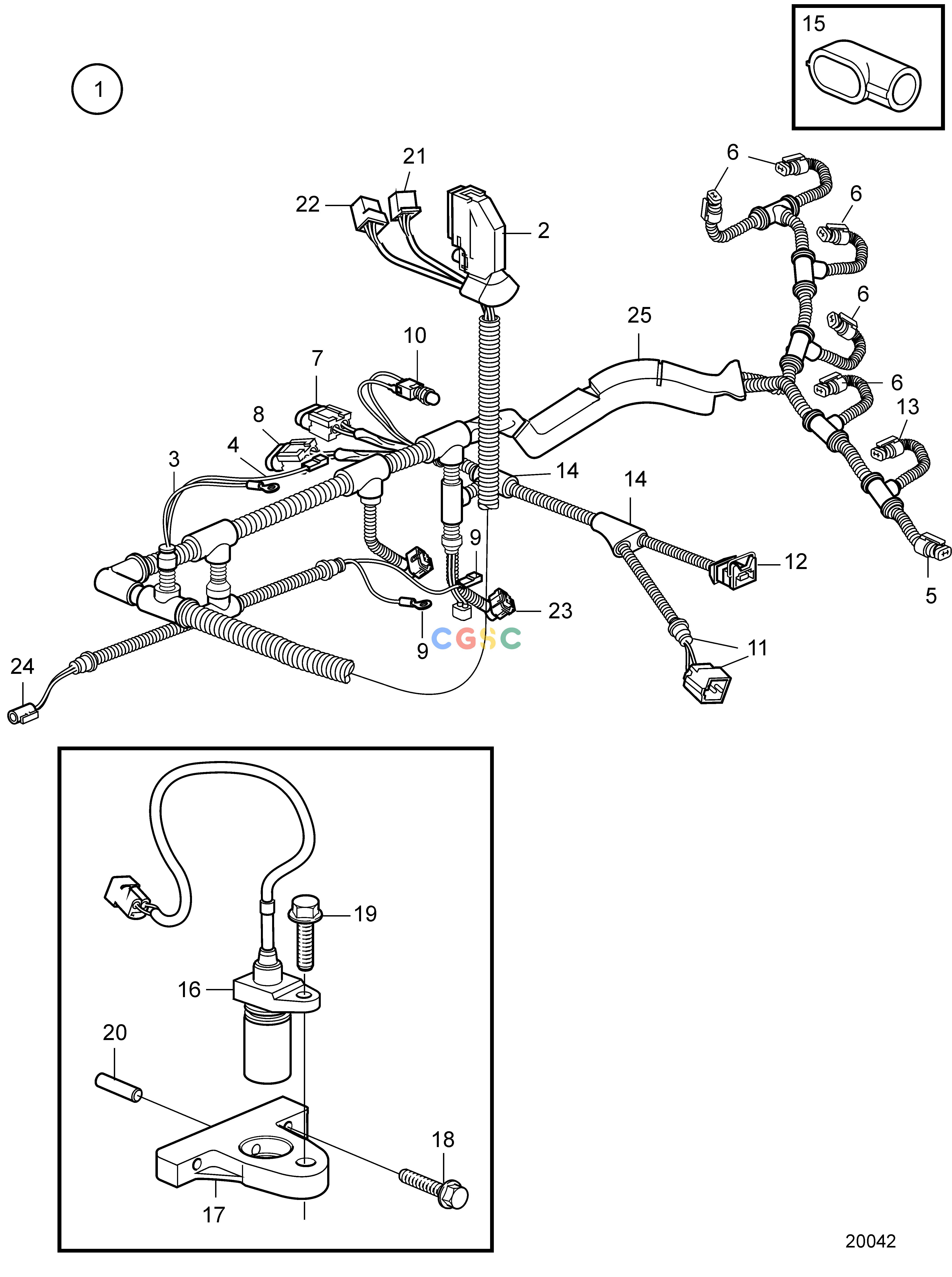

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Electrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
881978
|
[1] |
Wiring harness
|
|
| 2. |
9187012
|
[1] |
Clip
|
|
| 3. |
970798
|
[1] |
Cable terminal, alternator
|
|
| 4. |
949597
|
[1] |
Housing, alternator
|
|
| 4. |
973121
|
[1] |
Cable terminal, alternator
|
|
| 5. |
888693
|
[1] |
Adapter, fuel pump
|
|
| 6. |
888690
|
[5] |
Adapter, fuel injector
|
|
| 7. |
|
|
|
|
| 7. |
874220
|
[1] |
Cable terminal
|
|
| 7. |
873854
|
[1] |
Sealing sleeve
|
|
| 7. |
978999
|
[1] |
Fuse
|
|
| 8. |
|
|
|
|
| 8. |
874220
|
[1] |
Cable terminal
|
|
| 8. |
873854
|
[1] |
Sealing sleeve
|
|
| 8. |
978999
|
[1] |
Fuse
|
|
| 9. |
881484
|
[1] |
Cable terminal, starter motor
|
|
| 9. |
970798
|
[1] |
Cable terminal, starter motor
|
|
| 10. |
873959
|
[1] |
Breaker, emerency stop
|
|
| 10. |
828586
|
[1] |
Nut, emerency stop
|
|
| 11. |
9168792
|
[1] |
Housing, rpm
|
|
| 11. |
11039397
|
[1] |
End sleeve, rpm
|
|
| 12. |
976256
|
[1] |
Housing
|
|
| 12. |
8142100
|
[1] |
Adapter
|
|
| 13. |
8622455
|
[1] |
Receptacle housing
|
For camshaft rpm
|
| 13. |
874652
|
[1] |
Adapter
|
|
| 14. |
|
|
|
|
| 15. |
888697
|
[1] |
Adapter
|
|
| 16. |
1275599
|
[1] |
Sensor
|
|
| 17. |
1275789
|
[1] |
Bracket
|
|
| 18. |
975880
|
[2] |
Flange screw
|
|
| 19. |
946544
|
[1] |
Flange screw
|
|
| 20. |
950562
|
[1] |
Pin
|
|
| 21. |
1212905
|
[1] |
Housing
|
Included in cable harness 881978
|
| 22. |
948856
|
[1] |
Housing
|
|
| 23. |
874529
|
[1] |
Adapter, charge air pressure/temp
|
|
| 23. |
9456341
|
[1] |
Receptacle housing, charge air pressure/temp
|
Included in cable harness 881978
|
| 24. |
1307035
|
[1] |
Housing, oil pressure
|
|
| 24. |
|
|
|
|
| 25. |
9452506
|
[1] |
Sleeve
|
|
