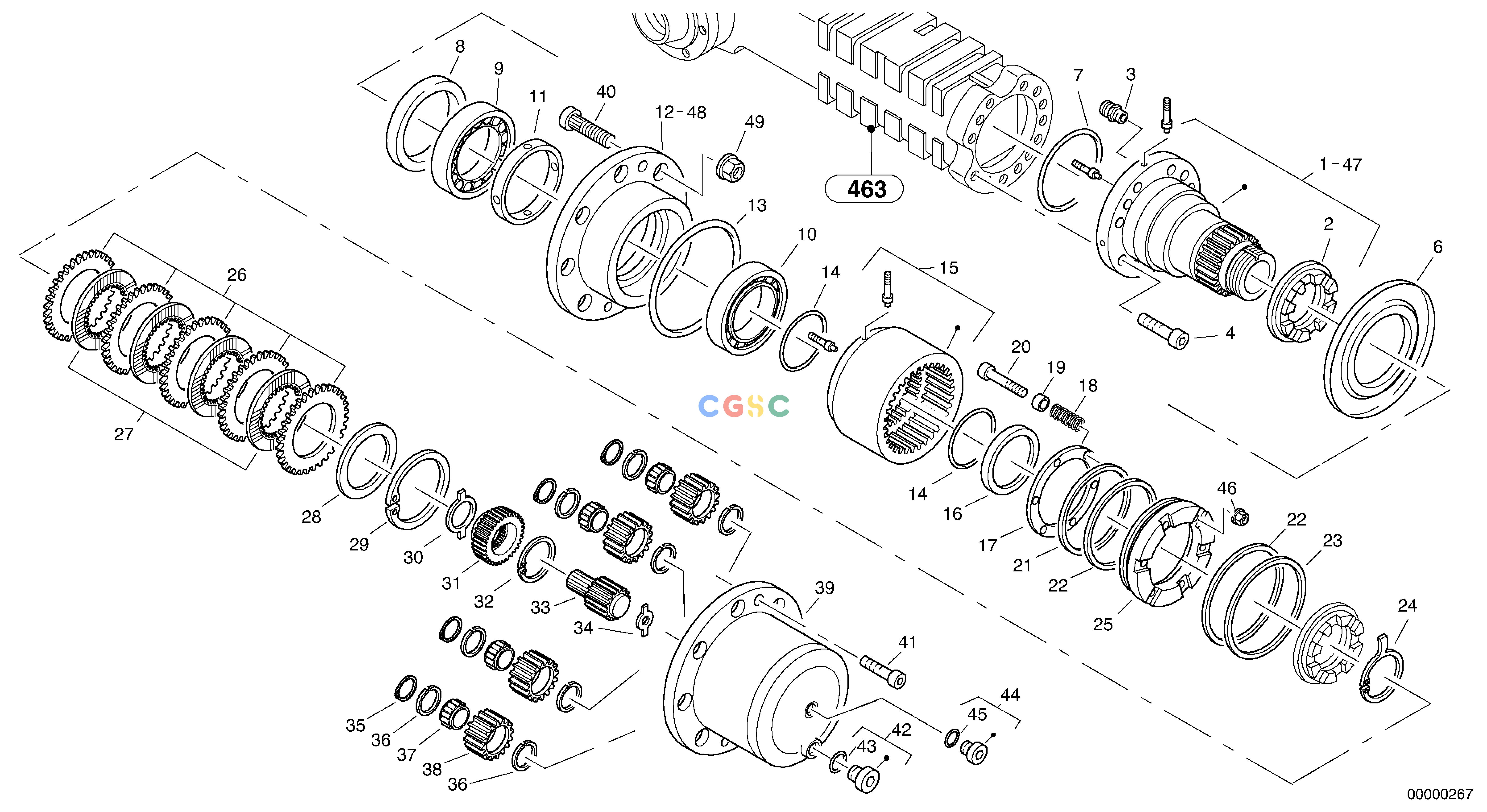

沃尔沃零件查询L40 Final drive - Portal-rear axleTYPE 191, 192 SER NO - 10001910001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11708785
|
[2] |
Hub retainer
|
|
| 10. |
VOE11704989
|
[2] |
Roller bearing
|
|
| 11. |
VOE11704988
|
[2] |
Spacer ring
|
14,00 mm
|
| 11. |
ZM5227728
|
[REQ] |
Spacer Ring
|
14,20 mm
|
| 11. |
ZM5227729
|
[REQ] |
Spacer Ring
|
14,40 mm
|
| 11. |
ZM2906422
|
[REQ] |
Spacer Ring
|
14,42 mm
|
| 11. |
ZM2906423
|
[REQ] |
Spacer Ring
|
14,45 mm
|
| 11. |
VOE11988229
|
[REQ] |
Spacer ring
|
14,48 mm
|
| 11. |
ZM2906425
|
[REQ] |
Ring
|
14,51 mm
|
| 11. |
ZM2906426
|
[REQ] |
Ring
|
14,54 mm
|
| 11. |
ZM5227730
|
[REQ] |
Ring
|
14,60 mm
|
| 2. |
VOE11705273
|
[1] |
Nut
|
|
| 11. |
ZM5227731
|
[REQ] |
Spacer Ring
|
14,80 mm
|
| 11. |
ZM5227732
|
[REQ] |
Spacer Ring
|
15,00 mm
|
| 11. |
VOE11704987
|
[REQ] |
Spacer ring
|
15,20 mm
|
| 12. |
VOE11706841
|
[2] |
Hub
|
|
| 13. |
VOE6213160
|
[2] |
O-ring
|
200x4
|
| 14. |
VOE11704992
|
[4] |
O-ring
|
98,5x3,5
|
| 15. |
VOE11710773
|
[2] |
Ring gear
|
|
| 16. |
VOE11704993
|
[2] |
Angle ring
|
|
| 17. |
VOE11705000
|
[2] |
Thrust washer
|
|
| 18. |
VOE11705003
|
[12] |
Compression spring
|
|
| 3. |
VOE11704984
|
[2] |
Valve
|
|
| 19. |
VOE11705004
|
[12] |
Washer
|
|
| 20. |
ZM2906461
|
[12] |
Screw
|
M6x40
|
| 21. |
ZM5240902
|
[2] |
Ring
|
|
| 22. |
VOE11704997
|
[4] |
Sealing ring
|
|
| 23. |
VOE11704999
|
[2] |
Back-up ring
|
|
| 24. |
VOE11704994
|
[2] |
Lock ring
|
|
| 25. |
VOE11704996
|
[2] |
Piston
|
|
| 26. |
VOE11705005
|
[10] |
Outer Disc
|
2,0 mm
|
| 26. |
VOE11705006
|
[REQ] |
Disc
|
2,5 mm
|
| 26. |
VOE11705007
|
[REQ] |
Outer Disc
|
3,0 mm
|
| 4. |
VOE974143
|
[36] |
Hex. socket screw
|
M16x65
|
| 27. |
VOE11705008
|
[8] |
Disc
|
|
| 28. |
VOE11705009
|
[2] |
Washer
|
|
| 29. |
VOE11705010
|
[2] |
Lock ring
|
|
| 30. |
VOE11705011
|
[2] |
Thrust washer
|
|
| 31. |
VOE11705280
|
[2] |
Drive plate
|
|
| 32. |
ZM2286125
|
[2] |
Ring
|
|
| 33. |
VOE11705279
|
[2] |
Sun gear
|
|
| 34. |
VOE6213176
|
[2] |
Thrust washer
|
1,5 mm
|
| 34. |
VOE6213177
|
[REQ] |
Thrust washer
|
2,0 mm
|
| 34. |
VOE6213178
|
[REQ] |
Thrust washer
|
2,5 mm
|
| 5. |
VOE11705275
|
[36] |
Washer
|
|
| 34. |
VOE6213179
|
[REQ] |
Thrust washer
|
3,0 mm
|
| 34. |
ZM2906435
|
[REQ] |
Washer
|
3,5 mm
|
| 34. |
ZM2906436
|
[REQ] |
Washer
|
4,0 mm
|
| 34. |
ZM2906437
|
[REQ] |
Washer
|
4,5 mm
|
| 34. |
ZM2906438
|
[REQ] |
Washer
|
5,0 mm
|
| 35. |
VOE13945498
|
[8] |
Snap ring
|
36x1,75
|
| 36. |
VOE11705031
|
[16] |
Angle ring
|
|
| 37. |
VOE11705030
|
[8] |
Roller bearing
|
|
| 38. |
ZM2906431
|
[8] |
Planetary Gear
|
|
| 39. |
VOE11711916
|
[2] |
Planet carrier
|
|
| 6. |
VOE11708924
|
[2] |
Support plate
|
|
| 40. |
ZM2906440
|
[16] |
Bolt
|
|
| 41. |
ZM7096577
|
[4] |
Shutter
|
M10x20
|
| 42. |
VOE11707621
|
[2] |
Plug
|
M36x1,5
|
| 43. |
VOE8550769
|
[1] |
O-ring
|
33x2
|
| 44. |
ZM8099406
|
[2] |
Screw
|
M16x1,5
|
| 45. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 46. |
ZM5227618
|
[12] |
Nut
|
M6
|
| 47. |
ZM5228494
|
[8] |
Plug
|
|
| 48. |
ZM5228495
|
[8] |
Plug
|
|
| 49. |
VOE17448487
|
[32] |
Wheel nut
|
A20
|
| 7. |
VOE11705276
|
[2] |
O-ring
|
140x3
|
| 8. |
VOE11714206
|
[2] |
Scraper
|
|
| 9. |
VOE11704986
|
[2] |
Roller bearing
|
|
