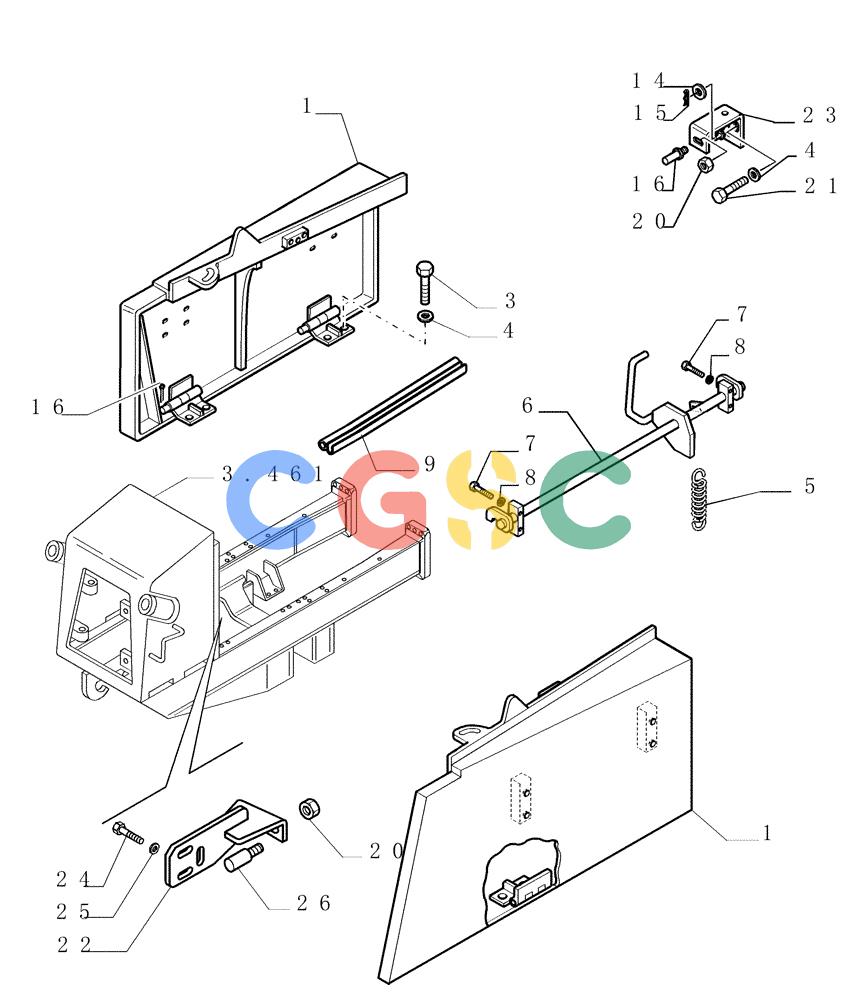

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (5.601[02]) - HOODS (Oct 6 2004 1:18PM) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
362 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76073404 | [1] | FRAME | TOR- ASSY LOWER LEFT |
| 1. | 76073405 | [1] | FRAME | TOR- ASSY LOWER RIGHT |
| 3. | 11112231 | [8] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 4. | 12648531 | [8] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 5. | 79093725 | [2] | SPRING | LEC |
| 6. | 76079338 | [1] | ROD | TOR- LEFT |
| 6. | 76079339 | [1] | ROD | TOR- RIGHT |
| 7. | 16043631 | [8] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 8. | 79109732 | [8] | WASHER,M12.5 x 43 x 3 Thk | LEC |
| 9. | 93201838 | [1] | SEAL | LEC |
| 14. | 14496531 | [10] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 15. | 10734301 | [4] | COTTER PIN,M2 x 18 | TTF Superseded by part number: 16854101 |
| 16. | 76073415 | [4] | PIN | LEC |
| 20. | 12577521 | [8] | NUT,M12 x 1.75 | LEC |
| 21. | 16043431 | [8] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 22. | 76073403 | [1] | SUPPORT | TOR- RIGHT |
| 22. | 76073402 | [1] | SUPPORT | TOR- LEFT |
| 23. | 76078431 | [2] | SUPPORT | LEC- REAR |
| 24. | 16043231 | [6] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 25. | 12645031 | [6] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 26. | 79092929 | [2] | PIN,12mm OD x 80mm L | LEC |
