沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Electrical SystemMounting Kit, Extra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
162 次

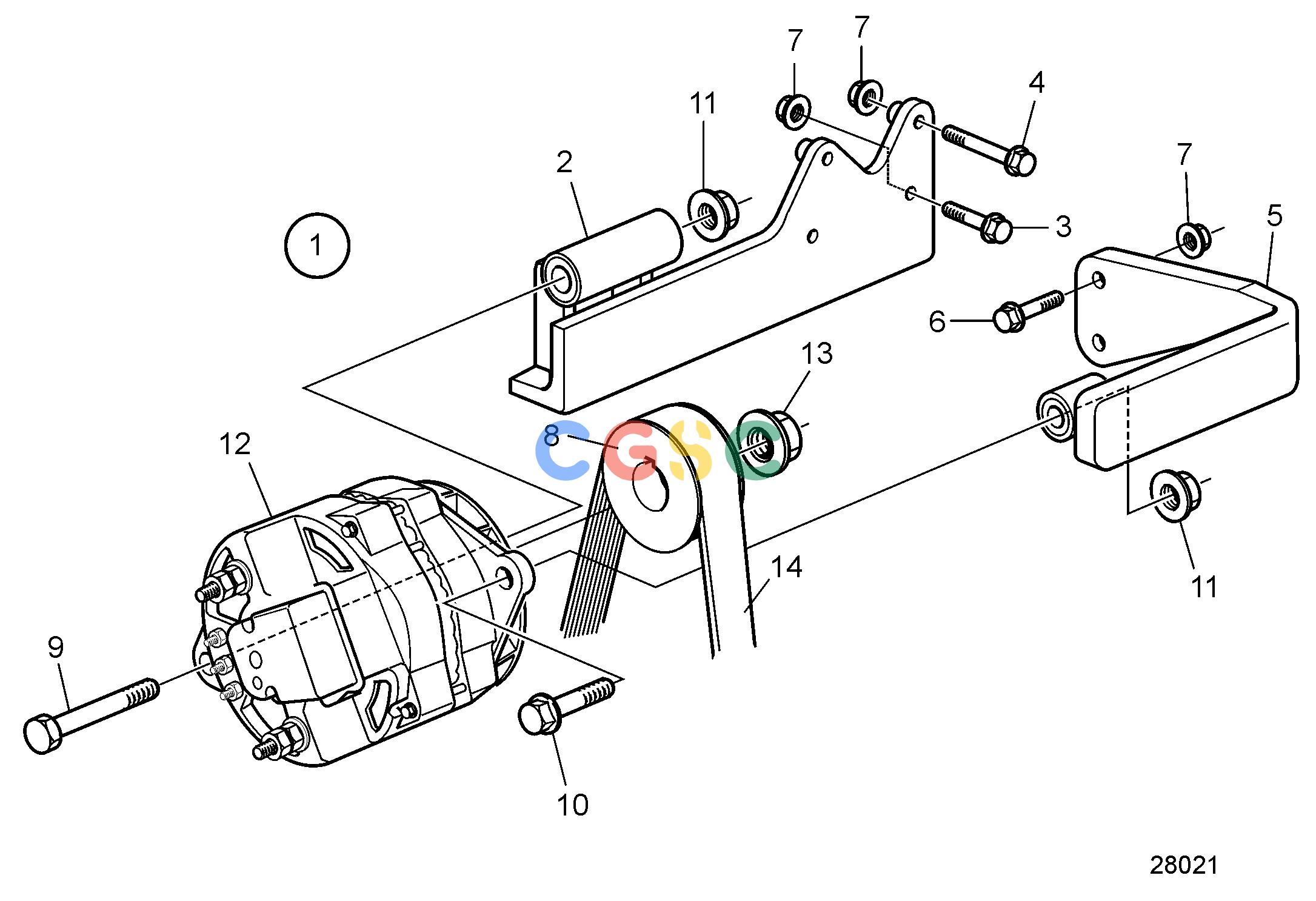

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21268949
|
[1] |
Alternator kit
|
|
| 2. |
21190567
|
[1] |
Bracket
|
|
| 3. |
993609
|
[2] |
Stud
|
L=50mm
|
| 4. |
993610
|
[2] |
Stud
|
L=90mm
|
| 5. |
21190799
|
[1] |
Bracket
|
|
| 6. |
948217
|
[2] |
Flange screw
|
L=45mm
|
| 7. |
996472
|
[6] |
Flange nut
|
|
| 8. |
3818325
|
[1] |
Pulley
|
|
| 9. |
978447
|
[1] |
Flange screw
|
L=150mm
|
| 10. |
965194
|
[1] |
Flange screw
|
L=60mm
|
| 11. |
971096
|
[2] |
Flange nut
|
M12x150mm
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
30731809
|
[1] |
Drive belt
|
|
