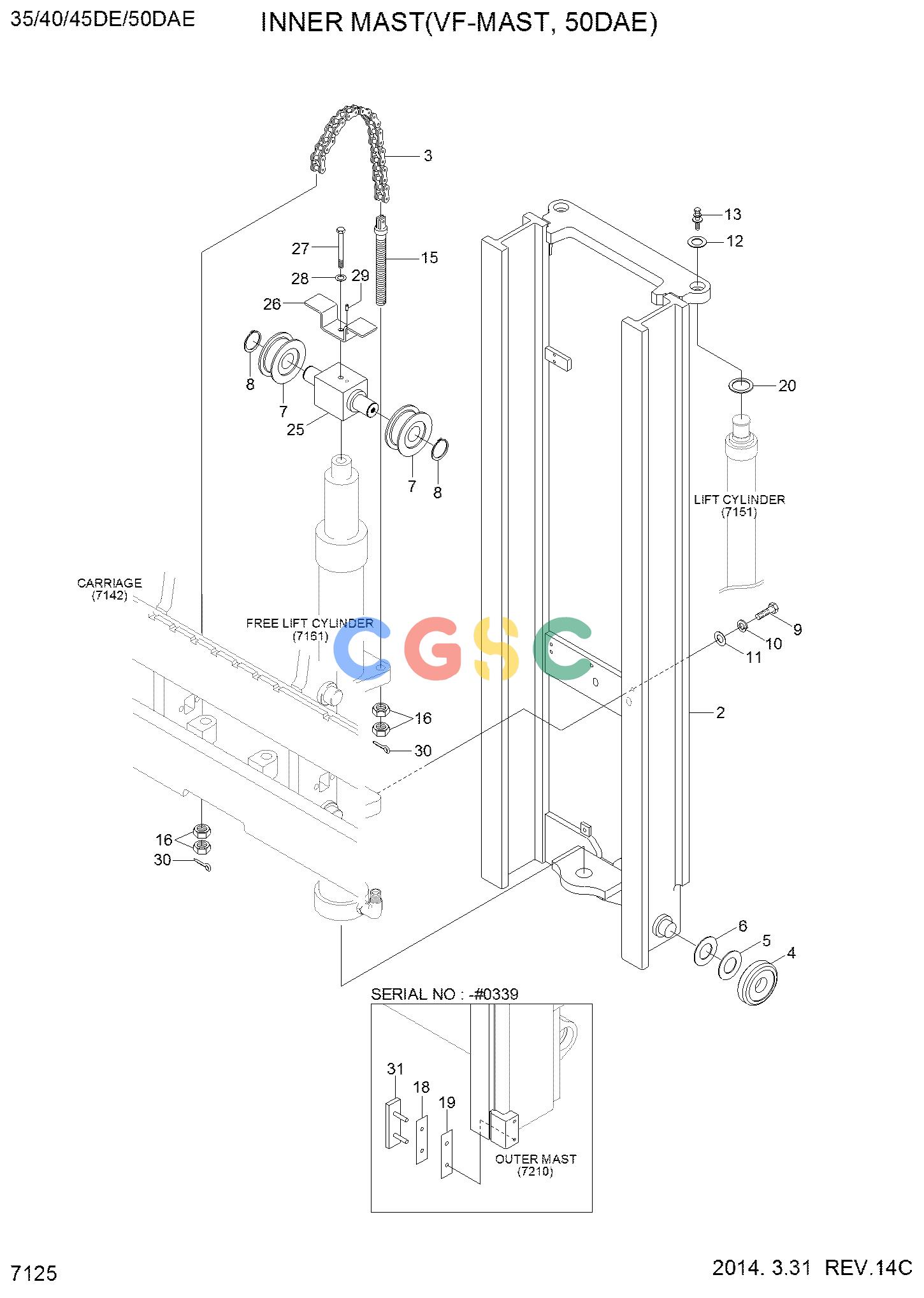

现代零件查询HBF20/25/30/32-7 INNER MASTEPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
V-MAST GROUP
|
|
| . |
@
|
[1] |
V-MAST GROUP
|
|
| . |
@
|
[1] |
V-MAST GROUP
|
|
| . |
@
|
[1] |
V-MAST GROUP
|
|
| 1. |
62HN-13011
|
[1] |
INNER MAST WA
|
|
| 1. |
62HN-13021
|
[1] |
INNER MAST WA
|
|
| 1. |
62HN-13031
|
[1] |
INNER MAST WA
|
|
| 3. |
8451806700
|
[2] |
CHAIN-LIFT
|
|
| 3. |
8451806700
|
[2] |
CHAIN-LIFT
|
|
| 3. |
8451806700
|
[2] |
CHAIN-LIFT
|
|
| 3-1. |
62FG-18900
|
[2] |
JOINT LINK KIT-CHAIN
|
|
| 3-1. |
62HA-18900
|
[2] |
JOINT LINK KIT-CHAIN
|
|
| 4. |
63HK-18100
|
[4] |
LOAD R/BRG ASSY(117.5)
|
|
| 5. |
6600187900
|
[4] |
SHIM(0.5T)
|
|
| 6. |
6600188000
|
[4] |
SHIM(1.0T)
|
|
| 7. |
63HK-18010
|
[2] |
LINER-BACK UP
|
|
| 8. |
FMD0000110
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMC0000160
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMD0000110
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMC0000160
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMD0000110
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMC0000160
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMD0000110
|
[2] |
SHIM(0.5T)
|
|
| 8. |
FMC0000160
|
[2] |
SHIM(0.5T)
|
|
| 9. |
FMC0000150
|
[2] |
SHIM(1.0T)
|
|
| 10. |
F12500390
|
[2] |
CHAIN SHEAVE BEARING
|
|
| 11. |
S601-040004
|
[2] |
RING-SNAP
|
|
| 12. |
61HA-18300
|
[2] |
BOLT-ANCHOR
|
|
| 12. |
61HA-18800
|
[2] |
BOLT-ANCHOR
|
|
| 13. |
61HA-18310
|
[2] |
BOLT-ANCHOR
|
|
| 13. |
61HA-18810
|
[2] |
BOLT-ANCHOR
|
|
| 14. |
S206-18100B
|
[8] |
NUT-HEX
|
|
| 15. |
S461-320252
|
[4] |
PIN-SPLIT
|
|
| 16. |
S111-120306
|
[2] |
SCREW-SET HEX SOCKET
|
|
| 17. |
S205-12100B
|
[2] |
NUT-HEX
|
|
| 18. |
S037-122056
|
[2] |
BOLT-W/WASHER
|
|
| 19. |
61FJ-18200
|
[2] |
U-BOLT
|
|
| 20. |
F12500590
|
[2] |
RUBBER
|
|
| 21. |
S471-500164
|
[2] |
PIN-SPRING
|
|
| 22. |
S651-810008
|
[2] |
NIPPLE-GREASE
|
|
| 23. |
FMC0000180
|
[2] |
BUSHING
|
|
| 24. |
63FG-18000
|
[1] |
BRACKET WA-SHEAVE
|
|
| 25. |
63FG-18100
|
[1] |
GUARD-CHAIN
|
|
| 26. |
S471-800162
|
[1] |
PIN-SPRING
|
|
| 27. |
S017-120506
|
[1] |
BOLT-HEX
|
|
| 28. |
S411-120006
|
[1] |
WASHER-SPRING
|
|
| 29. |
S017-140406
|
[2] |
BOLT-HEX
|
|
| 30. |
S411-140006
|
[2] |
WASHER-SPRING
|
|
| 31. |
S403-085002
|
[4] |
WASHER-PLAIN
|
|
| 32. |
S275-080002
|
[4] |
NUT-SELF LOCKING
|
|
| 33. |
61FG-18400
|
[2] |
SPACER
|
|
| 34. |
S403-141006
|
[2] |
WASHER-PLAIN
|
|
| 35. |
37B9AE2030
|
[2] |
SHIM(1.0T)
|
|
| 36. |
61FG-18300
|
[2] |
CLAMP-LIFT CYLINDER
|
|
| 37. |
S037-123522
|
[4] |
BOLT-W/WASHER
|
|
| 38. |
F12500530
|
[2] |
SHIM(1.0T)
|
|
| 39. |
F12500540
|
[2] |
SHIM(0.5T)
|
|
