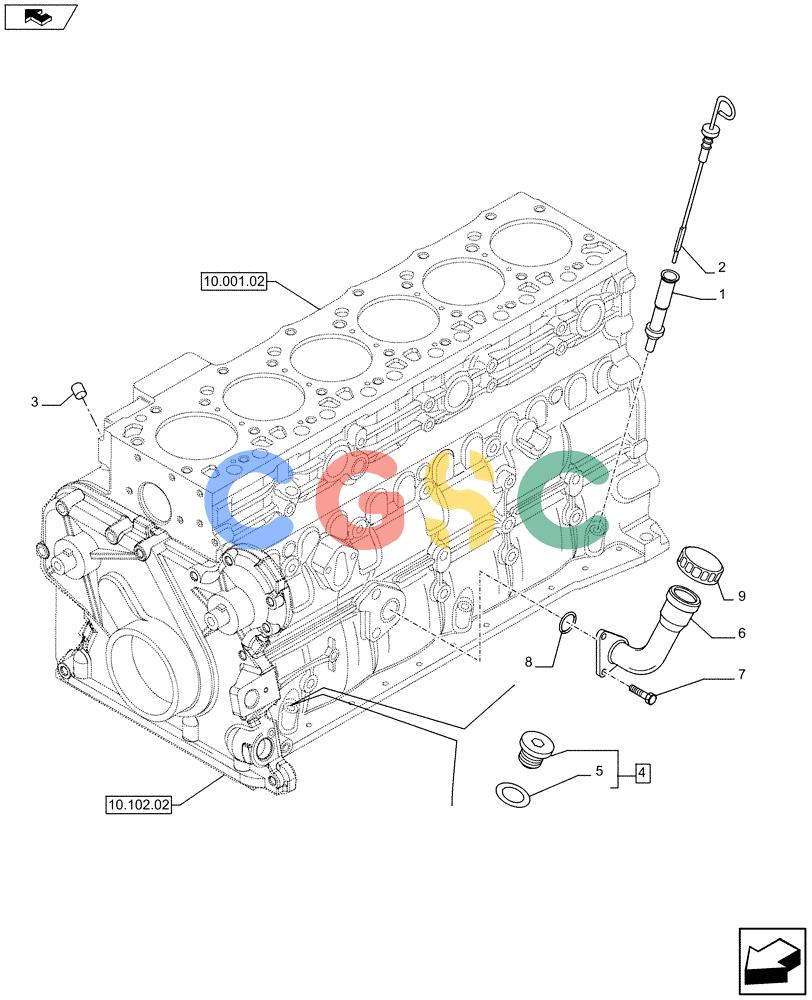

神钢零件查询(F4GE9684B J605) - ENGINE 5801385851 - 84369828 (1/13-) (10.304.01[01]) - ENGINE OIL DIPSTICK (504065470 - 504069234) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1013 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 4895406 | [3] | EXPANSION PLUG,9.8mm OD | TOR |
| 4. | 4897330 | [1] | HEX SOCKET PLUG,M12 x 1.5 | TOR- Assy |
| 5. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 7. | 2852134 | [2] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
| 9. | 2852136 | [1] | CAP,48mm ID x 56mm OD x 18mm W | TOR Superseded by part number: |
