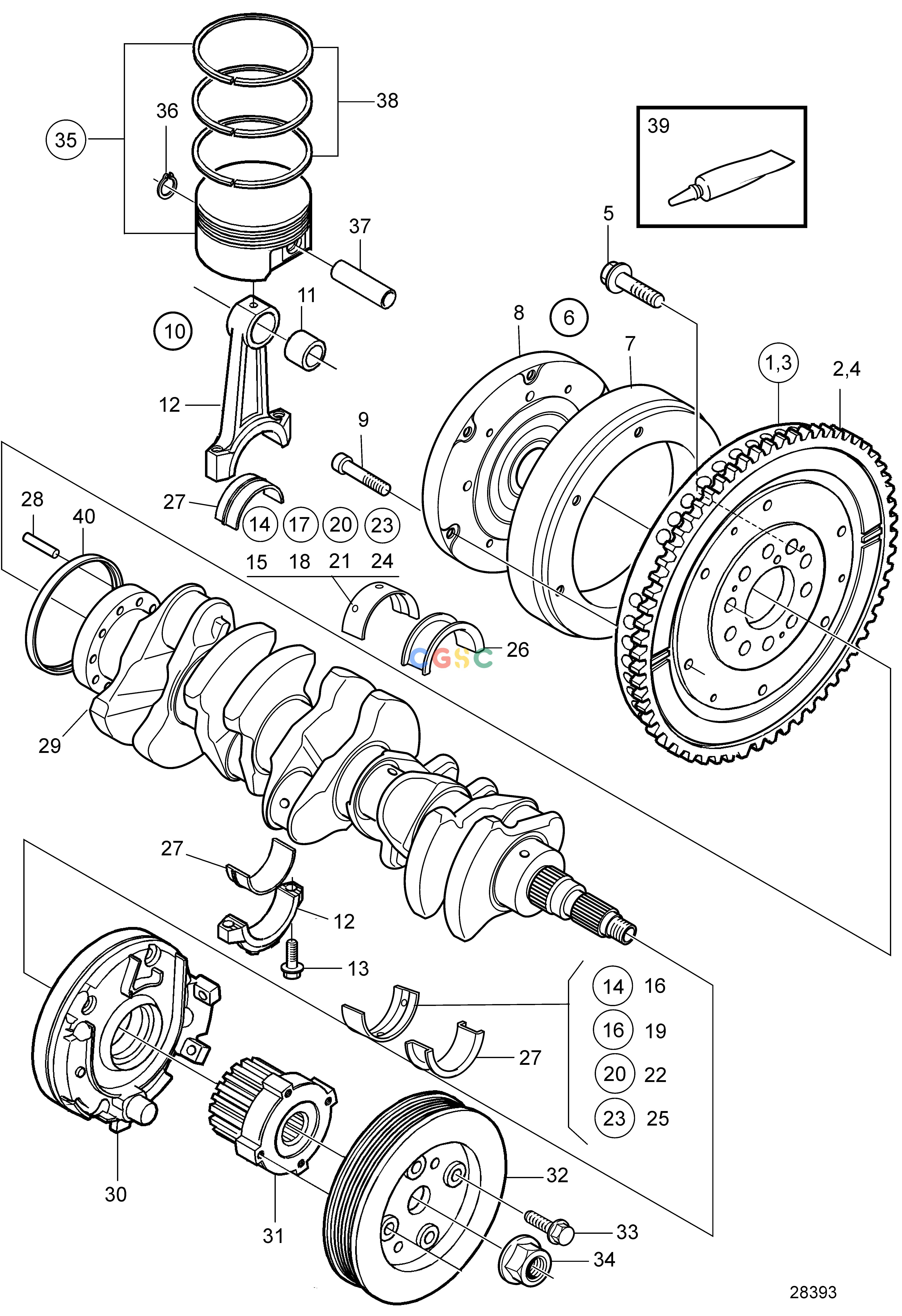

| 1. |
3818392
|
[1] |
Flywheel
|
Replaced by 21317215
|
| 1. |
21317215
|
[1] |
Flywheel
|
Replaced by 21517500, SN-2003018761
|
| 2. |
3818641
|
[1] |
Gear ring
|
SN-2003018761
|
| 3. |
21517500
|
[1] |
Flywheel
|
SN2003018762-
|
| 4. |
21517489
|
[1] |
Gear ring
|
SN2003018762-
|
| 5. |
9454743
|
[10] |
Screw
|
|
| 6. |
|
|
|
|
| 7. |
21429352
|
[1] |
Adapter ring
|
|
| 8. |
21485410
|
[1] |
Flexible coupling
|
Also order 21429352 & 959230
|
| 9. |
959230
|
[6] |
Hex. socket screw
|
|
| 10. |
8631505
|
[5] |
Connecting rod
|
Ø 28mm
|
| 10. |
30777189
|
[5] |
Connecting rod
|
Ø 30mm
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
9497858
|
[2] |
Screw
|
|
| 14. |
274482
|
[1] |
Main bearing kit, complete
|
Include all main bearings needed for overhauling the engine
|
| 14. |
31251577
|
[5] |
Main bearing
|
Without flange, red, SN-2003015290, See Workshop Manual
|
| 14. |
31251378
|
[5] |
Main bearing
|
Without flange, red, SN2003015291-, See Workshop Manual
|
| 15. |
31330321
|
[5] |
Main bearing
|
Red, Without flange, upper, See workshop Manual
|
| 16. |
30777951
|
[5] |
Main bearing
|
Red, Without flange, lower, See workshop Manual
|
| 17. |
31251578
|
[5] |
Main bearing
|
Without flange, yellow, SN-2003015290, See Workshop Manual
|
| 17. |
31251379
|
[5] |
Main bearing
|
Without flange, yellow, SN2003015291-, See Workshop Manual
|
| 18. |
31330322
|
[5] |
Main bearing
|
Yellow, Without flange, upper, See workshop Manual
|
| 19. |
30777952
|
[5] |
Main bearing
|
Yellow, Without flange, lower, See workshop Manual
|
| 20. |
31251579
|
[5] |
Main bearing
|
Without flange, blue, SN-2003015290, See Workshop Manual
|
| 20. |
31251380
|
[5] |
Main bearing
|
Without flange, blue, SN2003015291-, See Workshop Manual
|
| 21. |
31330323
|
[5] |
Main bearing
|
Blue, Without flange, upper, See workshop Manual
|
| 22. |
30777953
|
[5] |
Main bearing
|
Blue, Without flange, lower, See workshop Manual
|
| 23. |
31251580
|
[5] |
Main bearing
|
Without flange green, SN-2003015290
|
| 23. |
31251381
|
[5] |
Main bearing
|
Without flange green, SN2003015291-
|
| 24. |
31330324
|
[5] |
Main bearing
|
Green, Without flange, upper, See workshop Manual
|
| 25. |
30777954
|
[5] |
Main bearing
|
Green, Without flange, lower, See workshop Manual
|
| 26. |
31251597
|
[1] |
Thrust bearing
|
With flange, red, See Workshop Manual
|
| 26. |
31251598
|
[1] |
Thrust bearing
|
With flange, yellow, See Workshop Manual
|
| 26. |
31251599
|
[1] |
Thrust bearing
|
With flange, blue, See Workshop Manual
|
| 27. |
9180722
|
[5] |
Big-end bearing kit
|
|
| 28. |
973660
|
[1] |
Spring pin
|
|
| 29. |
9465781
|
[1] |
Crankshaft
|
|
| 30. |
7744550_028
|
|
Oil pump
|
|
| 31. |
1275366
|
[1] |
Pulley
|
|
| 32. |
30731865
|
[1] |
Vibration damper
|
(30637335)
|
| 33. |
969445
|
[4] |
Flange screw
|
|
| 34. |
3531111
|
[1] |
Nut
|
|
| 35. |
30750674
|
[1] |
Piston kit
|
Class C, Piston pin diameter 28mm
|
| 35. |
30750675
|
[1] |
Piston kit
|
Class D, Piston pin diameter 28mm
|
| 35. |
30750676
|
[1] |
Piston kit
|
Class E, Piston pin diameter 28mm
|
| 35. |
31272195
|
[1] |
Piston kit
|
Class C, Piston pin diameter 30mm
|
| 35. |
31272196
|
[1] |
Piston kit
|
Class D, Piston pin diameter 30mm
|
| 35. |
31272197
|
[1] |
Piston kit
|
Class E, Piston pin diameter 30mm
|
| 36. |
8631473
|
[1] |
Lock ring
|
Ø 28mm
|
| 36. |
30777225
|
[1] |
Lock ring
|
Ø 30mm
|
| 37. |
8642722
|
[1] |
Gudgeon pin
|
Ø 28mm
|
| 37. |
|
|
|
Ø 30mm
|
| 38. |
30731740
|
[1] |
Piston ring kit
|
Std, SN-2003004563
|
| 38. |
30750678
|
[1] |
Piston ring kit
|
Std, SN2003004564-
|
| 39. |
598034
|
[1] |
Grease
|
|
| 40. |
9458178
|
[1] |
Sealing ring
|
|
