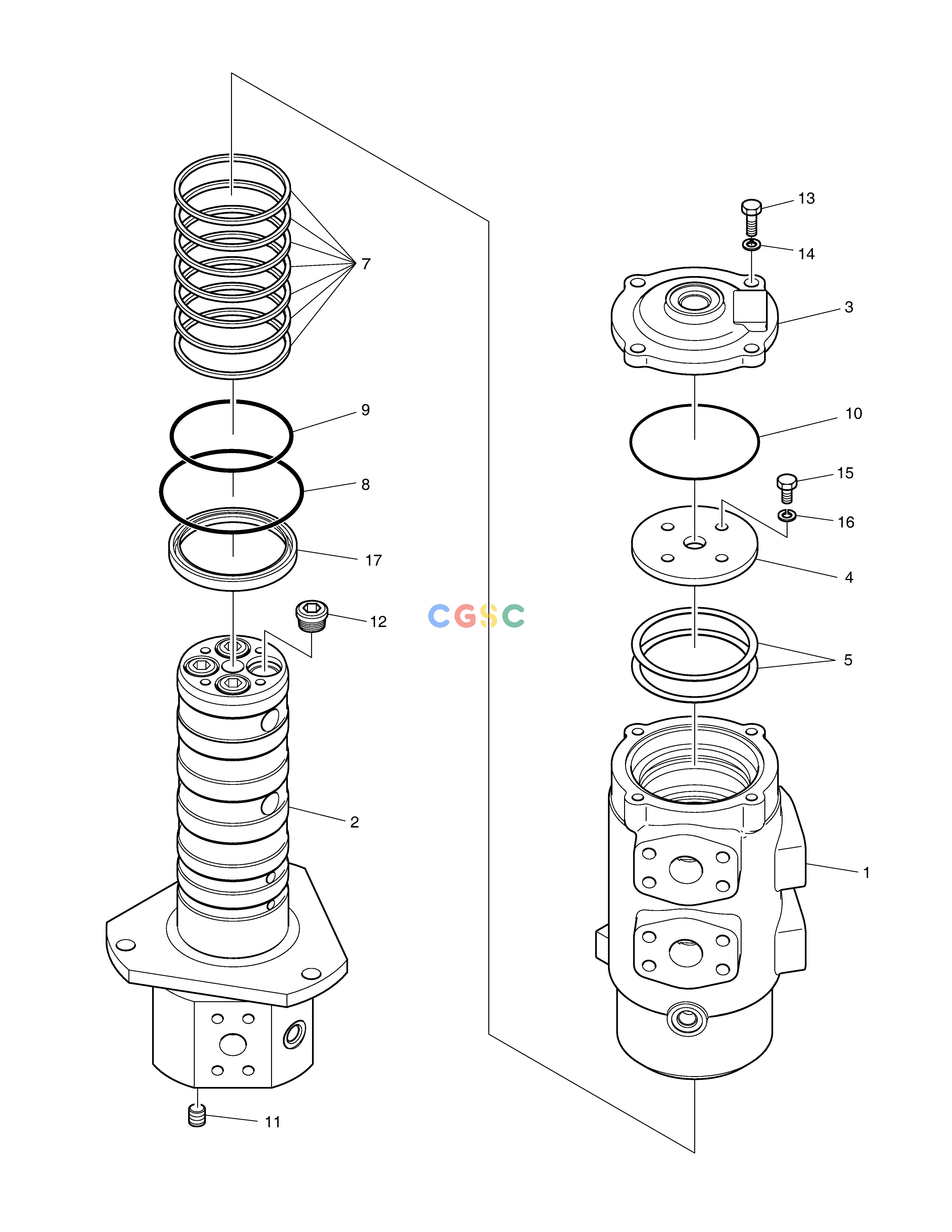

斗山零件查询CENTER JOINT DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01321
|
[1] |
|
|
| -. |
400826-00001A
|
[1] |
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
S8011200
|
[1] |
O-RING
|
|
| 11. |
2181-1116D2
|
[1] |
PLUG
|
|
| 12. |
NA00843
|
[4] |
PLUG
|
|
| 13. |
S0515253
|
[4] |
. BOLT
|
|
| 14. |
S5102703
|
[4] |
WASHER
|
|
| 15. |
S0512053
|
[4] |
BOLT
|
|
| 16. |
S5102603
|
[4] |
. WASHER
|
|
| 17. |
NA01082
|
[1] |
. SEAL
|
|
| 2. |
K1001565A
|
[1] |
SPINDLE ASS'Y
|
|
| 3. |
K1001566
|
[1] |
COVER
|
|
| 4. |
K1001567
|
[1] |
SPACER
|
|
| 5. |
K1001568
|
[2] |
SHIM
|
|
| 7. |
NA01076
|
[7] |
SEAL
|
|
| 8. |
S8001201
|
[1] |
O-RING
|
|
| 9. |
S8001001
|
[1] |
O-RING
|
|
