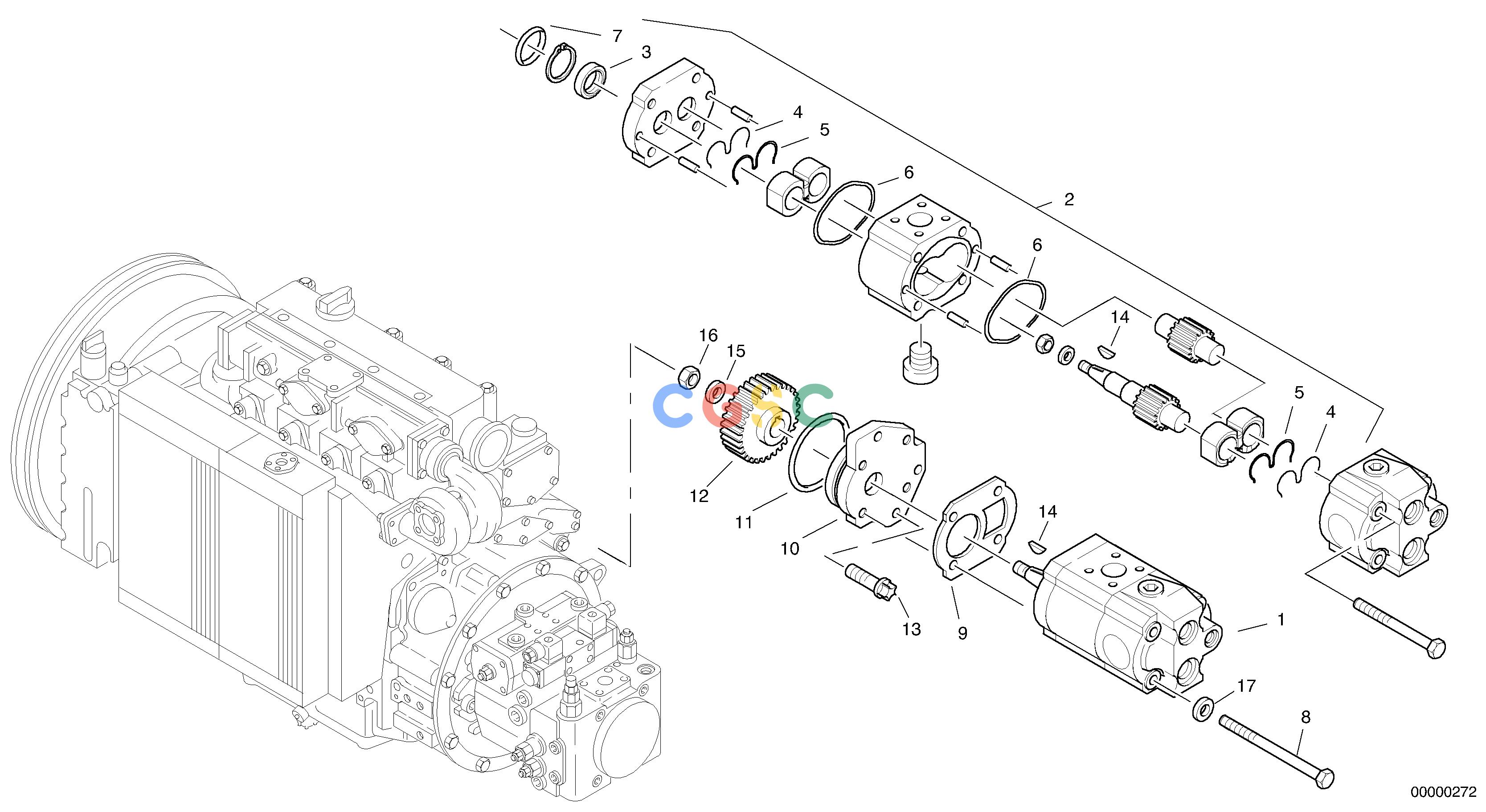

沃尔沃零件查询L40 Steering pumpTYPE 191, 192 SER NO - 10001920001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2810373
|
[1] |
Steering pump
|
-1920211
|
| 9. |
VOE20460516
|
[1] |
Gasket
|
|
| 10. |
VOE21101972
|
[1] |
Flange
|
|
| 11. |
VOE20405652
|
[1] |
Sealing ring
|
82x4
|
| 12. |
VOE20916167
|
[1] |
Gear
|
|
| 13. |
ZM2905741
|
[3] |
Screw
|
8x60
|
| 14. |
ZM5226861
|
[1] |
Woodruff key
|
3x5
|
| 15. |
VOE11306826
|
[1] |
Spring ring
|
A12
|
| 16. |
ZM7098064
|
[1] |
Nut
|
BM12x1,5
|
| 17. |
VOE960148
|
[2] |
Plain washer
|
B10,5
|
| 1. |
ZM2810815
|
[1] |
Pump
|
1920212-
|
| 2. |
VOE15120740
|
[1] |
Sealing kit
|
|
| 3. |
ZM2906655
|
[1] |
Radial Seal
|
|
| 4. |
ZM2906656
|
[2] |
Back-up ring
|
|
| 5. |
ZM2906657
|
[2] |
Gasket
|
|
| 6. |
ZM2906658
|
[2] |
O-ring
|
|
| 7. |
ZM2906659
|
[1] |
O-ring
|
|
| 8. |
ZM2811041
|
[4] |
Screw
|
M10x150
|
