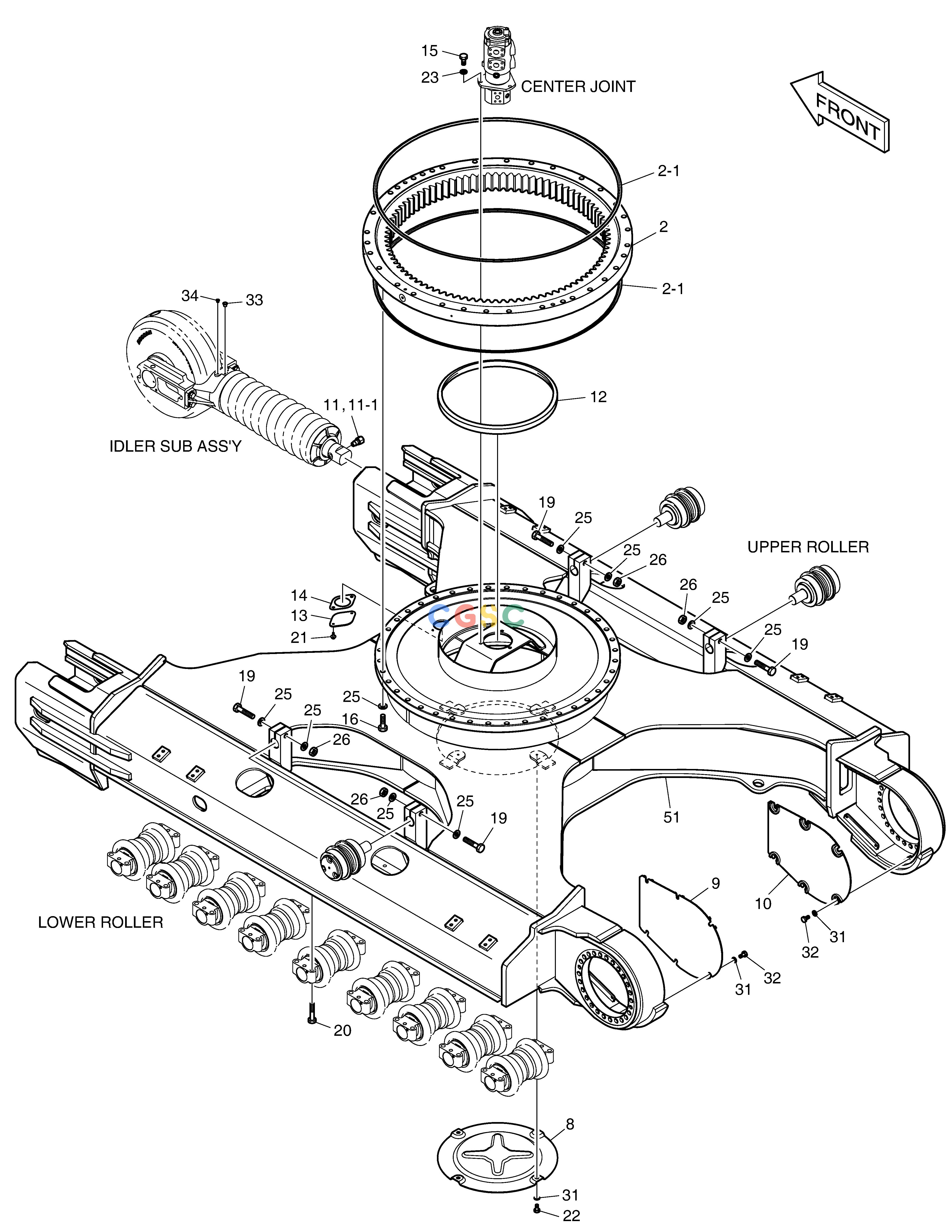

斗山零件查询TRACK FRAME DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
536 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650105-00039
|
[-] |
|
|
| 10. |
K1004434
|
[1] |
COVER;MOTOR(R.H)
|
|
| 11. |
422-00055
|
[2] |
VALVE;GREASE
|
|
| 11-1. |
401106-00230
|
[1] |
SEAL
|
|
| 12. |
K1004695
|
[1] |
SEAL
|
|
| 13. |
621-02938B
|
[1] |
COVER
|
|
| 14. |
180-00463
|
[1] |
PACKING
|
|
| 15. |
S0521366
|
[3] |
BOLT
|
|
| 16. |
S0574966
|
[40] |
BOLT M24X3.0X80
|
|
| 19. |
S0575766
|
[4] |
BOLT
|
|
| 2. |
140109-00007A
|
[1] |
|
|
| 2-1. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 20. |
S0573366
|
[72] |
BOLT M22X2.5X110
|
|
| 21. |
DS0025016
|
[2] |
BOLT
|
|
| 22. |
S0515066
|
[4] |
BOLT
|
|
| 23. |
4114-1791A
|
[3] |
WASHER;HARD
|
|
| 25. |
2114-1831A
|
[48] |
. WASHER
|
|
| 26. |
S4013333
|
[4] |
. NUT
|
|
| 31. |
120810-00100
|
[16] |
|
|
| 32. |
S0515266
|
[12] |
BOLT
|
|
| 33. |
110910-00040A
|
[2] |
|
|
| 34. |
110910-00077
|
[4] |
CAP
|
|
| 51. |
160617-00103B
|
[1] |
|
|
| 8. |
K1004271
|
[1] |
COVER;UNDER
|
|
| 9. |
K1004433
|
[1] |
COVER;MOTOR(L.H)
|
|
