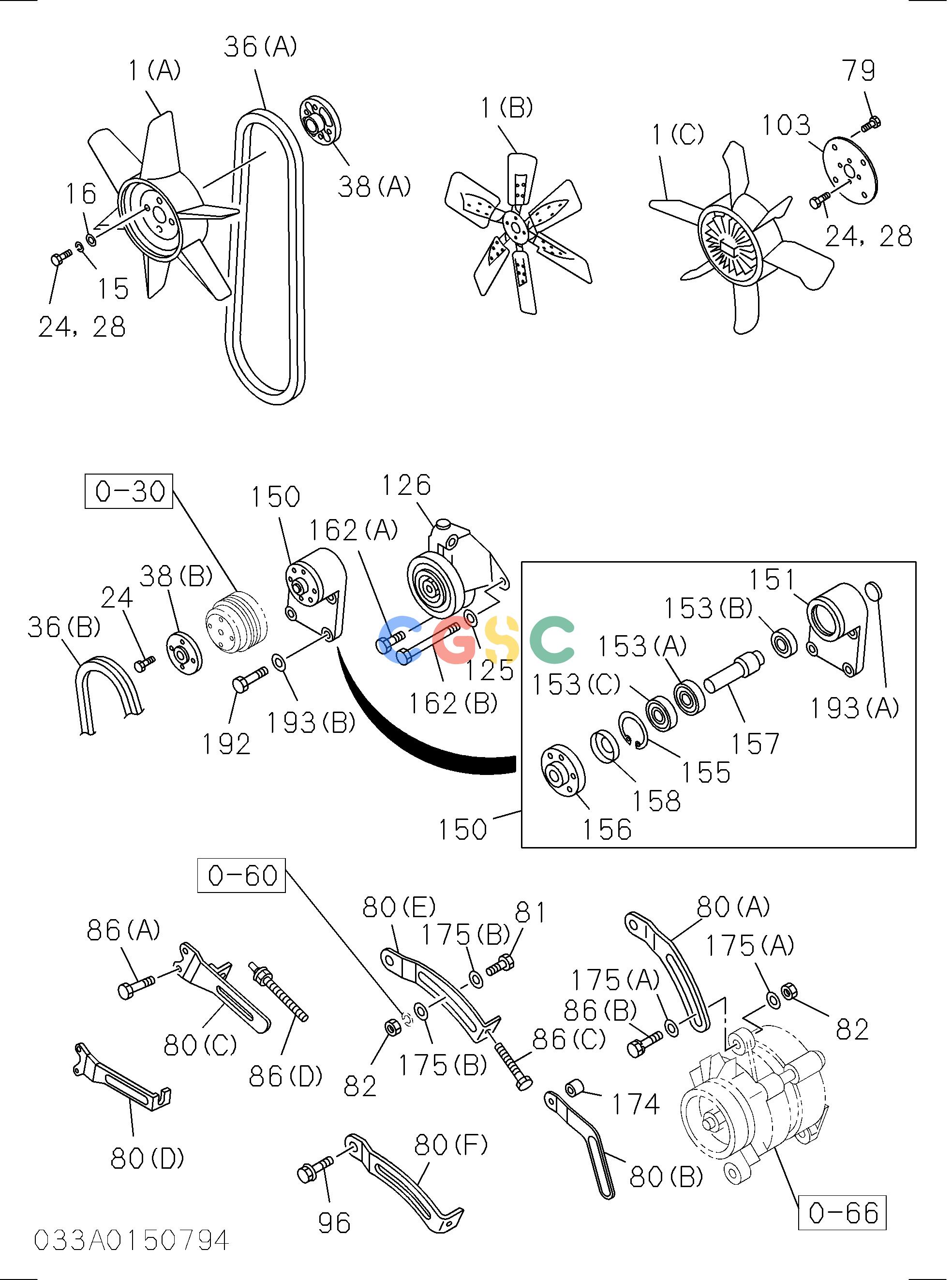

日立零件查询（BX70D）FAN AND FAN BELT Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 16. | 9098516490 | [4] | WASHER; PL,COOLING FAN | |
| 24. | 0500408300 | [4] | BOLT; FAN | M8X30 W/LK WASHER |
| 36(A). | 1136711830 | [1] | BELT; COOLING FAN | L=1236 |
| 36(B). | 8944706821 | [1] | BELT; COOLING FAN | L=1461 |
| 38(B). | 8944708530 | [1] | SPACER; FAN | T=23 |
| 80(F). | 1136741181 | [1] | PLATE; ADJ | |
| 81. | 1136741600 | [1] | PIECE; SLIDING | |
| 82. | 9991104120 | [1] | NUT; ADJ PLATE | |
| 86(A). | 0500410250 | [1] | BOLT; ADJ | |
| 86(C). | 1090091141 | [1] | BOLT; ADJ | |
| 125. | 9091605080 | [1] | WASHER | |
| 126. | 1136601950 | [1] | PULLEY; IDLE | |
| 150. | 8970447570 | [1] | CASE ASM; BRG,FAN | |
| 151. | 8970447670 | [1] | CASE; BRG | |
| 153(A). | 1098001700 | [1] | BEARING; BALL,BRG CASE | |
| 153(B). | 5098000500 | [1] | BEARING; BALL,BRG CASE | |
| 153(C). | 5098000510 | [1] | BEARING; BALL,BRG CASE | |
| 155. | 9091801520 | [1] | RING; SNAP,BRG CASE | |
| 156. | 5136420072 | [1] | CENTER; BRG CASE | |
| 157. | 1136650140 | [1] | SHAFT; BRG CASE | |
| 158. | 5136390010 | [1] | COVER; DUST,BRG CASE | |
| 162(A). | 0500408180 | [1] | BOLT; FAN CLU | |
| 162(B). | 0500408600 | [1] | BOLT; FAN CLU | |
| 175(B). | 9091647120 | [2] | WASHER; PL,ADJ PLATE | |
| 192. | 1090001991 | [2] | BOLT; BRG CASE TO HSG | |
| 192. | 5090000061 | [1] | BOLT; BRG CASE TO HSG | |
| 192. | 8941486161 | [1] | BOLT; BRG CASE TO HSG | |
| 193(A). | 1096000112 | [1] | WASHER; LK,BRG CASE | |
| 193(B). | 9091505100 | [4] | WASHER; LK,BRG CASE | |
