沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-EngineTiming Gear HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
433 次

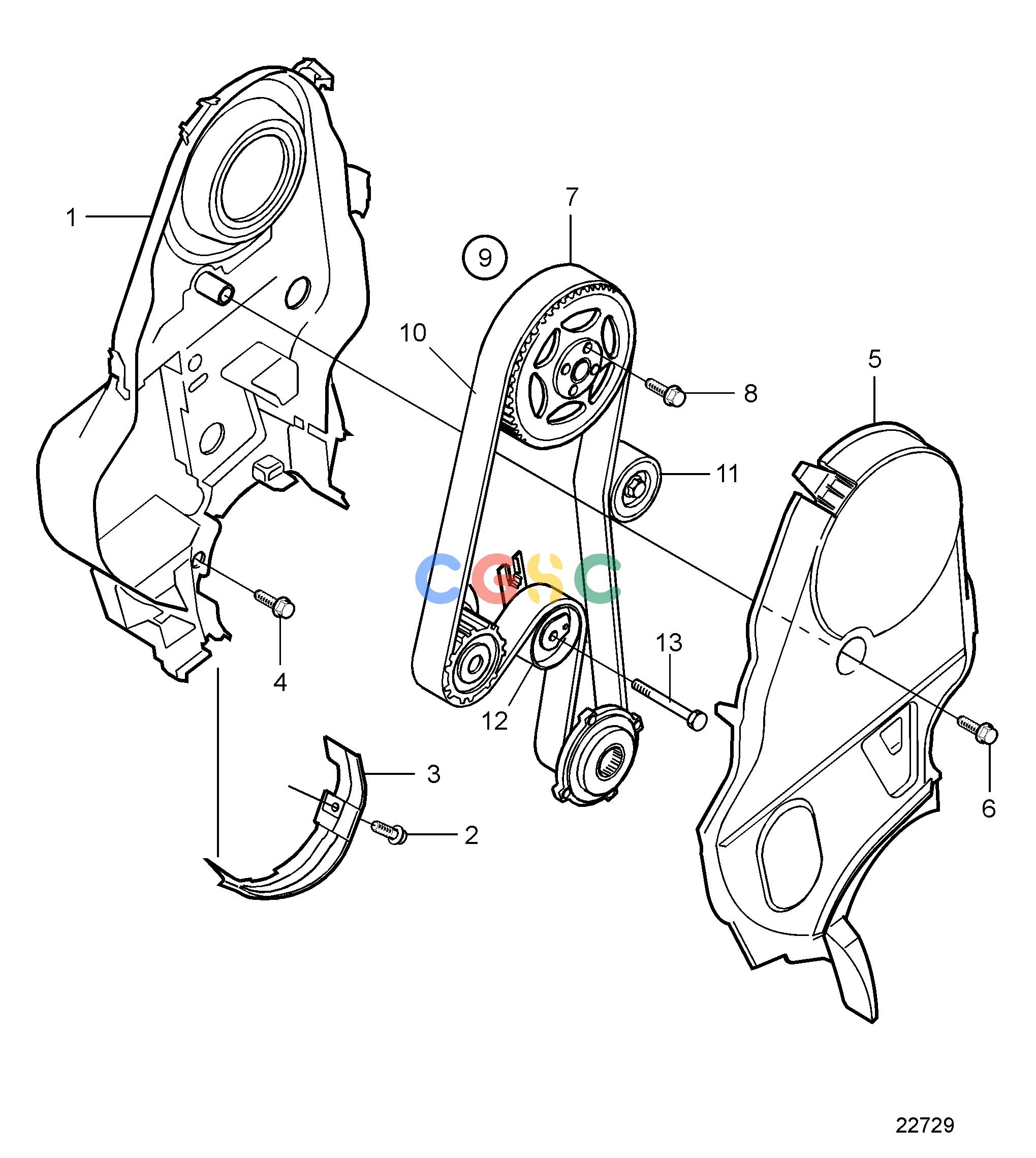

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8631626
|
[1] |
Belt protector
|
|
| 2. |
981311
|
[2] |
Flange screw
|
|
| 3. |
30731907
|
[1] |
Belt protector
|
|
| 4. |
982384
|
[4] |
Screw
|
M6x11,5mm
|
| 5. |
30731283
|
[1] |
Belt protector
|
|
| 6. |
981312
|
[1] |
Flange screw
|
M7x48,5mm
|
| 7. |
8631554
|
[1] |
Gear pulley
|
SN-344632
|
| 7. |
8642804
|
[1] |
Gear pulley
|
SN344633-
|
| 8. |
968881
|
[4] |
Flange screw
|
M8x25mm
|
| 8. |
985373
|
[4] |
Screw
|
For 8642804
|
| 9. |
31258305
|
[1] |
Tooth belt
|
|
| 10. |
31258306
|
[1] |
Tooth belt
|
|
| 11. |
8692561
|
[1] |
Idler pulley
|
|
| 12. |
30731774
|
[1] |
Tensioner
|
Ersatt av 31339542
|
| 12. |
31339542
|
[1] |
Tensioner
|
|
| 13. |
985806
|
[1] |
Hexagon screw
|
M8x53,5mm
|
