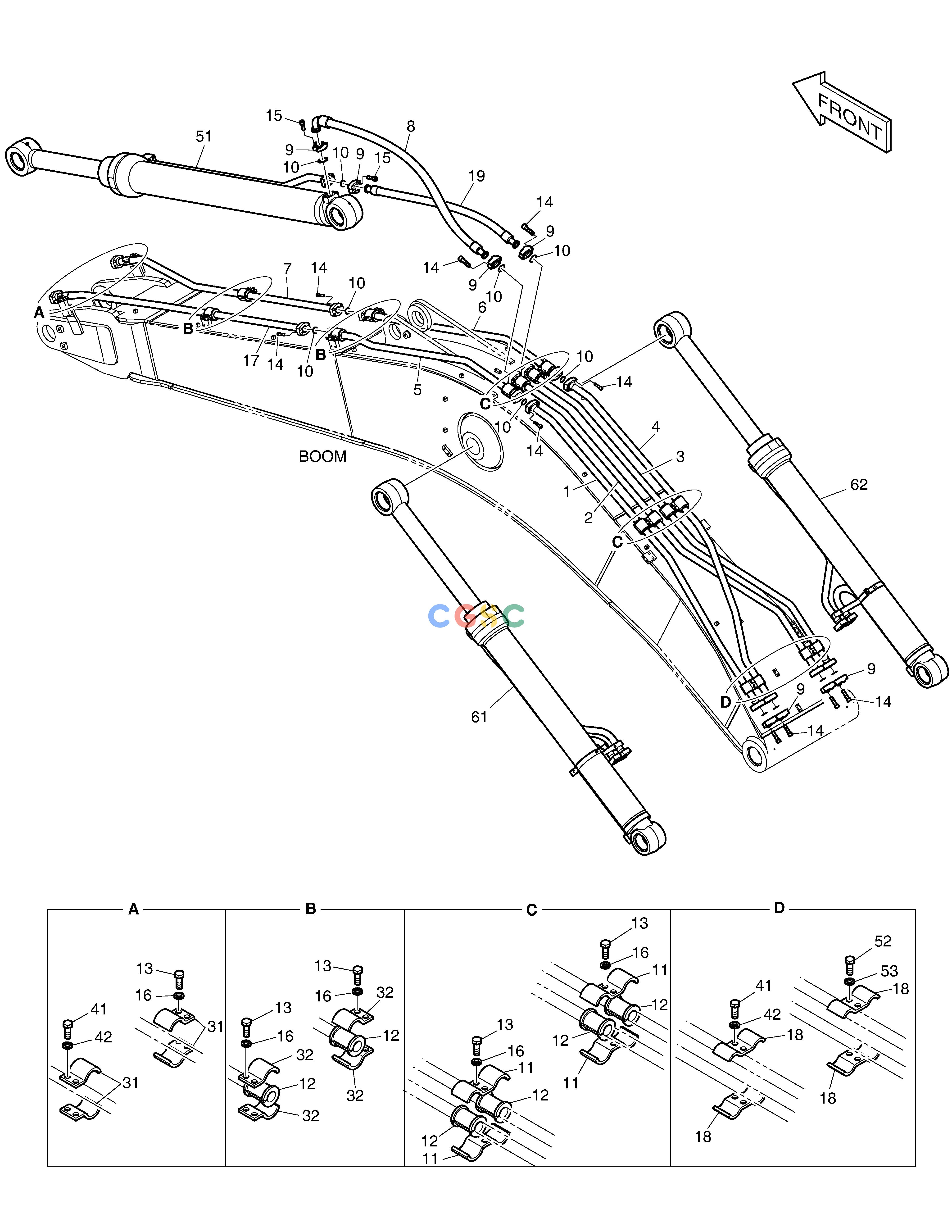

斗山零件查询BOOM PIPING DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02518
|
[-] |
|
|
| 1. |
420207-00143A
|
[1] |
|
|
| 10. |
2180-1026D23
|
[8] |
O-RING
|
|
| 11. |
K1003999
|
[8] |
CLAMP;PIPE
|
|
| 12. |
180308-00236
|
[12] |
|
|
| 13. |
S0562866
|
[18] |
BOLT M14X2.0X45
|
|
| 14. |
S2218766
|
[40] |
BOLT;SOCKET
|
|
| 15. |
S2218666
|
[8] |
BOLT;SOCKET M14X2.0X50
|
|
| 16. |
K1015638
|
[18] |
WASHER;HARDENED
|
|
| 17. |
420207-00227A
|
[1] |
|
|
| 18. |
K1004002
|
[4] |
CLAMP;PIPE
|
|
| 19. |
DS2038294
|
[1] |
|
|
| 2. |
420207-00144A
|
[1] |
|
|
| 3. |
420207-00145A
|
[1] |
|
|
| 31. |
K1004000
|
[4] |
CLAMP;PIPE
|
|
| 32. |
K1004001
|
[8] |
CLAMP;PIPE
|
|
| 4. |
420207-00181A
|
[1] |
|
|
| 41. |
S0562866
|
[4] |
BOLT M14X2.0X45
|
|
| 42. |
K1015638
|
[4] |
WASHER;HARDENED
|
|
| 5. |
420207-00215A
|
[1] |
|
|
| 51. |
400305-00027C
|
[1] |
|
|
| 52. |
S0562866
|
[2] |
BOLT M14X2.0X45
|
|
| 53. |
K1015638
|
[2] |
WASHER;HARDENED
|
|
| 6. |
420207-00216A
|
[1] |
|
|
| 61. |
400309-00038C
|
[1] |
|
|
| 62. |
400309-00039C
|
[1] |
|
|
| 7. |
420207-00217A
|
[1] |
|
|
| 8. |
DS2040787
|
[1] |
|
|
| 9. |
2181-9086
|
[16] |
FLANGE;SPLIT
|
|
