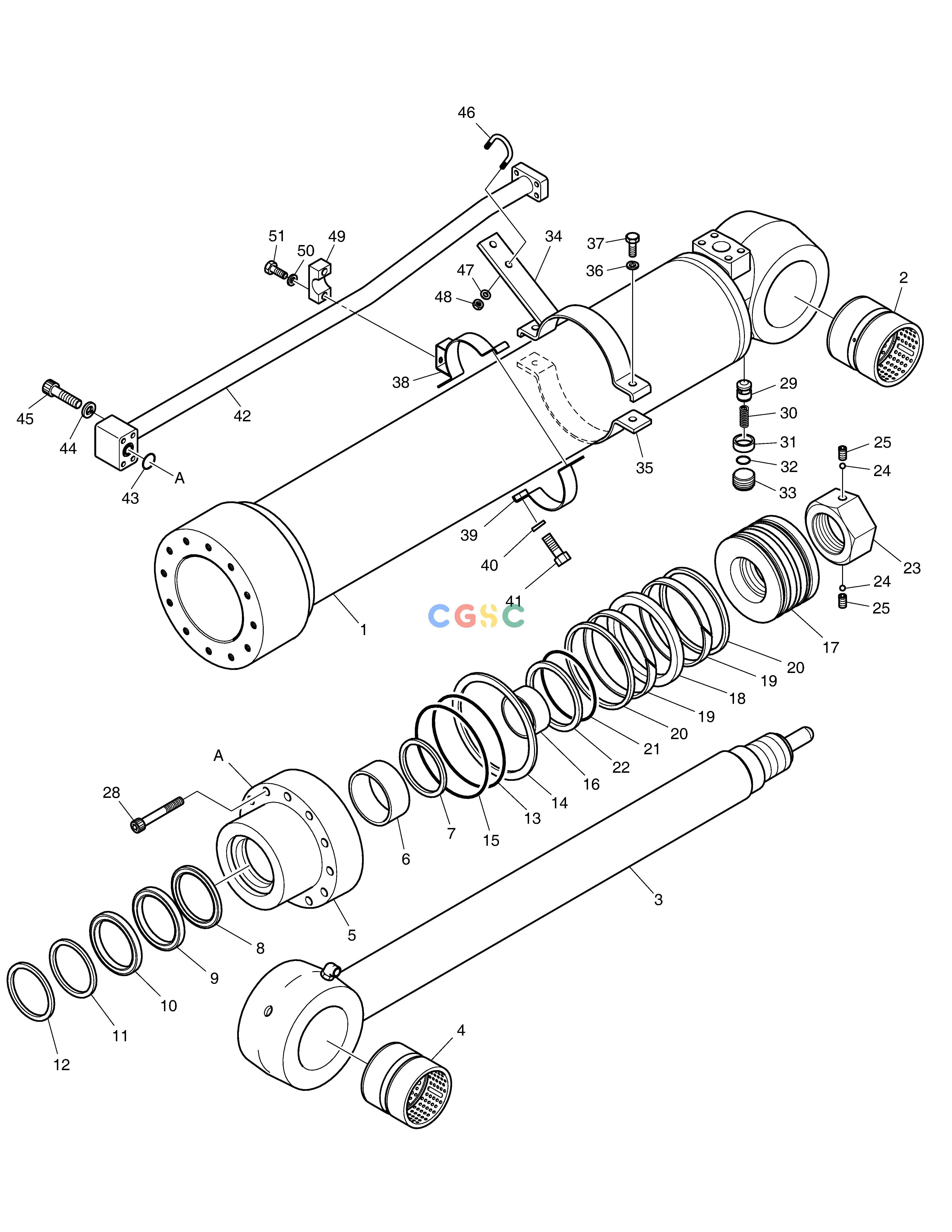

斗山零件查询ARM CYLINDER DX420LC-5(S/N:10001~10010) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 502 次

Pos.	Part No	Qty	Parts name
.	401107-00579	[1]
-.	400305-00027C	[1]
1.	420406-00907A	[1]
10.	111102-00133	[1]
11.	1.180-00501	[1]	WIPER;DUST
12.	115-00108	[1]	RING;RETAINING
13.	S8011701	[1]	O-RING
14.	K9002083	[1]	RING;BACK UP
15.	2180-1216D150	[1]	O-RING
16.	K2002084	[1]	RING;CUSHION
17.	130602-00240	[1]
18.	K2002086	[1]	SEAL;SLIPPER
19.	1.180-00419	[2]	RING;WEAR
2.	131004-00010B	[1]
20.	NA01985	[2]
21.	S8011101	[1]	O-RING
22.	111102-00016	[2]
23.	120312-00477	[1]
24.	110202-00014	[2]
25.	S3526408	[2]
28.	S2234471	[12]	BOLT;HEX SOCKET
29.	420-00132	[1]	VALVE;CHECK
3.	400337-00403A	[1]
30.	129-00071	[1]	SPRING
31.	1.195-00022	[1]	SUPPORT;SPRING
32.	S8000141	[1]	O-RING
33.	430221-00136	[1]	PLUG
34.	K9002653	[1]	PIPE BAND ASS'Y-H
35.	1.124-00067	[1]	BAND;PIPE
36.	S5100703	[2]	WASHER;SPRING
37.	S0560563	[2]	BOLT
38.	1.124-00128	[1]	PIPE BAND ASS'Y-R
39.	1.124-00067	[1]	BAND;PIPE
4.	131004-00010B	[1]
40.	S5100703	[2]	WASHER;SPRING
41.	S0560563	[2]	BOLT
42.	K9002877	[1]	PIPE ASS'Y-R
43.	S8000401	[1]	O-RING
44.	S5100803	[4]	WASHER;SPRING
45.	S2219066	[4]
46.	120-00178	[1]	BOLT;U
47.	S5100703	[2]	WASHER;SPRING
48.	S4010733	[2]	NUT
49.	1.124-00142	[1]	CLAMP;PIPE
5.	110508-18829	[1]
50.	S5100603	[2]	WASHER
51.	S0559063	[2]	BOLT M12X1.5X75
6.	131005-00050	[1]
7.	1.115-00056	[1]	RING;RETAINING
8.	K9002080	[1]	SEAL;BUFFER
9.	K9002081	[1]	PACKING;U
