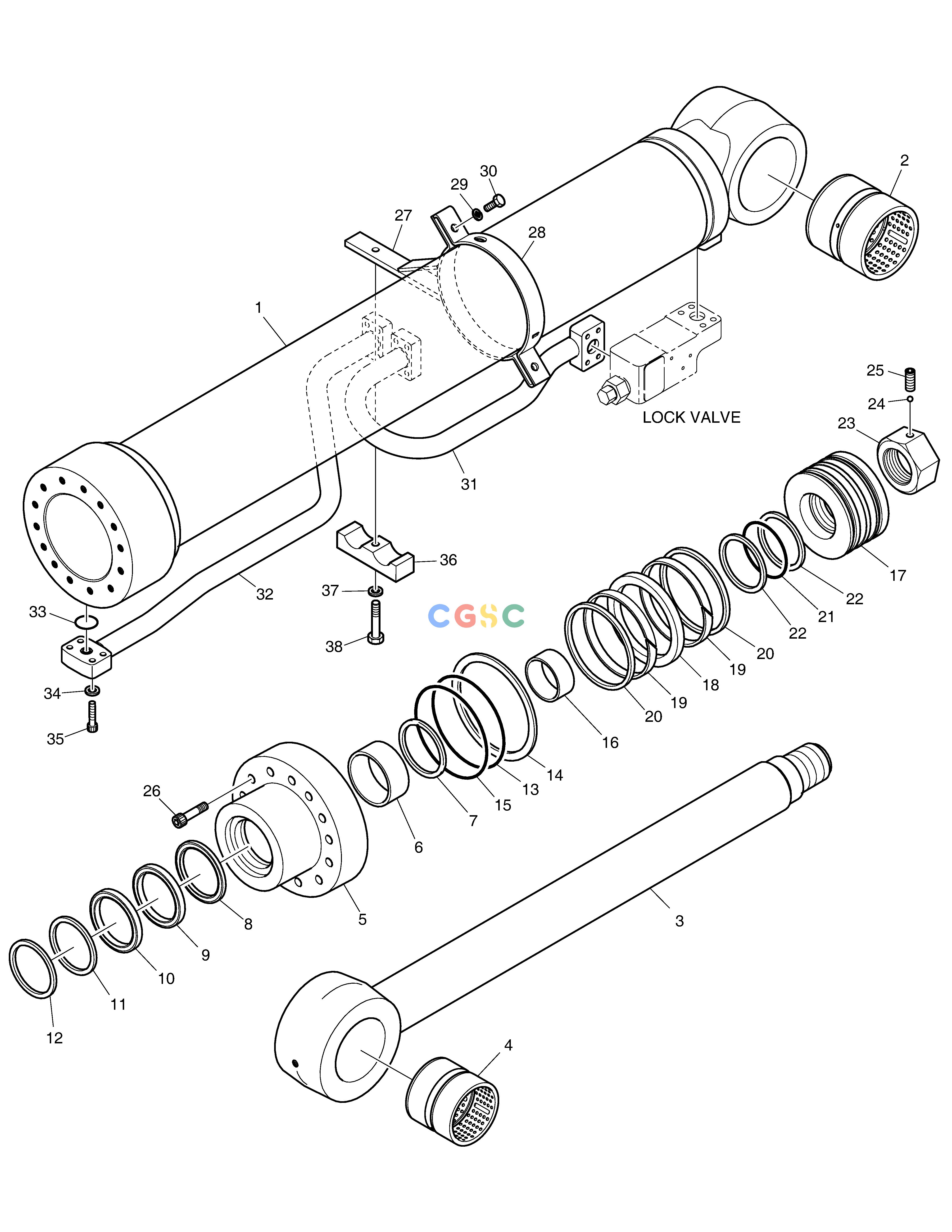

斗山零件查询BOOM CYLINDER(L.H)-LOCK VALVE DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00578
|
[1] |
|
|
| -. |
400309-00040C
|
[1] |
|
|
| 1. |
420402-00281A
|
[1] |
|
|
| 10. |
K9001952
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00098
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00091
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011601
|
[1] |
O-RING
|
|
| 14. |
K9001953
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D150
|
[1] |
O-RING
|
|
| 16. |
K9001954
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00188
|
[1] |
|
|
| 18. |
K9002277
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00112
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00010B
|
[1] |
|
|
| 20. |
115-00110
|
[2] |
RING;SLYD
|
|
| 21. |
S8011051
|
[1] |
O-RING
|
|
| 22. |
1.180-00630
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00053
|
[1] |
|
|
| 24. |
110202-00014
|
[1] |
|
|
| 25. |
120706-00009
|
[1] |
|
|
| 26. |
S2228261
|
[14] |
BOLT;SOCKET
|
|
| 27. |
110902-00158
|
[1] |
|
|
| 28. |
124-00129
|
[1] |
BAND;PIPE
|
|
| 29. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 3. |
400337-00402A
|
[1] |
|
|
| 30. |
S0560453
|
[2] |
BOLT M12X1.75X35
|
|
| 31. |
420210-01144
|
[1] |
|
|
| 32. |
420210-01140
|
[1] |
|
|
| 33. |
S8000401
|
[1] |
O-RING
|
|
| 34. |
S5100803
|
[4] |
WASHER;SPRING
|
|
| 35. |
S2219066
|
[4] |
|
|
| 36. |
120208-00208
|
[1] |
|
|
| 37. |
S5102903
|
[1] |
WASHER
|
|
| 38. |
S0565753
|
[1] |
BOLT M16X2.0X75
|
|
| 4. |
131004-00006B
|
[1] |
|
|
| 5. |
110508-09921
|
[1] |
|
|
| 6. |
131005-00049
|
[1] |
|
|
| 7. |
115-00090
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001950
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001951
|
[1] |
U-PACKING
|
|
