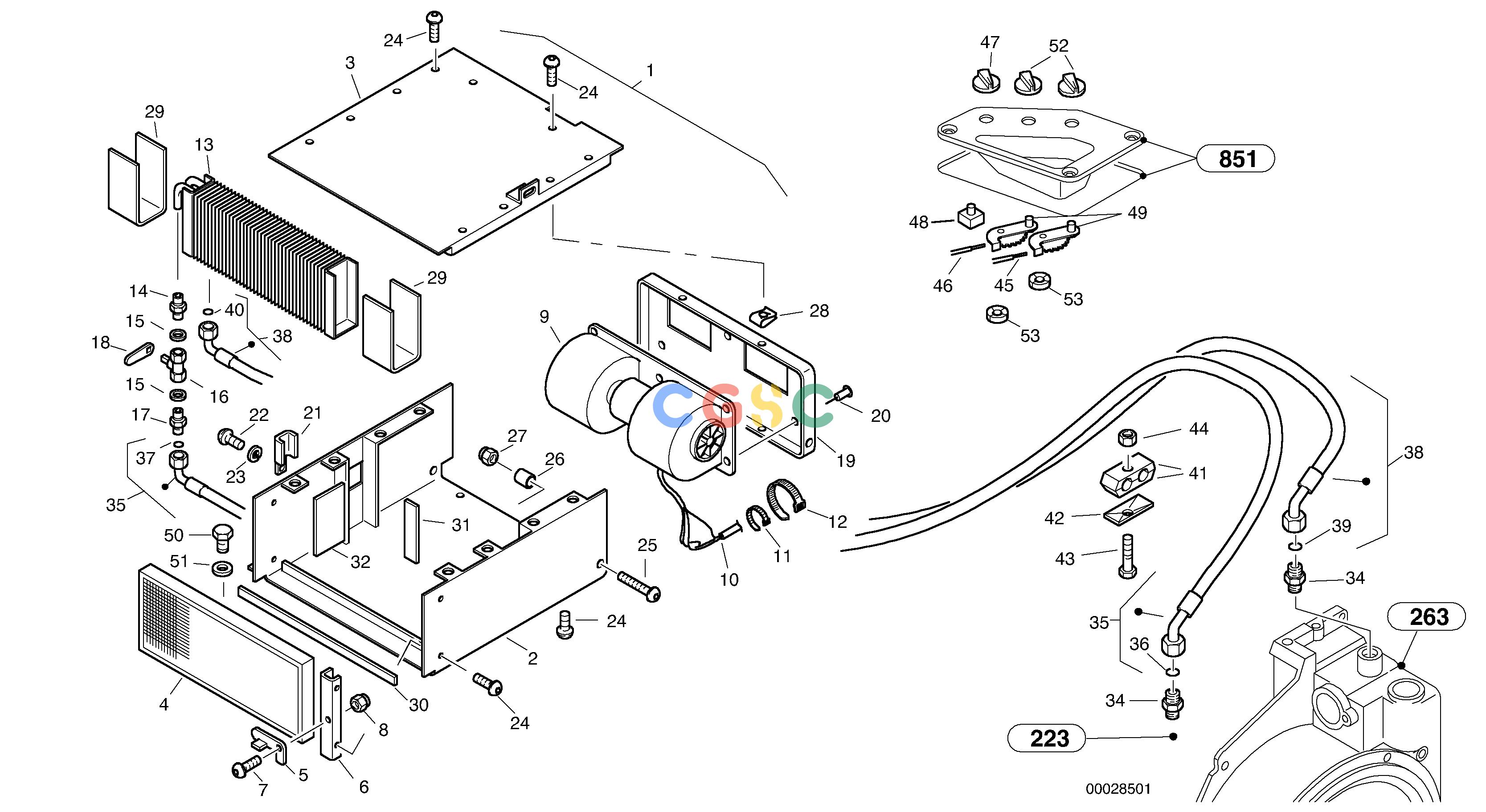

沃尔沃零件查询L40 HeaterTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907466
|
[1] |
Air-conditioning system,
|
|
| 10. |
ZM2907456
|
[1] |
Cable harness
|
|
| 11. |
ZM2290075
|
[1] |
Cable clamp
|
T18
|
| 12. |
ZM2290076
|
[1] |
Strip Clamp
|
|
| 13. |
ZM2907452
|
[1] |
Heat exchanger
|
|
| 14. |
ZM2907530
|
[1] |
Fitting
|
|
| 15. |
ZM2290651
|
[2] |
Seal
|
|
| 16. |
ZM2907453
|
[1] |
Shut-off Cock
|
|
| 17. |
ZM2907455
|
[1] |
Fitting
|
|
| 18. |
ZM2907529
|
[1] |
Lever
|
|
| 19. |
ZM2907526
|
[1] |
Blower support
|
|
| 2. |
ZM2907449
|
[1] |
Housing
|
|
| 20. |
ZM2907538
|
[5] |
Blind Rivet
|
|
| 21. |
ZM2287955
|
[1] |
Plate
|
|
| 22. |
VOE13956078
|
[1] |
Screw
|
M5x16
|
| 23. |
ZM7098327
|
[1] |
Spring washer
|
A5
|
| 24. |
ZM2290060
|
[14] |
Screw
|
4,2x13
|
| 25. |
ZM7096667
|
[2] |
Screw
|
|
| 26. |
ZM2907532
|
[2] |
Spacer
|
|
| 27. |
ZM2289705
|
[2] |
Nut
|
M4
|
| 28. |
ZM2907471
|
[2] |
Nut
|
4,2
|
| 29. |
ZM2290063
|
[2] |
Profiled joint
|
|
| 3. |
ZM2907450
|
[1] |
Cover
|
|
| 30. |
ZM2904251
|
[REQ] |
Rubber Strip
|
12x2
|
| 31. |
ZM2907539
|
[REQ] |
Sealing bande
|
|
| 32. |
ZM2290063
|
[1] |
Profiled joint
|
|
| 34. |
ZM7091972
|
[2] |
Nipple
|
L22MB
|
| 35. |
ZM2811761
|
[1] |
Hose
|
|
| 36. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 37. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 38. |
ZM2811762
|
[1] |
Hose
|
|
| 39. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 40. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 4. |
ZM2907251
|
[1] |
Air filter
|
|
| 41. |
ZM2802157
|
[1] |
Clamp half pair
|
|
| 42. |
ZM4343143
|
[1] |
Plate
|
|
| 43. |
VOE14370276
|
[1] |
Screw
|
M8x60
|
| 44. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 45. |
VOE11370313
|
[1] |
Cable
|
|
| 46. |
ZM2907429
|
[1] |
Control Cable
|
|
| 47. |
ZM2906795
|
[1] |
Regulator
|
|
| 48. |
ZM2287960
|
[1] |
Switch
|
|
| 49. |
ZM2904575
|
[2] |
Operating element
|
|
| 50. |
VOE955269
|
[1] |
Hexagon screw
|
M6x12
|
| 5. |
ZM2907528
|
[1] |
Rod
|
|
| 51. |
VOE955892
|
[1] |
Plain washer
|
B6,4
|
| 52. |
ZM2907953
|
[2] |
Regulator
|
|
| 53. |
ZM2908641
|
[2] |
Spring Nut
|
|
| 6. |
ZM2907527
|
[1] |
Bar holder
|
|
| 7. |
ZM2907469
|
[1] |
Screw
|
M5x12
|
| 8. |
ZM2907531
|
[1] |
Nut
|
M5
|
| 9. |
ZM2907451
|
[1] |
Blower
|
|
