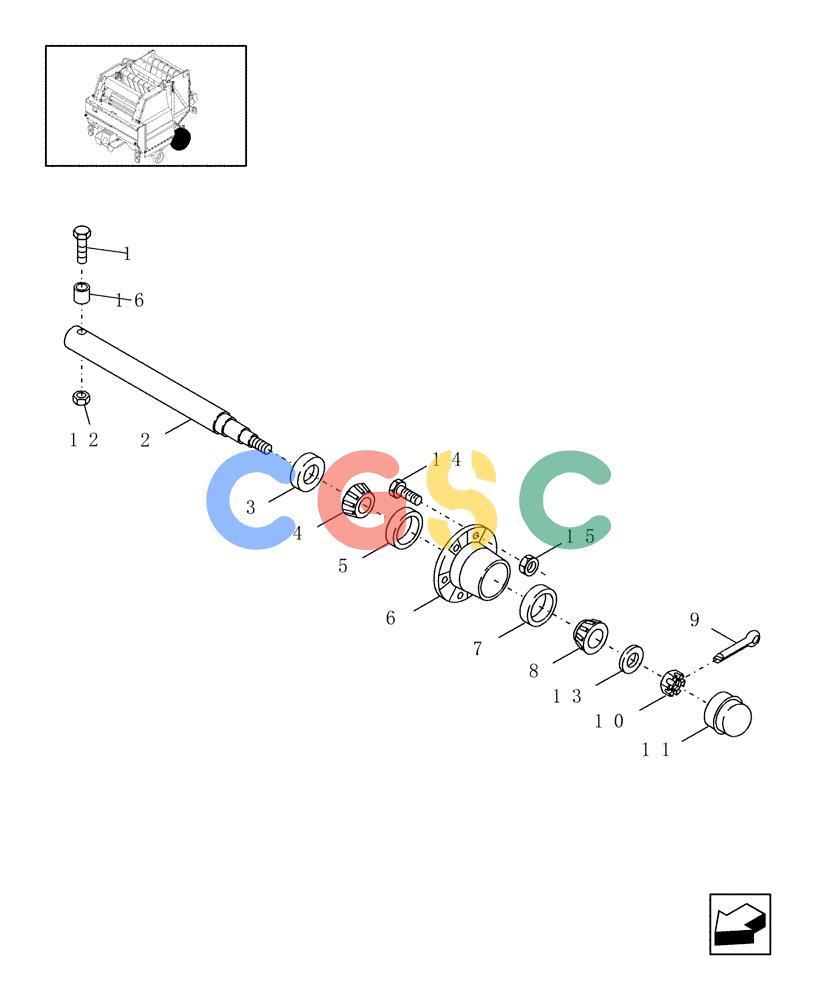

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (047) - HUB & SPINDLE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
814-16150
|
[2] |
BOLT,Hex, M16 x 2 x 150mm, Cl 8.8
|
IH
Superseded by part number: 362573
|
| 2. |
9617263
|
[2] |
SPINDLE
|
NH
|
| 3. |
788367
|
[2] |
SEAL
|
NH
Superseded by part number: 62610C1
|
| 4. |
G15215
|
[2] |
ROLLER BEARING
|
CAS
Tapered, Roller Superseded by part number: 86512027
|
| 5. |
619387R1
|
[2] |
BEARING CUP
|
IH
Superseded by part number: 86512027
|
| 6. |
86635391
|
[2] |
HUB
|
NH
|
| 7. |
H433209
|
[2] |
BEARING CUP
|
CAS
Bearing Superseded by part number: 175508
|
| 8. |
536053R1
|
[2] |
ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"
|
IH
Superseded by part number: 175507
|
| 9. |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 10. |
280172
|
[2] |
SLOTTED NUT,7/8"-14
|
NH
|
| 11. |
249128
|
[2] |
HUB CAP
|
NH
|
| 12. |
832-46416
|
[2] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 13. |
116150
|
[2] |
WASHER,23.81mm ID x 50.8mm OD x 4.76mm Thk
|
NH
7/8"
|
| 14. |
814-16090
|
[6] |
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
|
CAS
Superseded by part number: 350616
|
| 16. |
9802018
|
[2] |
SPACER
|
NH
|
