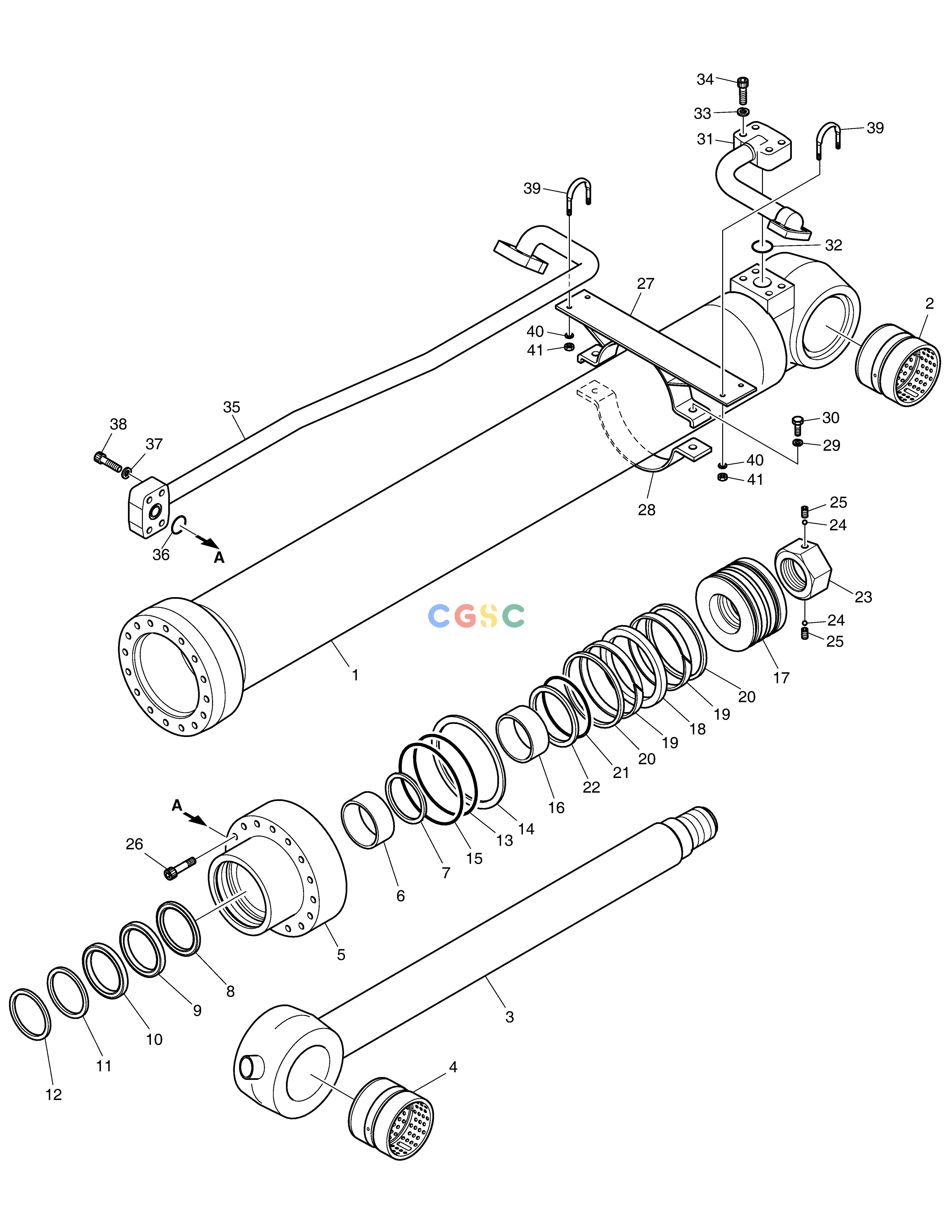

斗山零件查询BUCKET CYLINDER DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01236
|
[1] |
|
|
| -. |
400310-00020C
|
[1] |
|
|
| 1. |
420402-00282A
|
[1] |
|
|
| 10. |
K9002097
|
[1] |
RING;BACK UP
|
|
| 11. |
1.180-00502
|
[1] |
WIPER;DUST
|
|
| 12. |
1.115-00056
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011501
|
[1] |
O-RING
|
|
| 14. |
K9002098
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D149
|
[1] |
O-RING
|
|
| 16. |
K9002099
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00895
|
[1] |
|
|
| 18. |
K9002101
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00433
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00010B
|
[1] |
|
|
| 20. |
NA01985
|
[2] |
|
|
| 21. |
S8011001
|
[1] |
. O-RING
|
|
| 22. |
NA03258
|
[2] |
BACK UP RING
|
|
| 23. |
120312-00083A
|
[1] |
|
|
| 24. |
110202-00014
|
[2] |
|
|
| 25. |
S3526408
|
[2] |
|
|
| 26. |
S2225271
|
[14] |
BOLT;HEX SOCKET
|
|
| 27. |
110902-00159
|
[1] |
|
|
| 28. |
1.124-00130
|
[1] |
|
|
| 29. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 3. |
920602-00230A
|
[1] |
|
|
| 30. |
S0560563
|
[2] |
BOLT
|
|
| 31. |
420210-01142
|
[1] |
|
|
| 32. |
S8000401
|
[1] |
O-RING
|
|
| 33. |
S5100803
|
[4] |
WASHER;SPRING
|
|
| 34. |
S2219066
|
[4] |
|
|
| 35. |
420210-01143
|
[1] |
|
|
| 36. |
S8000401
|
[1] |
O-RING
|
|
| 37. |
S5100803
|
[4] |
WASHER;SPRING
|
|
| 38. |
S2219066
|
[4] |
|
|
| 39. |
120-00178
|
[2] |
BOLT;U
|
|
| 4. |
131004-00010B
|
[1] |
|
|
| 40. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 41. |
S4010733
|
[4] |
NUT
|
|
| 5. |
110508-14634
|
[1] |
|
|
| 6. |
131005-00051
|
[1] |
|
|
| 7. |
115-00078
|
[1] |
RING;RETAINING
|
|
| 8. |
K9002095
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9002096
|
[1] |
PACKING;U
|
|
