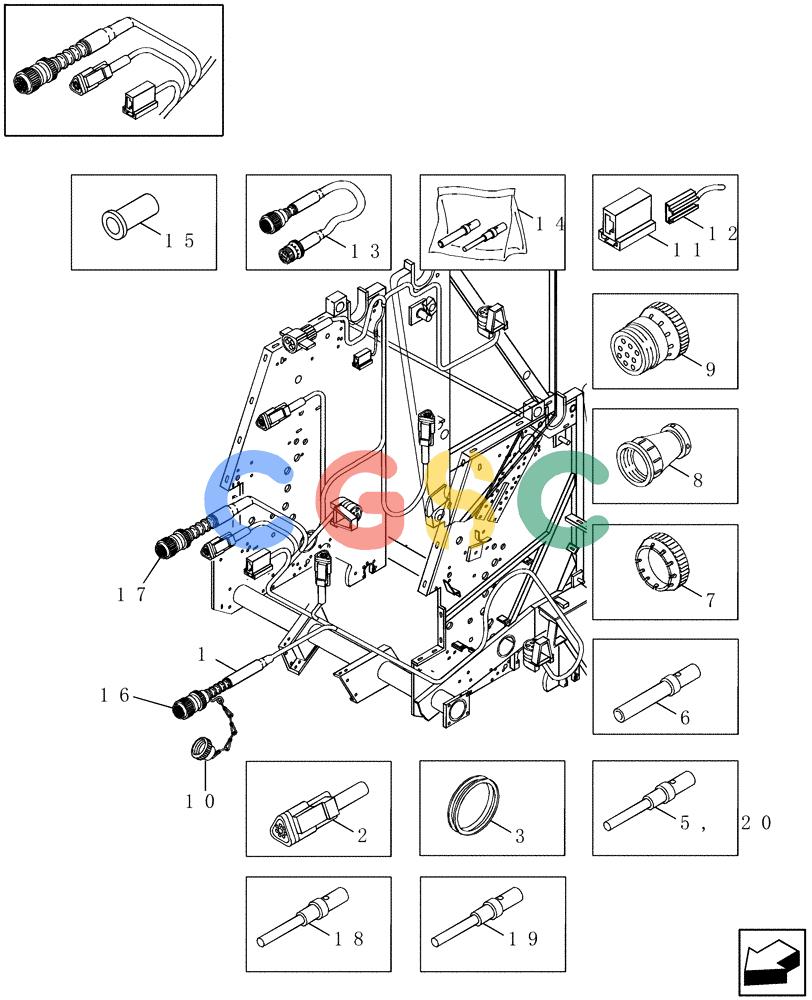

| 1. |
86592582
|
[1] |
WIRE HARNESS
|
NH
Net-Twine, Includes: Refs. 2, 3, 5, 11, 15, 12 & 15 - 20
|
| 2. |
9842514
|
[3] |
KIT
|
NH
3DT, Includes: Parts listed below Superseded by part number: 87695723, 87695646, 87695625, 87695580
|
| . . |
9842513
|
[1] |
PLUG
|
NH
Wedge Lock Superseded by part number: 87695646
|
| . . |
9842512
|
[1] |
ELEC CONNECTOR,Female, 16
|
NH
3S Plug Superseded by part number: 87695580
|
| . . |
9611173
|
[1] |
PLUG
|
NH
Wedge Lock, For 9611172 Superseded by part number: 87695625
|
| . . |
9611172
|
[1] |
WIRE CONNECTOR,16 SAE
|
NH
3P Recpetacle Superseded by part number: 87695723
|
| 3. |
792026
|
[1] |
LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk
|
NH
Split, Int, 1.00"
|
| 5. |
900363
|
[1] |
TERMINAL
|
NH
E18, Mates W/ Pin 900364 Superseded by part number: 87697947
|
| 6. |
900364
|
[1] |
TERMINAL CONNECTOR
|
NH
E18
|
| 7. |
9622758
|
[1] |
COUPLING RING
|
NH
9
|
| 8. |
850072
|
[1] |
COLLAR CLAMP
|
NH
Superseded by part number: 445525
|
| 9. |
9609191
|
[1] |
MULTIPOLE CONNECTOR,Female, 9 Pole
|
NH
9-pin Plug Superseded by part number: 291658A1
|
| 10. |
788614
|
[1] |
PROTECTING COVER
|
NH
|
| 11. |
248712
|
[1] |
BODY
|
NH
Superseded by part number: 87693325
|
| 12. |
900613
|
[1] |
TERMINAL
|
NH
E18, Mates W/Pin 900302 Superseded by part number: NH900613
|
| 13. |
86517891
|
[1] |
WIRE HARNESS
|
NH
Extension
|
| 14. |
851769
|
[1] |
KIT
|
NH
Pin Superseded by part number: 87716558, 87716526, 900370, 87696144, 87707258, 87695607, 380001706, 84068583, 87716505, 900361
|
| 15. |
9619682
|
[1] |
BUSHING
|
NH
MS 3420-12
|
| 16. |
86564210
|
[1] |
MULTIPOLE CONNECTOR,Female, 19 Pole
|
NH
19SN Superseded by part number: 87711987
|
| 17. |
86520117
|
[1] |
ELEC CONNECTOR,Male, 16 - 8 SAE
|
NH
18-cav Pin
|
| 18. |
900786
|
[1] |
ELEC. TERMINAL PIN,Male, 5 - 8 mm2
|
NH
Superseded by part number: 87697948
|
| 19. |
900316
|
[8] |
ELEC. TERMINAL PIN,Male, 2 -3.5 mm2
|
NH
E18, Mates W/ Pin 900302 Superseded by part number: 87696144
|
