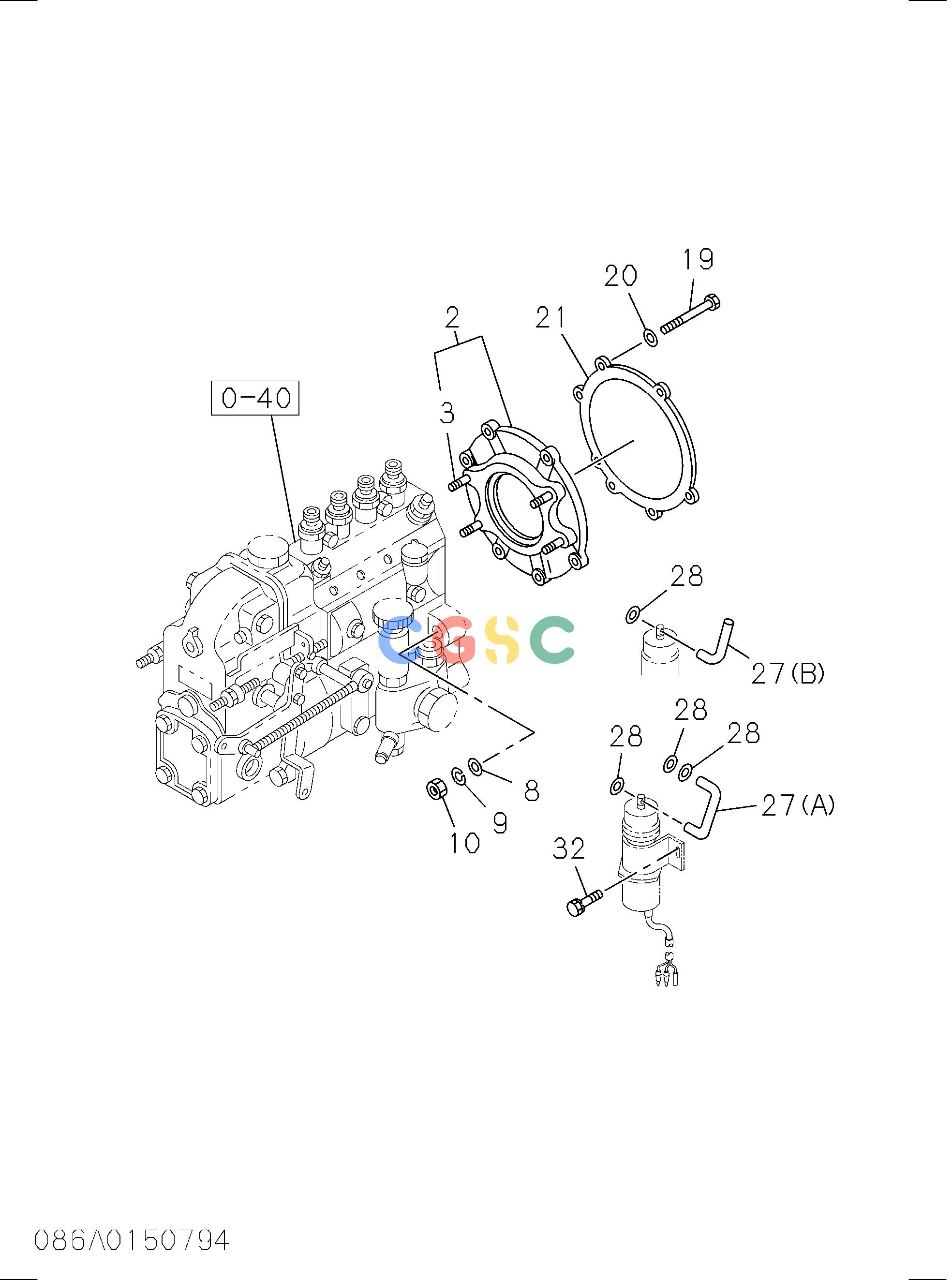

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 2. | 9197516010 | [1] | BRACKET; HSG & TIMER,INJ PUMP | |
| 3. | 9041010300 | [4] | STUD; HSG BRKT,INJ PUMP | |
| 8. | 9091645100 | [4] | WASHER; PL,HSG BRKT,INJ PUMP | |
| 9. | 9091506100 | [4] | WASHER; LK,HSG BRKT,INJ PUMP | |
| 10. | 5156390020 | [4] | NUT; HSG BRKT,INJ PUMP | |
| 19. | 5090000841 | [7] | BOLT; INJ PUMP | M8X55 W/LK WASHER |
| 21. | 1113190090 | [1] | GASKET; INJ PUMP | ALSO INCLUDED IN GASKET SET(ENGINE) |
