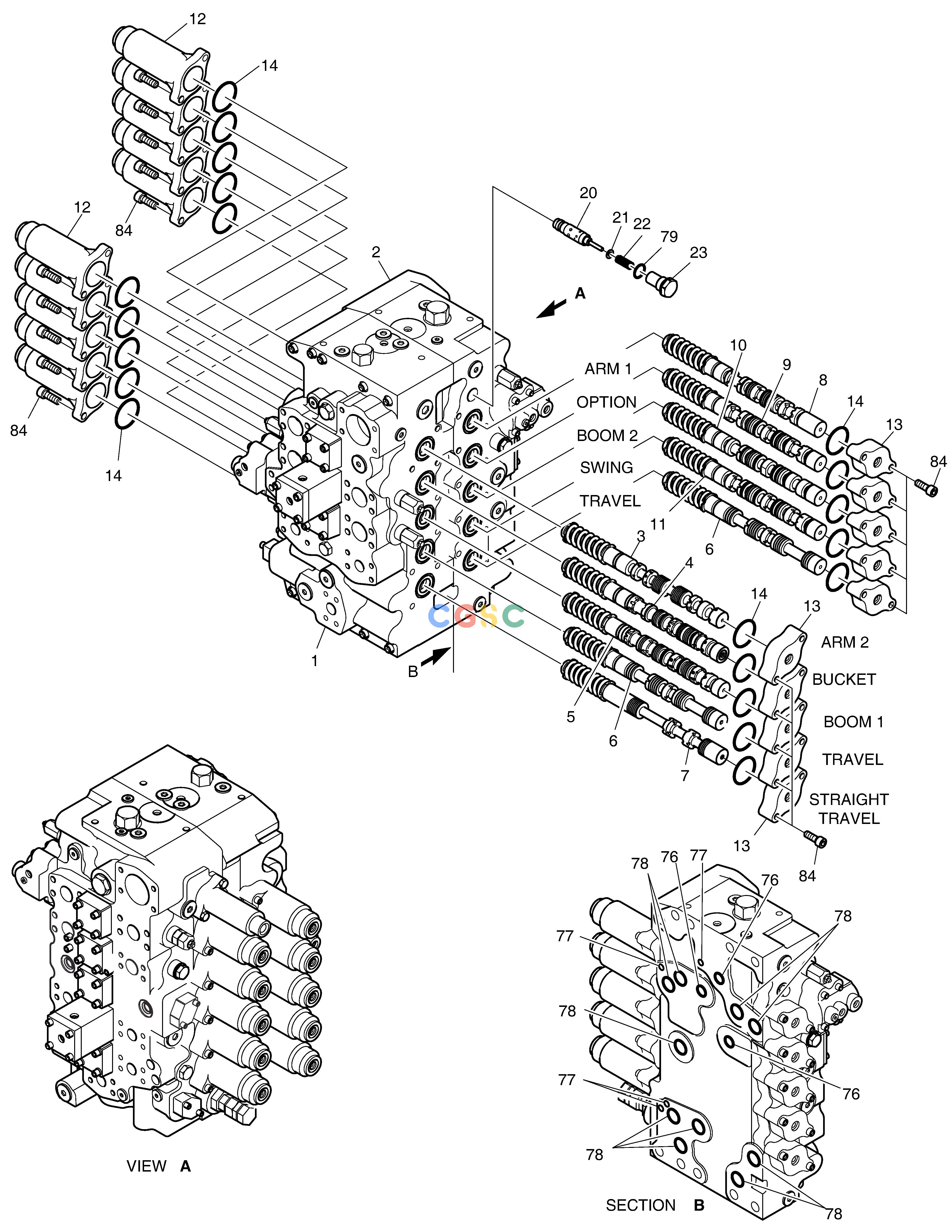

斗山零件查询CONTROL VALVE(2) DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01253
|
[1] |
|
|
| -. |
410105-00088E
|
[1] |
|
|
| 1. |
NA00544
|
[1] |
HOUSING;VALVE
|
|
| 10. |
K9001982
|
[1] |
SPOOL KIT (BOOM-2)
|
|
| 11. |
410207-00361
|
[1] |
|
|
| 12. |
430-00026
|
[10] |
CAP
|
|
| 13. |
430-00027
|
[10] |
CAP
|
|
| 14. |
S8010550
|
[20] |
O-RING
|
|
| 2. |
NA00544
|
[1] |
HOUSING;VALVE
|
|
| 20. |
K9001984
|
[1] |
SPOOL KIT;ARM REGEN
|
|
| 21. |
429-00024
|
[1] |
SEAT;SPRING
|
|
| 22. |
129-00104
|
[1] |
SPRING
|
|
| 23. |
181-00556
|
[1] |
PLUG
|
|
| 3. |
410207-00358
|
[1] |
|
|
| 4. |
K9001976
|
[1] |
SPOOL KIT (BUCKET)
|
|
| 5. |
410207-00359
|
[1] |
|
|
| 6. |
K9001978
|
[2] |
SPOOL KIT (TRAVEL)
|
|
| 7. |
K9001979
|
[1] |
SPOOL KIT (TRAVEL STRAIGHT)
|
|
| 76. |
180-00403
|
[4] |
. O-RING
|
|
| 77. |
180-00402
|
[6] |
O-RING
|
|
| 78. |
2.180-00494
|
[10] |
O-RING
|
|
| 79. |
180-00399
|
[1] |
O-RING
|
|
| 8. |
410207-00360
|
[1] |
|
|
| 84. |
S2215561
|
[40] |
BOLT;SOCKET
|
|
| 9. |
K9001981
|
[1] |
SPOOL KIT (OPTION)
|
|
