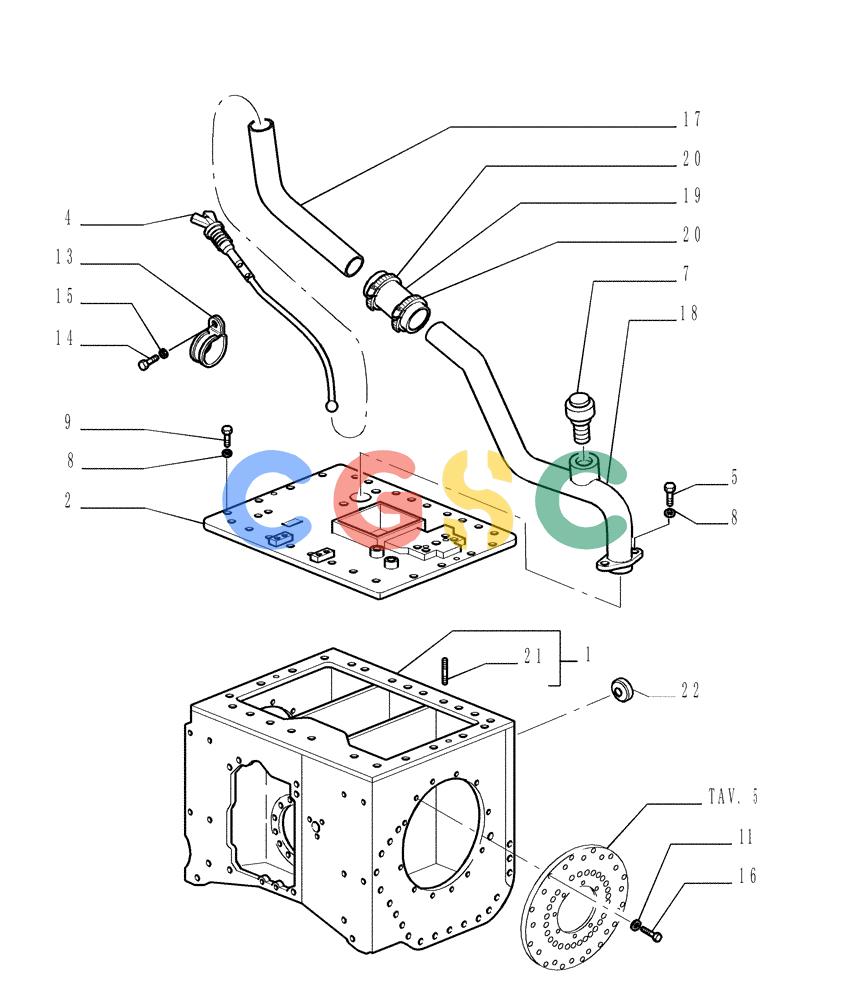

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.266[01]) - REAR TRANSMISSION - CASE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
187 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76075369 | [1] | TRANSMISSION HOUSING | LEC- ASSY |
| 2. | 76072291 | [1] | - ASSY SEE PAG.7 | |
| 4. | 76075170 | [1] | DIPSTICK | LEC |
| 5. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 7. | 70679375 | [1] | BREATHER | LEC |
| 8. | 14496631 | [27] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 9. | 16043431 | [25] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB8X1,25X40 Superseded by part number: 16605534 |
| 11. | 14496731 | [24] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 13. | 10448790 | [1] | CLAMP,30mm, Coat, 9mm Bolt Hole, P Type | LEC30 |
| 14. | 16043131 | [1] | BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd | LEC |
| 15. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 16. | 9824642 | [24] | BOLT,M12 x 1.75 x 42.68mm, Cl 10.9 | BHB Superseded by part number: 626-12035 |
| 17. | 76075168 | [1] | FLEXIBLE HOSE | LEC |
| 18. | 76075169 | [1] | FLEXIBLE HOSE | LEC |
| 19. | 76075203 | [1] | HYDRAULIC HOSE,30.00 mm ID x 60.00 mm | TOR Superseded by part number: 78100230 |
| 20. | 79083844 | [2] | HOSE CLAMP,25mm - 40mm, Worm Gear | LEC25-40 |
| 21. | 546500 | [4] | DOWEL | LEC |
| 22. | 76074954 | [1] | PLUG | LEC |
