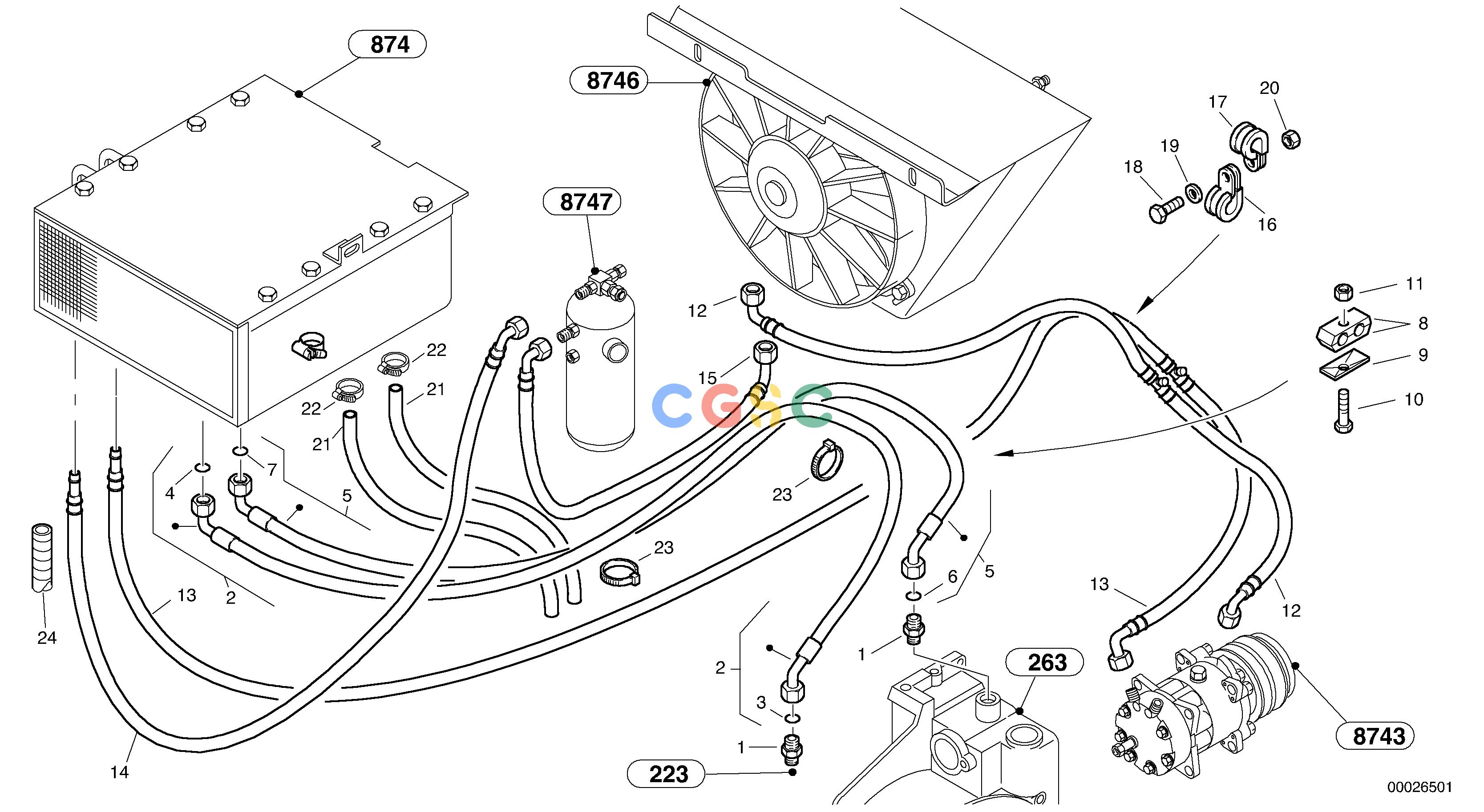

沃尔沃零件查询L40 Pipes - Air-conditioning systemTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM7091972
|
[2] |
Nipple
|
L22MB
|
| 2. |
ZM2811761
|
[1] |
Hose
|
|
| 3. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 4. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 5. |
ZM2811762
|
[1] |
Hose
|
|
| 6. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 7. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 8. |
ZM2802157
|
[1] |
Clamp half pair
|
|
| 9. |
ZM4343143
|
[1] |
Plate
|
|
| 10. |
VOE14370276
|
[1] |
Screw
|
M8x60
|
| 11. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 12. |
ZM2812558
|
[1] |
Hose
|
|
| 13. |
ZM2812557
|
[1] |
Hose
|
|
| 14. |
ZM2812559
|
[1] |
Hose
|
|
| 14. |
ZM2814639
|
[1] |
Hose
|
1910157?/
1920322?
|
| 15. |
ZM2812560
|
[1] |
Hose
|
|
| 15. |
ZM2814640
|
[1] |
Hose
|
1910157?/
1920322?
|
| 16. |
ZM8091927
|
[2] |
Clip
|
|
| 17. |
ZM5242701
|
[2] |
Pipe clip
|
|
| 18. |
VOE13955272
|
[2] |
Screw
|
M6x20
|
| 19. |
VOE955892
|
[2] |
Plain washer
|
B6,4
|
| 20. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 21. |
ZM4383092
|
[2] |
Hose
|
L = 1550MM
|
| 22. |
ZM2060781
|
[2] |
Clip
|
12x9
|
| 23. |
ZM4375500
|
[10] |
Cable clamp
|
|
| 24. |
ZM2815889
|
[1] |
Hose
|
|
