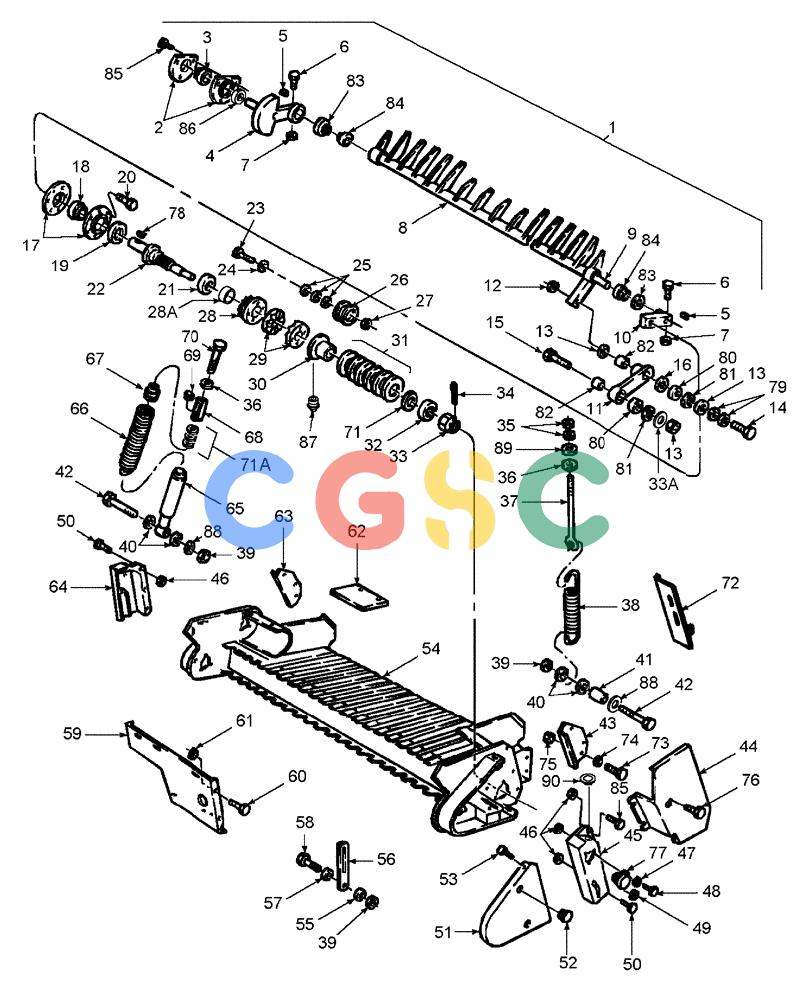

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Pickup, Wide Dual Cam
|
| 2. |
86636169
|
[2] |
FLANGED BEARING
|
NH
Bearing
|
| 3. |
617667R92
|
[1] |
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
|
CAS
Superseded by part number: 84484181
|
| 4. |
86634610
|
[1] |
COUNTERWEIGHT
|
NH
|
| 5. |
126-24
|
[2] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 6. |
814-12080
|
[3] |
BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 43158
|
| 7. |
832-46412
|
[6] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 8. |
86634561
|
[1] |
FEEDER
|
NH
|
| 9. |
86509398
|
[1] |
SHAFT
|
NH
|
| 10. |
86634609
|
[1] |
ARM
|
NH
|
| 11. |
86634527
|
[1] |
ARM
|
NH
Superseded by part number: 87043492
|
| 12. |
232-41412
|
[1] |
LOCK NUT,3/4"-10, GC
|
CAS
Superseded by part number: 280375
|
| 13. |
518587
|
[1] |
SPACER,12.75mm ID x 25.53mm OD x 22.23mm L
|
NH
|
| 14. |
413-1248
|
[1] |
BOLT,Hex, 3/4" - 10 x 3", Gr 5
|
CAS
Superseded by part number: 87337
|
| 15. |
413-1240
|
[1] |
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 9706701
|
| 16. |
600083
|
[1] |
WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk
|
NH
|
| 17. |
86635012
|
[2] |
FLANGE
|
NH
Bearing
|
| 18. |
571588R92
|
[1] |
BALL BEARING,1.3755" ID x 72 mm OD x 1"
|
IH
Superseded by part number: 47066
|
| 19. |
517645R11
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577188
|
| 20. |
614-10020
|
[6] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 21. |
66849
|
[1] |
WASHER,51.59mm ID x 76.2mm OD x 3.17mm Thk
|
NH
Nylon, 2"
|
| 22. |
86515253
|
[1] |
SHAFT
|
NH
|
| 23. |
811-12060
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8
|
NH
Superseded by part number: 412097
|
| 24. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 25. |
495-11053
|
[1] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 26. |
86550790
|
[1] |
IDLER WHEEL,90mm OD
|
NH
Chain
|
| 27. |
829-1412
|
[3] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 28. |
86637255
|
[1] |
SPROCKET ASSY.
|
NH
Includes: Ref. 28A Superseded by part number: 87047934
|
| 28A. |
46962
|
[1] |
BUSHING,2" ID x 2.13" OD x 1.25" L
|
NH
|
| 29. |
714379
|
[2] |
CLUTCH
|
NH
Jaw Superseded by part number: 87639816
|
| 30. |
86637169
|
[1] |
HUB
|
NH
|
| 31. |
9822385
|
[5] |
BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk
|
NH
|
| 32. |
9845592
|
[1] |
RING
|
NH
Superseded by part number: 84266202
|
| 33. |
280215
|
[1] |
SLOTTED NUT,1 1/8"-12, G5
|
NH
|
| 33A. |
26558
|
[1] |
WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk
|
NH
|
| 34. |
432-1228
|
[1] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 35. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 36. |
65319
|
[3] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 37. |
45314
|
[1] |
EYEBOLT
|
NH
G2, 3/8"-16 x 17-1/4"
|
| 38. |
86512547
|
[1] |
SPRING,Extension, 1.94" OD x 13 - 1/8" L
|
NH
Extension
|
| 39. |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 40. |
213404
|
[4] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| 41. |
86500987
|
[1] |
SPACER
|
NH
|
| 42. |
814-10080
|
[2] |
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 129796A1
|
| 43. |
86628306
|
[1] |
FILLER
|
NH
LH
|
| 44. |
86619214
|
[1] |
SHIELD
|
NH
|
| 45. |
86634556
|
[1] |
SUPPORT ASSY.
|
NH
LH
|
| 46. |
825-51410
|
[22] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 47. |
825-1408
|
[6] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 48. |
811-8020
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 49. |
825-5148
|
[19] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 50. |
811-10020
|
[5] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 51. |
86619277
|
[2] |
SHIELD
|
NH
|
| 52. |
87028747
|
[2] |
PLUG
|
PA
Plastic, for 1" Dia. Hole
|
| 53. |
381014
|
[8] |
SCREW,Flng, M8 x 16mm
|
NH
HWH, M8 x 1.25 x 16
|
| 54. |
86636656
|
[1] |
GUARD ASSY.
|
NH
|
| 56. |
9804832
|
[1] |
BAR
|
NH
|
| 57. |
287129
|
[2] |
SPECIAL WASHER
|
NH
Spacer, 3/8" ID, .294" Thk, Hardened
|
| 58. |
614-10030
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 59. |
86620940
|
[1] |
SHIELD
|
NH
LH
|
| 62. |
855657
|
[2] |
PAD
|
NH
|
| 63. |
86628307
|
[1] |
FILLER
|
NH
RH
|
| 64. |
86634558
|
[1] |
SUPPORT ASSY.
|
NH
RH
|
| 65. |
86570492
|
[1] |
SHOCK ABSORBER
|
NH
|
| 66. |
9614538
|
[1] |
SPRING
|
NH
Extension
|
| 67. |
86636647
|
[1] |
SPRING NUT
|
NH
Spring
|
| 68. |
86637305
|
[1] |
LINK
|
NH
Shock Absorber
|
| 69. |
86509499
|
[1] |
JAM NUT,3/8"-16, G2
|
ZED
|
| 70. |
86570494
|
[1] |
BOLT
|
NH
Special
|
| 71. |
166490
|
[1] |
WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk
|
NH
Hardened, 2"
|
| 72. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 74. |
285072
|
[6] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
(3/8")
|
| 77. |
86639836
|
[2] |
COVER
|
NH
|
| 78. |
126-33
|
[1] |
WOODRUFF KEY,#D, 5/16" x 1 1/4"
|
CAS
Superseded by part number: 87831
|
| 80. |
T39594
|
[2] |
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
|
CAS
Superseded by part number: 87029275
|
| 81. |
100-21175
|
[2] |
SNAP RING,1.75", Int, #175
|
CAS
Superseded by part number: 66967
|
| 82. |
87644323
|
[4] |
SPACER,19.18mm ID x 28.54mm OD x 7.75mm Thk
|
NH
|
| 83. |
86636651
|
[2] |
COVER
|
NH
|
| . . |
178514
|
[2] |
WASHER
|
NH
Plastic, 1"
|
| 84. |
204807C91
|
[3] |
BEARING ASSY,25.4mm ID x 52mm OD x 15mm W
|
CAS
|
| 85. |
905-10020
|
[18] |
BOLT,Hex Flg, M10 x 20mm
|
CAS
Superseded by part number: 274249
|
| 86. |
557995R11
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47508396
|
| 87. |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 89. |
9827956
|
[1] |
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
|
NH
Heat Treated, 3/8"
|
| 90. |
604727
|
[2] |
PLUG
|
NH
Button
|
