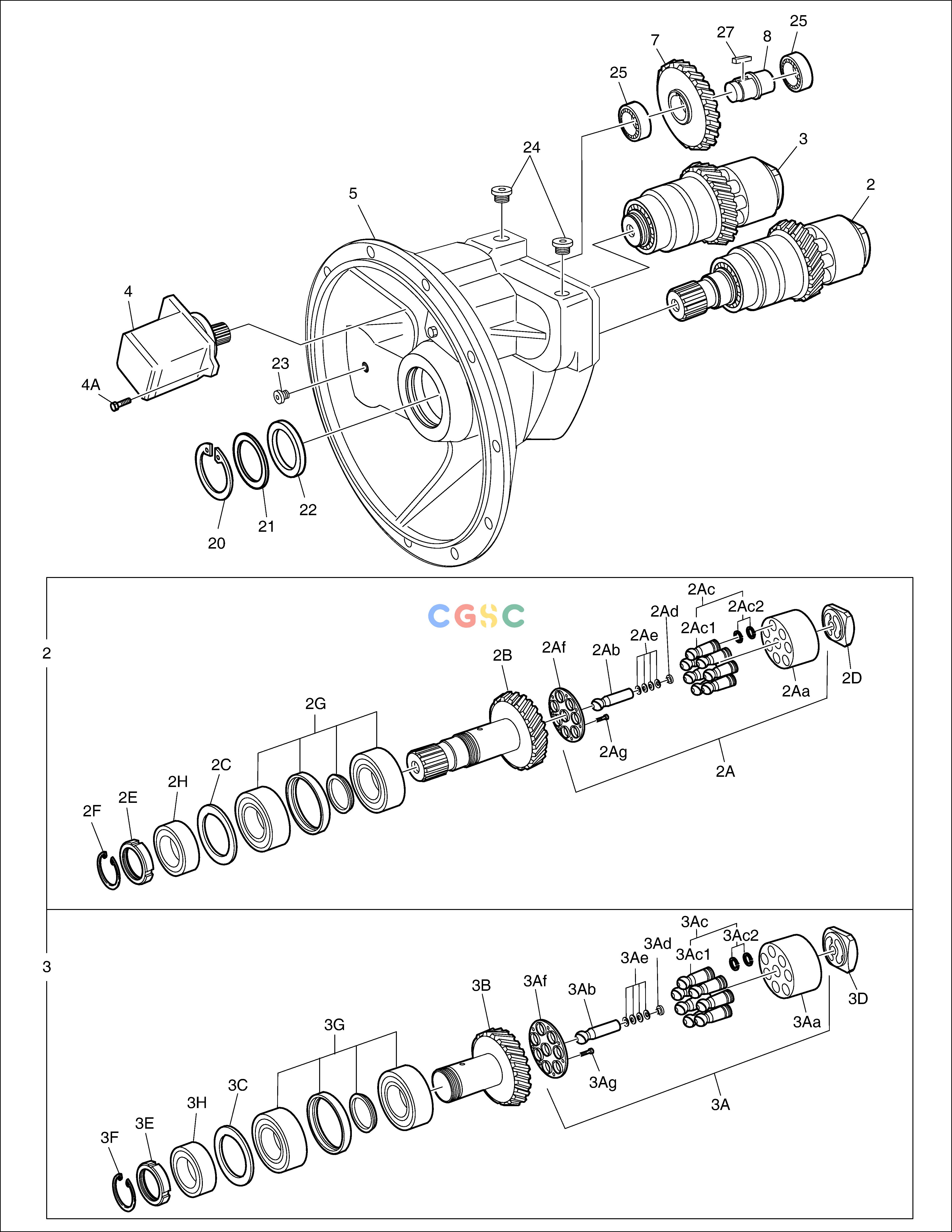

斗山零件查询MAIN PUMP - PUMP DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
210204-00029
|
[1] |
|
|
| 20. |
S6510800
|
[1] |
RING,RETAINING
|
|
| 21. |
401106-00226
|
[1] |
|
|
| 22. |
2.114-00175
|
[1] |
SHIM
|
|
| 23. |
2.120-00611
|
[1] |
SCREW;LOCKING
|
|
| 24. |
2.120-00624
|
[3] |
SCREW;LOCKING
|
|
| 25. |
2.109-00192
|
[2] |
BEARING;PLAIN ROLLER
|
|
| 27. |
2.405-00154
|
[1] |
SHAFT;KEY
|
|
| 2A. |
K9001909
|
[1] |
ROTARY GROUP;SECTION
|
|
| 2Aa. |
2.410-00138
|
[1] |
CYLINDER
|
|
| 2Ab. |
K9001910
|
[1] |
PIN;CENTER
|
|
| 2Ac. |
K9001911
|
[7] |
PISTON & PISTON RINGS
|
|
| 2Ac1. |
NA00796
|
[1] |
PISTON
|
|
| 2Ac2. |
NA00986
|
[2] |
|
|
| 2Ad. |
K9001912
|
[1] |
COLLAR;SPRING
|
|
| 2Ae. |
2.453-00025
|
[4] |
CUP SPRING
|
|
| 2Af. |
2.412-00224
|
[1] |
PLATE;RETAINING
|
|
| 2Ag. |
K9001916
|
[14] |
SCREW;PAN HEAD
|
|
| 2B. |
K9001913
|
[1] |
SHAFT;DRIVE
|
|
| 2C. |
2.114-00167
|
[1] |
SHIM
|
|
| 2C. |
2.114-00168
|
[1] |
SHIM
|
|
| 2C. |
2.114-00169
|
[1] |
SHIM
|
|
| 2D. |
250201-01408
|
[1] |
|
|
| 2E. |
2.180-01026
|
[1] |
PLATE;BACK-UP
|
|
| 2E. |
2.180-01027
|
[1] |
PLATE;BACK-UP
|
|
| 2E. |
2.180-01028
|
[1] |
PLATE;BACK-UP
|
|
| 2E. |
2.180-01029
|
[1] |
PLATE;BACK-UP
|
|
| 2E. |
2.180-01030
|
[1] |
PLATE;BACK-UP
|
|
| 2E. |
2.180-01031
|
[1] |
PLATE;BACK-UP
|
|
| 2E. |
2.180-01032
|
[1] |
PLATE;BACK-UP
|
|
| 2F. |
K9001914
|
[1] |
RING;RETAINING
|
|
| 2G. |
2.109-00264
|
[1] |
BEARING;UNIT TAPERED-ROLLER
|
|
| 2H. |
2.109-00248
|
[1] |
BEARING;TAPERED-ROLLER
|
|
| 3. |
210204-00030
|
[1] |
|
|
| 3A. |
K9001909
|
[1] |
ROTARY GROUP;SECTION
|
|
| 3Aa. |
2.410-00138
|
[1] |
CYLINDER
|
|
| 3Ab. |
K9001910
|
[1] |
PIN;CENTER
|
|
| 3Ac. |
K9001911
|
[7] |
PISTON & PISTON RINGS
|
|
| 3Ac1. |
NA00796
|
[1] |
PISTON
|
|
| 3Ac2. |
NA00986
|
[2] |
|
|
| 3Ad. |
K9001912
|
[1] |
COLLAR;SPRING
|
|
| 3Ae. |
2.453-00025
|
[4] |
CUP SPRING
|
|
| 3Af. |
2.412-00224
|
[1] |
PLATE;RETAINING
|
|
| 3Ag. |
K9001916
|
[14] |
SCREW;PAN HEAD
|
|
| 3B. |
K9001917
|
[1] |
SHAFT;DRIVE
|
|
| 3C. |
2.114-00170
|
[1] |
SHIM
|
|
| 3C. |
2.114-00171
|
[1] |
SHIM
|
|
| 3C. |
2.114-00172
|
[1] |
SHIM
|
|
| 3C. |
2.114-00173
|
[1] |
SHIM
|
|
| 3C. |
2.114-00174
|
[1] |
SHIM
|
|
| 3D. |
250201-01409
|
[1] |
|
|
| 3E. |
2.180-01026
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01033
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01027
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01028
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01029
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01030
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01031
|
[1] |
PLATE;BACK-UP
|
|
| 3E. |
2.180-01032
|
[1] |
PLATE;BACK-UP
|
|
| 3F. |
K9001914
|
[1] |
RING;RETAINING
|
|
| 3G. |
2.109-00265
|
[1] |
BEARING;UNIT TAPERED-ROLLER
|
|
| 3H. |
2.109-00248
|
[1] |
BEARING;TAPERED-ROLLER
|
|
| 4. |
400910-00134
|
[1] |
|
|
| 4A. |
2.120-00829
|
[2] |
BOLT;SOCKET M10X20
|
|
| 5. |
NA00539
|
[1] |
|
|
| 7. |
130418-00619
|
[1] |
|
|
| 8. |
K9001920
|
[1] |
SHAFT;STUB
|
|
