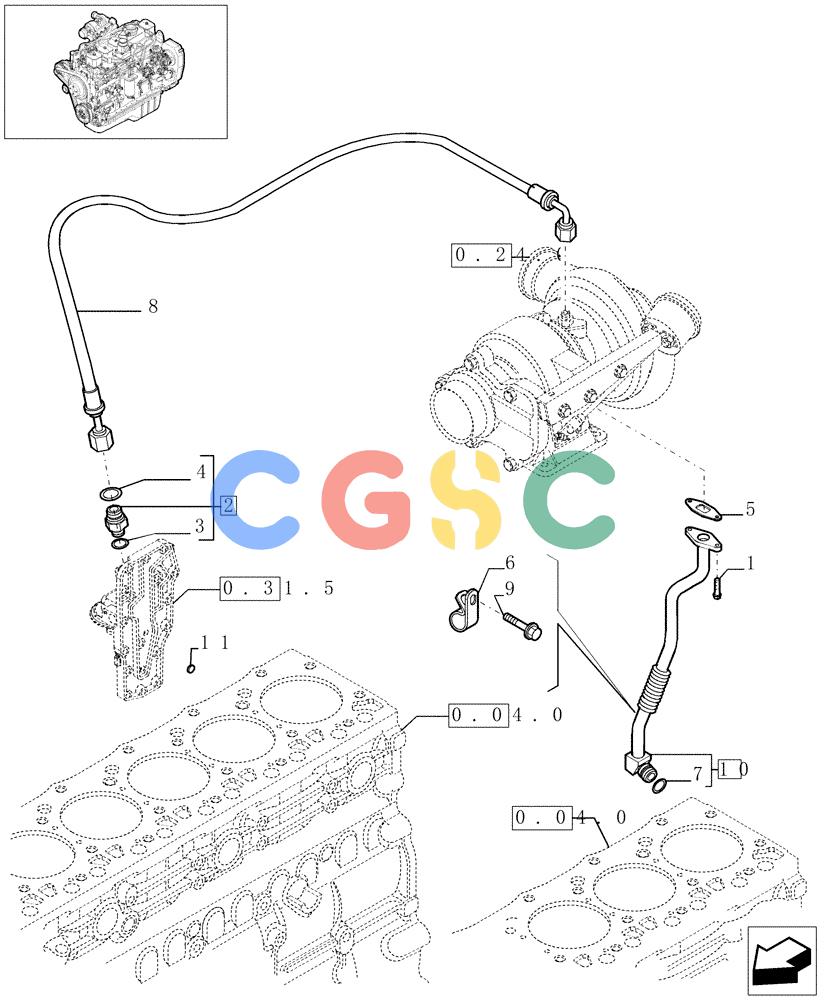

神钢零件查询(F4GE9684C J600) - ENGINE 504124795 - 920019900 (1/13-) (0.30.5[01]) - PIPING - ENGINE OIL (504019901) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
625 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4895107 | [1] | HYD CONNECTOR,11/16"-16 x M12 | TOR- Assy Superseded by part number: |
| 3. | 4899107 | [1] | O-RING,1.8mm Thk x 10.52mm ID | TOR |
| 4. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 6. | 4899827 | [1] | SUPPORT | SM |
| 7. | 4899058 | [2] | O-RING,0.674" ID x 0.88" OD x 0.103" | TOR Superseded by part number: 17281881 |
| 8. | 2852679 | [1] | HYDRAULIC HOSE | TOR Superseded by part number: 504084095 |
| 9. | 2852134 | [1] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
| 10. | 2852919 | [1] | RIGID TUBE | TOR- ASSY Superseded by part number: |
| 11. | 4895089 | [1] | PLUG,0.886" L | TOR.886" OD |
