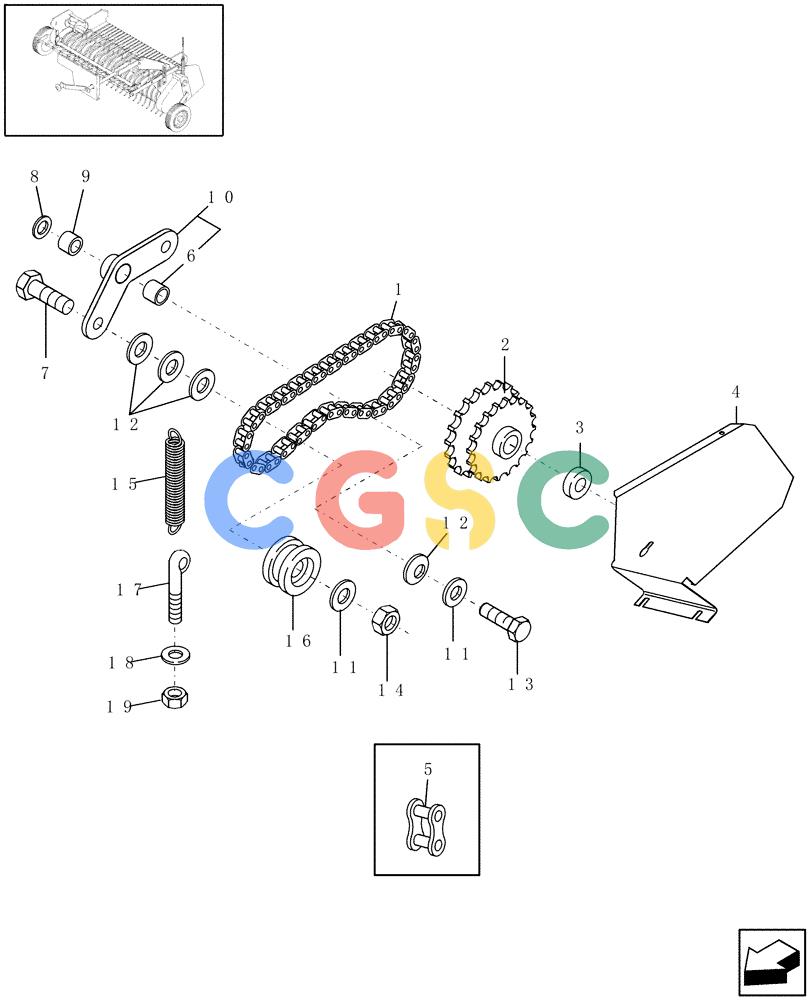

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (081) - WIDE PICKUP, ROLLER CHAIN Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86549194
|
[1] |
CHAIN,60, 62 Links x 19.05mm = 1181.1mm
|
NH
#60, 3/4"-pitch, 62 Pitches, Chrome, Includes: (1) Ref. 5
|
| 2. |
86637270
|
[1] |
DRIVEN SPROCKET
|
NH
|
| 3. |
692300
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk
|
NH
2" OD x 3/16" Thk
|
| 4. |
86619214
|
[1] |
SHIELD
|
NH
|
| 5. |
86537477
|
[1] |
LINK,19.05mm Pitch
|
NH
RC60
|
| 6. |
40293
|
[1] |
BUSHING,19mm ID x 22.25mm OD x 25.4mm L
|
NH
.752" ID x .875" OD x 1.000" Lg.
|
| 6. |
87040968
|
[1] |
BUSHING
|
PA
.752" ID x .875" OD x .750" Lg. Superseded by part number: 86573067
|
| 7. |
811-12060
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8
|
NH
Superseded by part number: 412097
|
| 8. |
600083
|
[1] |
WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk
|
NH
|
| 9. |
86631123
|
[1] |
SPACER,12.95mm ID x 19.05mm OD x 27mm L
|
NH
1-1/16" Lg
|
| 10. |
86636654
|
[1] |
ARM
|
NH
|
| 11. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 12. |
495-11053
|
[4] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 13. |
814-12050
|
[1] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| 14. |
829-1412
|
[1] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 15. |
86566303
|
[1] |
SPRING
|
NH
|
| 16. |
86550790
|
[1] |
IDLER WHEEL,90mm OD
|
NH
Chain
|
| 17. |
616723
|
[1] |
EYEBOLT
|
NH
G2, 3/8"-16 x 5"
|
| 18. |
9827956
|
[1] |
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
|
NH
1" OD, Heat Treated
|
| 19. |
425-106
|
[1] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
