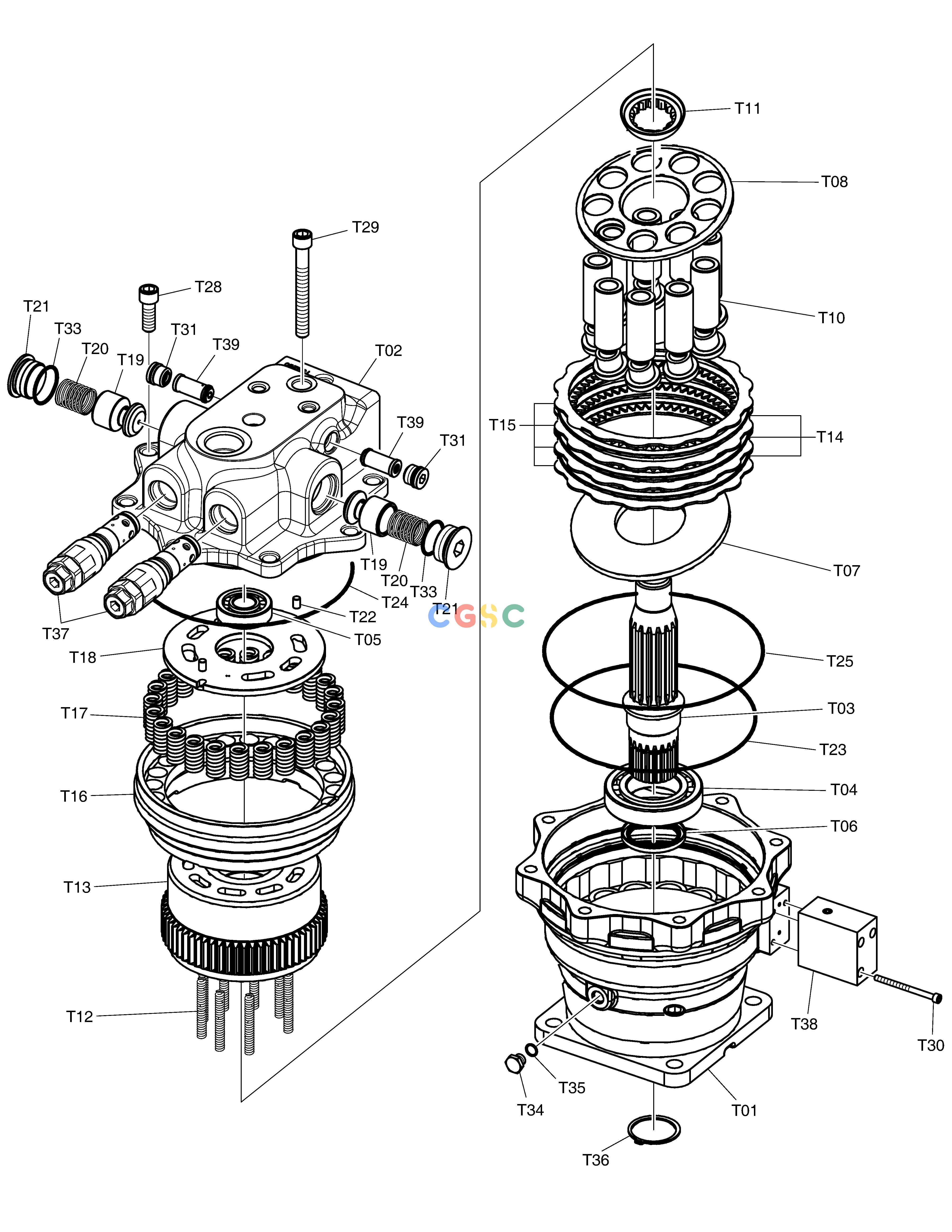

斗山零件查询SWING MOTOR DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01105
|
[1] |
|
|
| -. |
170303-00073
|
[1] |
|
|
| T01. |
NA00342
|
[1] |
CASING
|
|
| T02. |
110913-00161A
|
[1] |
|
|
| T03. |
130712-00662
|
[1] |
|
|
| T04. |
140107-00257
|
[1] |
|
|
| T05. |
K9004567
|
[1] |
BEARING;ROLLER
|
|
| T06. |
401106-00209
|
[1] |
|
|
| T07. |
250201-01462
|
[1] |
|
|
| T08. |
110943-00045
|
[1] |
|
|
| T10. |
130602-00690
|
[1] |
|
|
| T11. |
110202-00040
|
[1] |
|
|
| T12. |
111601-00355
|
[9] |
|
|
| T13. |
150102-00385
|
[1] |
|
|
| T14. |
130113-00019
|
[3] |
|
|
| T15. |
250201-01442
|
[4] |
|
|
| T16. |
130602-00689
|
[1] |
|
|
| T17. |
129-00062
|
[24] |
SPRING;BRAKE
|
|
| T18. |
250201-01463
|
[1] |
|
|
| T19. |
410205-00054
|
[2] |
|
|
| T20. |
111601-00361
|
[2] |
|
|
| T21. |
430221-00456
|
[2] |
|
|
| T22. |
S5710881
|
[2] |
PIN
|
|
| T23. |
2180-1217D160
|
[1] |
O-RING
|
|
| T24. |
401002-00272
|
[1] |
|
|
| T25. |
2180-1217D163
|
[1] |
|
|
| T28. |
S2218461
|
[7] |
BOLT;SOCKET M14X2.0X40
|
|
| T29. |
S2220066
|
[1] |
BOLT;SOCKET
|
|
| T30. |
S2206261
|
[3] |
BOLT;SOCKET
|
|
| T31. |
430221-00070
|
[3] |
PLUG
|
|
| T34. |
2181-1950D1
|
[1] |
PLUG
|
|
| T35. |
S8000115
|
[1] |
.. O-RING
|
|
| T36. |
S6500550
|
[1] |
RING;RETAINER
|
|
| T37. |
410127-00137
|
[2] |
|
|
| T38. |
K9004569A
|
[1] |
|
|
| T39. |
410116-00311
|
[2] |
VALVE;SWING REACTIONLESS
|
|
