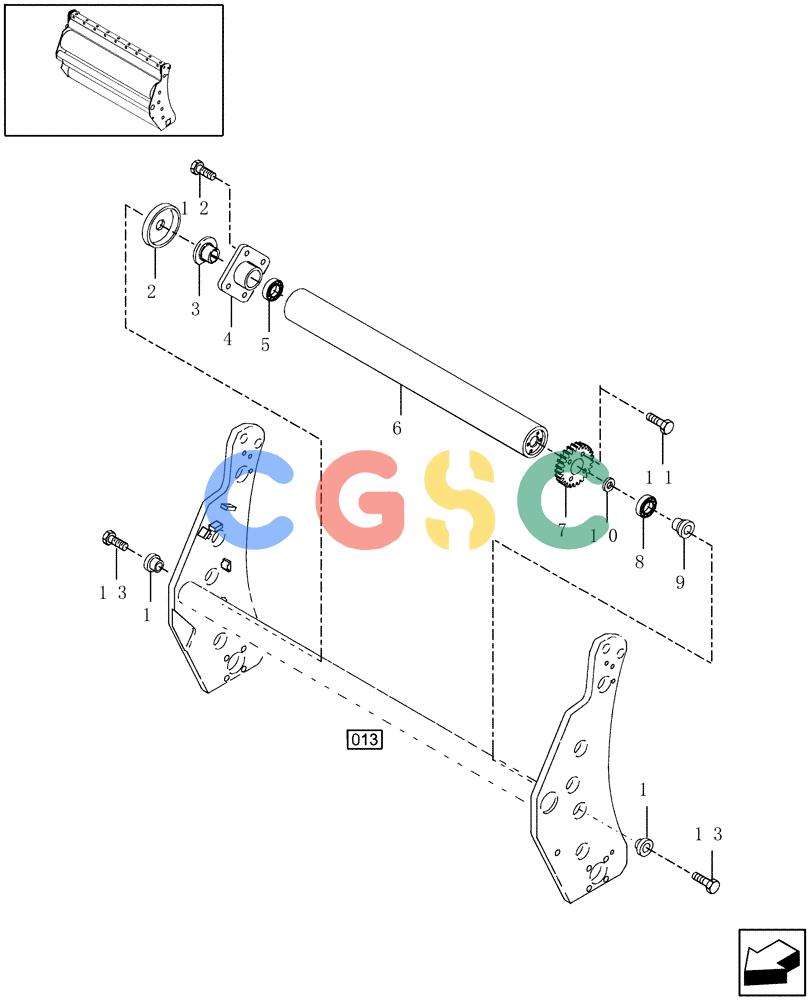

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (023) - MIDDLE ROLLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87030468
|
[2] |
HUB
|
PA
Superseded by part number: 87398962
|
| 2. |
86628107
|
[1] |
SHIELD
|
NH
|
| 3. |
9806396
|
[1] |
SUPPORT
|
NH
|
| 4. |
86636892
|
[1] |
FLANGE
|
NH
Includes: Ref. 5
|
| 5. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
To Service Bearing, Order Ref. 4
|
| 6. |
86637006
|
[1] |
ROLLER
|
NH
Middle
|
| 7. |
86614686
|
[1] |
GEAR
|
NH
Roll, 24T, Includes: Ref. 8 Superseded by part number: 87052121
|
| 9. |
9803325
|
[1] |
SUPPORT
|
NH
|
| 10. |
100-11177
|
[1] |
SNAP RING,#177, Ext
|
CAS
Superseded by part number: 168104
|
| 11. |
61-33128
|
[1] |
HEX SOC SCREW,5/16"-18 x 1 3/4"
|
CAS
Except Silage Special Superseded by part number: 81972
|
| 11. |
413-840
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
Required for Silage Special Superseded by part number: 87972
|
| 12. |
614-10030
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 13. |
814-12045
|
[2] |
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
|
CAS
Superseded by part number: 9628065
|
