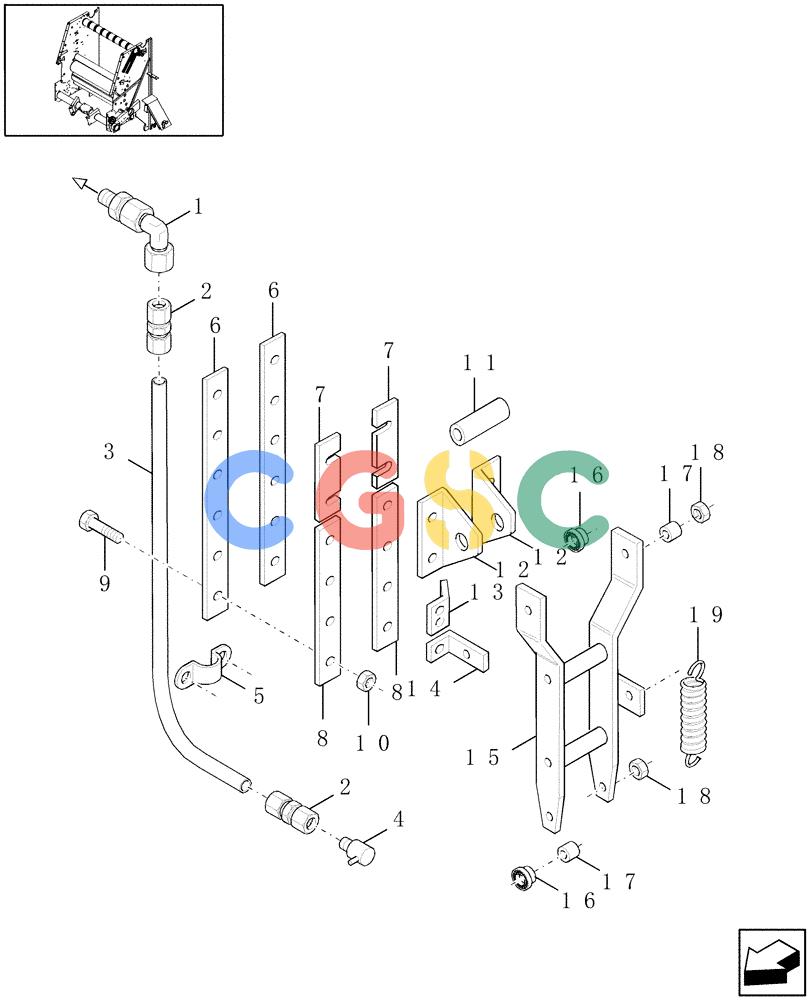

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (026) - DECLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
691873
|
[1] |
ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT
|
NH
Swivel, 90° Superseded by part number: 219-416
|
| 2. |
11787
|
[2] |
FITTING,3/8"-24 Fem x 1/8" NPT
|
NH
Includes: 13362 Sleeve & 13367 Nut Superseded by part number: 84341119, 84341119, 87426476
|
| 3. |
9846836
|
[1] |
PLASTIC-RUBBER TUBE,3.58mm ID x 1000mm L
|
NH
|
| 4. |
86050275
|
[1] |
LUBE NIPPLE
|
NH
Straight, 1/8"
|
| 5. |
515-2163
|
[1] |
WIRE CLAMP,1/8", Insul, 1/4" Bolt
|
CAS
Superseded by part number: 80272535
|
| 6. |
86636874
|
[2] |
BAR
|
NH
|
| 7. |
86636889
|
[1] |
SHIM
|
NH
|
| 8. |
86636784
|
[2] |
BAR
|
NH
|
| 9. |
811-10040
|
[12] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 9. |
811-10050
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 350459
|
| 10. |
825-51410
|
[12] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 11. |
86636660
|
[1] |
TUBE,0.75" OD x 4.50" L
|
NH
|
| 12. |
86636785
|
[2] |
ANGLE
|
NH
|
| 13. |
86636875
|
[1] |
BRACKET
|
NH
|
| 14. |
86636797
|
[1] |
ANGLE
|
NH
|
| 15. |
86636981
|
[1] |
FORK
|
NH
Superseded by part number: 84148598
|
| 16. |
86617019
|
[4] |
CAM FOLLOWER
|
NH
|
| 17. |
86636890
|
[4] |
SPACER
|
NH
|
| 18. |
280474
|
[4] |
NUT,7/16"-20, GC
|
NH
|
| 19. |
86559592
|
[2] |
SPRING,Extension, 0.99" OD x 6-1/4" L
|
NH
Extension
|
