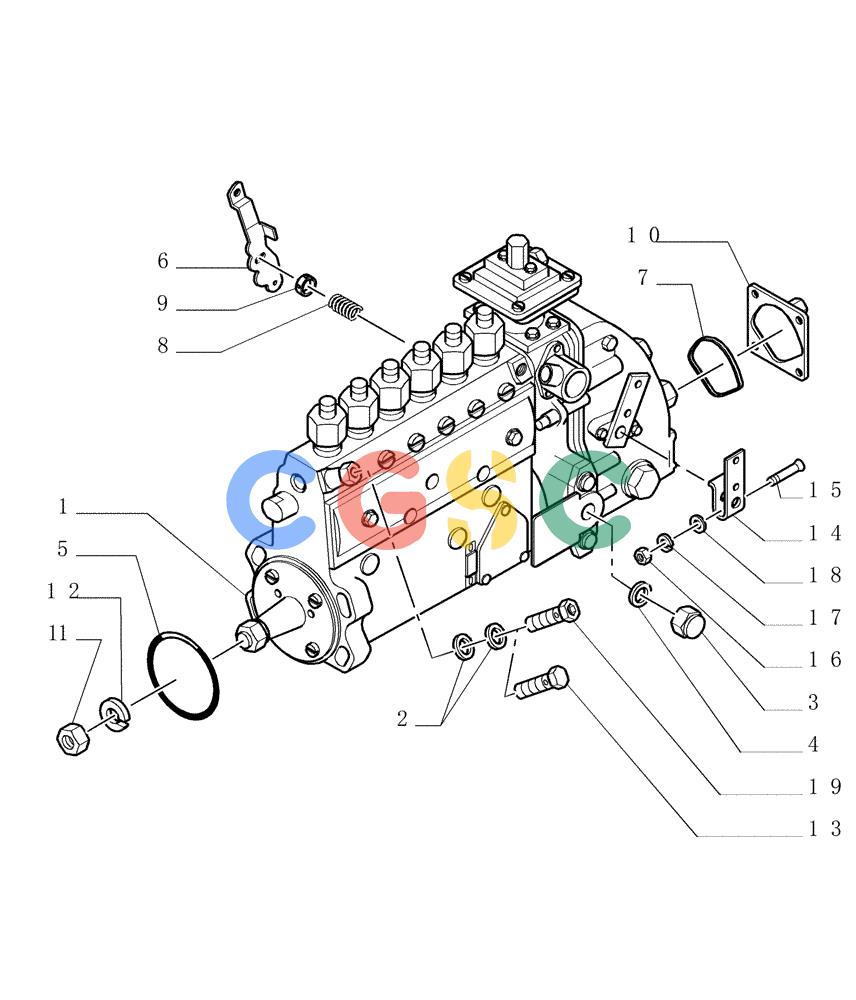

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (0.140[01]) - INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
609 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76193668 | [1] | FUEL INJECTION PUMP | TORBOSCH |
| 2. | 76191787 | [2] | SEALING WASHER | TOR Superseded by part number: 1487379 |
| 3. | 76191788 | [1] | PLUG | TOR Superseded by part number: J912888 |
| 4. | 76191789 | [1] | SEALING WASHER | TOR Superseded by part number: 722441 |
| 5. | 75285746 | [1] | O-RING | CMI Superseded by part number: A41856 |
| 6. | 76191790 | [1] | LEVER | TOR Superseded by part number: J910979 |
| 7. | 76191799 | [1] | GASKET | TOR |
| 8. | 76191791 | [1] | SPRING | TOR Superseded by part number: J912890 |
| 9. | 76191792 | [1] | RETAINER CUP | TOR |
| 10. | 76191800 | [1] | COVER | TOR Superseded by part number: REFERENCE |
| 11. | 75286085 | [1] | WASHER | CMI Superseded by part number: A41852 |
| 12. | 75286086 | [1] | NUT | CMI Superseded by part number: A77775 |
| 13. | 76193236 | [1] | SCREW | TOR |
| 14. | 76191794 | [1] | LEVER | TOR Superseded by part number: REFERENCE |
| 15. | 76191804 | [1] | SCREW | TOR |
| 16. | 76191801 | [1] | NUT | TOR |
| 17. | 76191802 | [1] | LOCK WASHER | TOR |
| 18. | 76191803 | [1] | WASHER | TOR |
| 19. | 76191786 | [1] | HYDRAULIC VALVE | TOR Superseded by part number: 87409051 |
