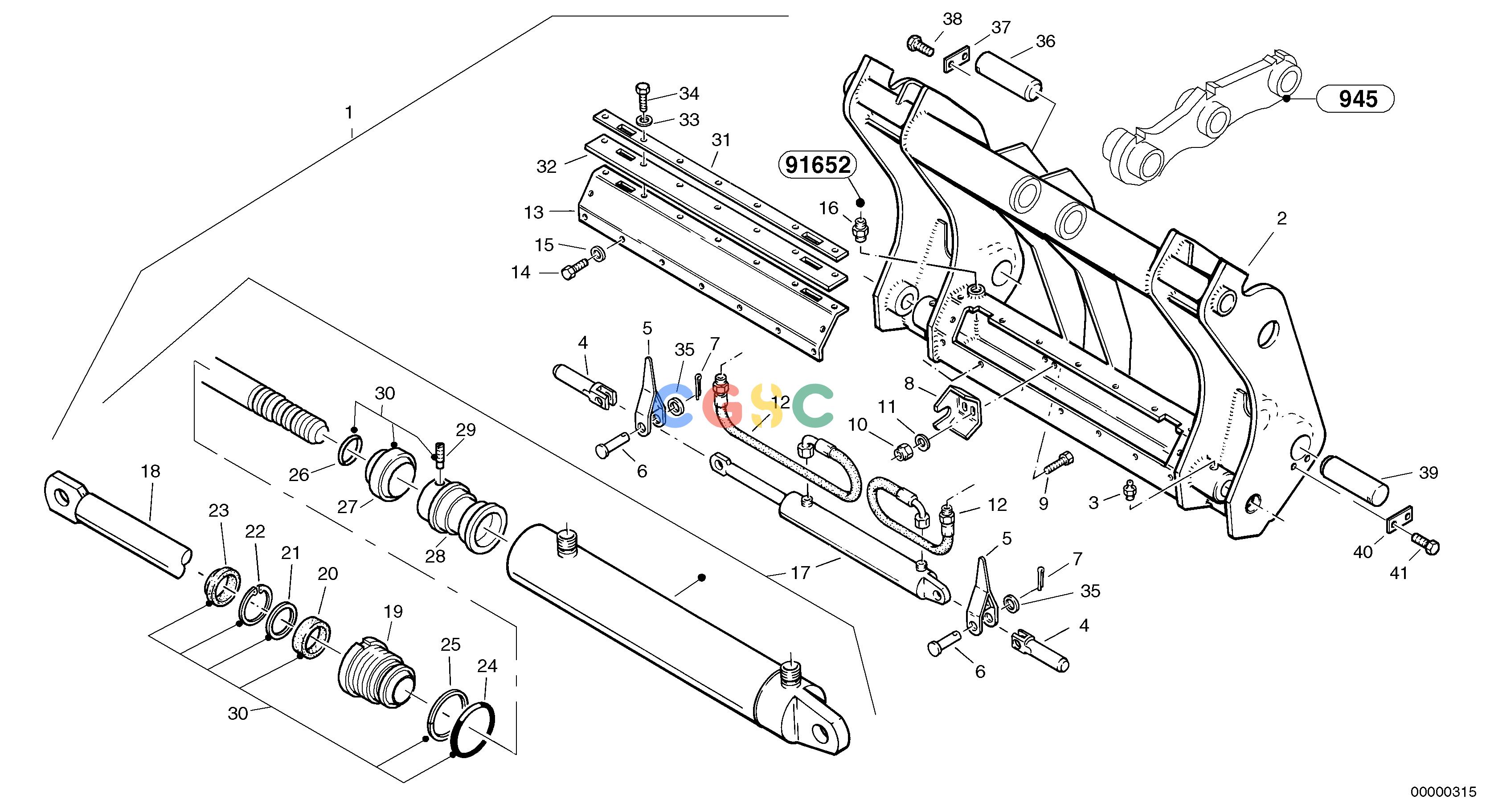

沃尔沃零件查询L40 Attachment mounting plate - Quick change, hydraulic - TpvTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
828 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813127
|
[1] |
Attaching bracket
|
|
| 10. |
ZM4334181
|
[2] |
Nut
|
VM12
|
| 11. |
VOE60110353
|
[2] |
Washer
|
B13
|
| 12. |
VOE932282
|
[2] |
Hose assembly
|
|
| 13. |
ZM2808598
|
[1] |
Cover plate
|
|
| 14. |
ZM7095370
|
[9] |
Screw
|
M8x16
|
| 15. |
VOE11305837
|
[9] |
Washer
|
B 8,4
|
| 16. |
VOE4741736
|
[2] |
Nipple
|
|
| 17. |
VOE11157115
|
[1] |
Hydraulic cylinder
|
|
| 18. |
VOE11999364
|
[1] |
Piston rod
|
|
| 19. |
VOE11999363
|
[1] |
Piston rod guide
|
|
| 2. |
VOE15208183
|
[1] |
Attachment bracket
|
|
| 20. |
VOE4784040
|
[1] |
Piston rod seal
|
|
| 21. |
VOE11010780
|
[1] |
Spacer ring
|
|
| 22. |
VOE914519
|
[1] |
Retaining ring
|
|
| 23. |
VOE11999360
|
[1] |
Scraper
|
|
| 24. |
VOE925067
|
[1] |
O-ring
|
|
| 25. |
VOE13962550
|
[1] |
Back-up ring
|
|
| 26. |
VOE13960215
|
[1] |
O-ring
|
|
| 27. |
VOE11999361
|
[1] |
Piston seal
|
|
| 28. |
VOE11999365
|
[1] |
Piston
|
|
| 29. |
VOE13962970
|
[1] |
Screw
|
|
| 3. |
VOE14023568
|
[2] |
Lubricating nipple
|
AM10x1
|
| 30. |
VOE11999362
|
[1] |
Sealing kit
|
|
| 31. |
ZM2809818
|
[1] |
Cover plate
|
|
| 32. |
VOE11045194
|
[1] |
Protection
|
|
| 33. |
VOE11305837
|
[7] |
Washer
|
B 8,4
|
| 34. |
VOE983243
|
[7] |
Hexagon screw
|
M8x25
|
| 35. |
VOE60110353
|
[2] |
Washer
|
B13
|
| 36. |
VOE11306520
|
[1] |
Bolt
|
|
| 37. |
VOE11305011
|
[1] |
Retainer
|
|
| 38. |
VOE983251
|
[2] |
Hexagon screw
|
M10x25
|
| 39. |
ZM2801814
|
[2] |
Pin
|
|
| 4. |
VOE4741314
|
[2] |
Pin
|
|
| 40. |
ZM2801815
|
[2] |
Striker plate
|
|
| 41. |
VOE11306294
|
[4] |
Hexagon screw
|
M12x25
|
| 5. |
VOE11081958
|
[2] |
Indication arm
|
|
| 6. |
VOE13964908
|
[2] |
Clevis pin
|
|
| 7. |
ZM7098983
|
[2] |
Cotter pin
|
4x36
|
| 8. |
VOE11011654
|
[1] |
Stop
|
|
| 9. |
VOE997446
|
[2] |
Hexagon screw
|
M12x30
|
