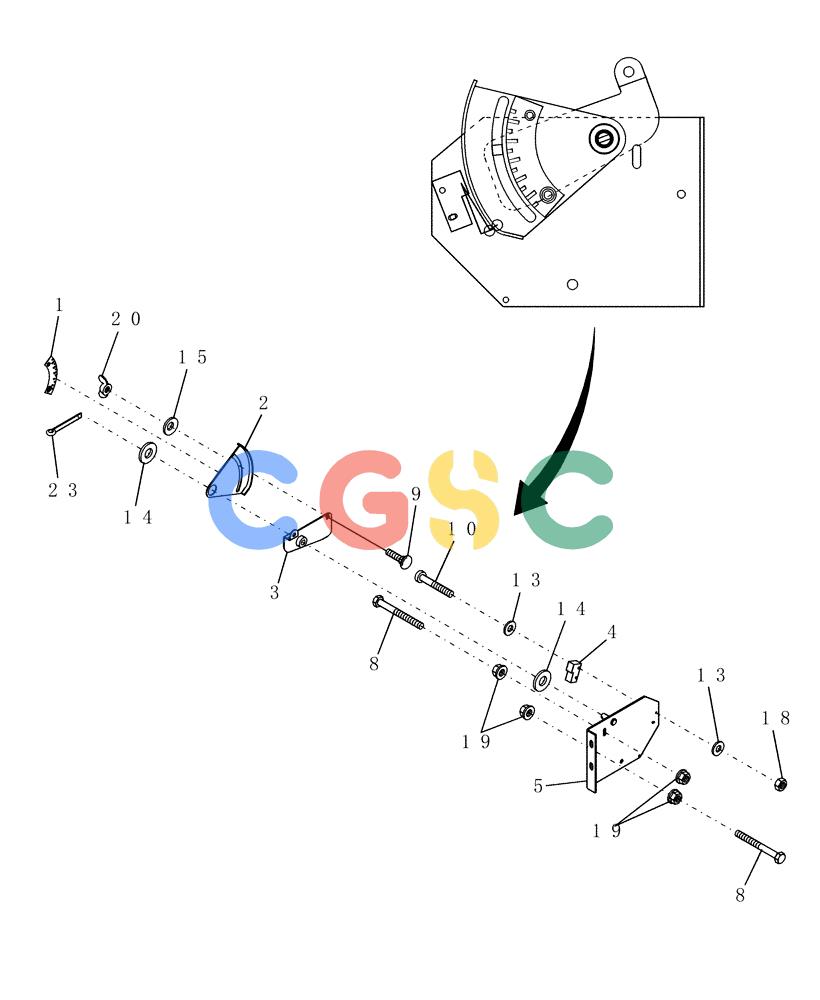

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (019[2]) - ELECTRIC TWINE WRAP, BALE SIZE SWITCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86628305
|
[1] |
WARNING SIGN
|
NH
Bale Size
|
| 2. |
86631648
|
[1] |
TRIP
|
NH
|
| 3. |
87024454
|
[1] |
PIVOT
|
PA
|
| 4. |
783681
|
[1] |
SWITCH
|
NH
Electric Twine Wrap
|
| 5. |
86631650
|
[1] |
SUPPORT ASSY.
|
NH
|
| 8. |
814-6050
|
[2] |
BOLT,Hex, M6 x 1 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120056
|
| 9. |
434-58
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
|
CAS
Superseded by part number: 280616
|
| 10. |
88363
|
[2] |
SCREW,Fillister Hd, #6 - 32 x 1 1/4"
|
NH
|
| 13. |
495-31016
|
[4] |
WASHER,#6
|
CAS
Superseded by part number: 86511189
|
| 14. |
64263
|
[1] |
WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk
|
NH
|
| 15. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 18. |
193-1003
|
[2] |
NUT,Keps, w/LW,#6-32
|
CAS
Superseded by part number: 280859
|
| 19. |
825-5146
|
[4] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 20. |
80801
|
[1] |
WING NUT
|
NH
5/16"
|
| 23. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
Superseded by part number: 80755
|
