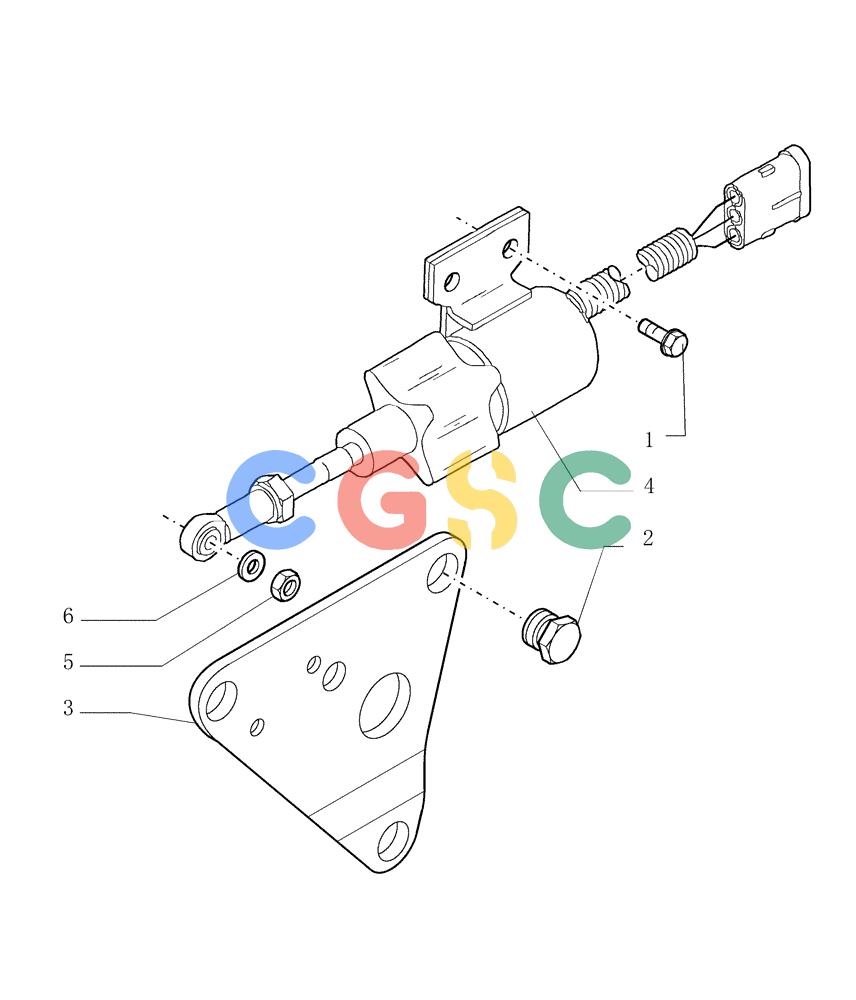

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (0.146[01]) - FUEL EXCLUSION VALVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3900626 | [2] | SCREW,M6 x 12mm | L6X1X12 |
| 2. | 76192538 | [3] | SCREW | TOR16X1,5X12 Superseded by part number: J991132 |
| 3. | 76192539 | [1] | BRACKET | TOR Superseded by part number: J930589 |
| 4. | 76192575 | [1] | SOLENOID | TOR Superseded by part number: 73187352 |
| 5. | 76192490 | [1] | NUT | TOR5X0,8 M5X0,8 Superseded by part number: J930683 |
| 6. | 10519321 | [1] | WASHER,5.3mm ID x 9.55mm OD x 1mm Thk | LEC Superseded by part number: 9824326 |
