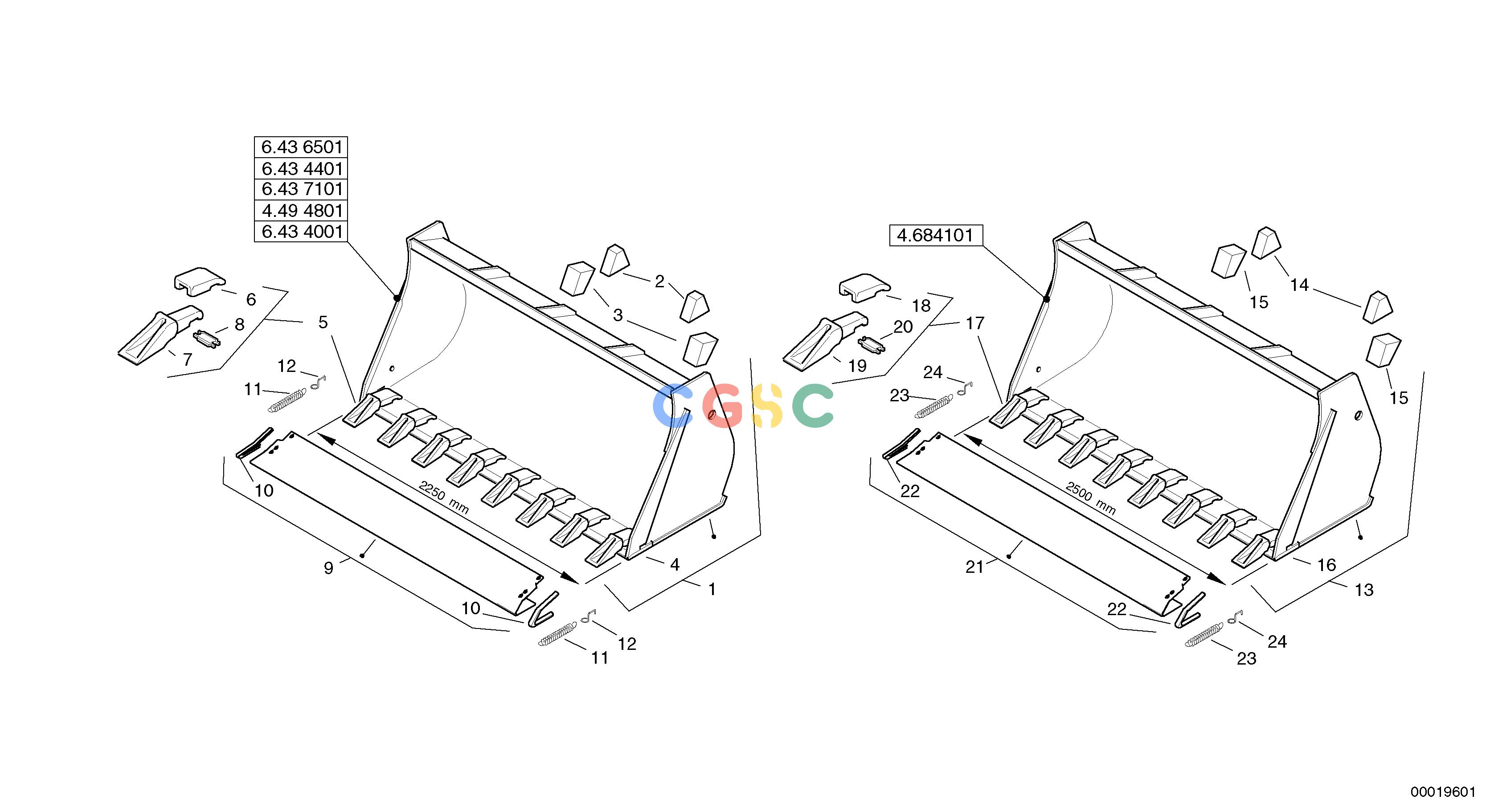

沃尔沃零件查询L40 Bucket with teeth - TpzTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813684
|
[1] |
Bucket
|
2250 mm, 4.494801
|
| 6. |
ZM2078110
|
[8] |
Sleeve
|
|
| 7. |
ZM2078100
|
[8] |
Tooth
|
|
| 8. |
ZM2078120
|
[8] |
Lock pin
|
|
| 9. |
ZM2811020
|
[1] |
Guard
|
|
| 10. |
ZM4414702
|
[2] |
Edge protection
|
|
| 11. |
VOE11315002
|
[2] |
Tension spring
|
|
| 12. |
ZM2801364
|
[2] |
Eye
|
|
| 13. |
ZM2815193
|
[1] |
Bucket, 2000 l
|
2500 mm, 4.684101
|
| 14. |
ZM2803785
|
[2] |
Stop
|
|
| 15. |
ZM2803786
|
[2] |
Stop
|
|
| 1. |
ZM2813002
|
[1] |
Bucket
|
2250 mm, 6.434001
|
| 16. |
ZM2815195
|
[2] |
Wearing plate
|
|
| 17. |
ZM4317145
|
[8] |
Tooth
|
|
| 18. |
ZM4317147
|
[8] |
Tooth holder
|
|
| 19. |
ZM4317146
|
[8] |
Tooth point
|
|
| 20. |
ZM4317148
|
[8] |
Tooth safety
|
|
| 21. |
ZM2813491
|
[1] |
Guard
|
|
| 22. |
ZM4414702
|
[2] |
Edge protection
|
|
| 23. |
VOE11315002
|
[2] |
Tension spring
|
|
| 24. |
ZM2801364
|
[1] |
Eye
|
|
| 1. |
ZM2813036
|
[1] |
Bucket
|
2250 mm, 6.436501
|
| 1. |
ZM2813115
|
[1] |
Bucket
|
2250 mm, 6.437101
|
| 1. |
ZM2815193
|
[1] |
Bucket, 2000 l
|
2500 mm, 4.684101
|
| 2. |
ZM2803785
|
[2] |
Stop
|
|
| 3. |
ZM2803786
|
[2] |
Stop
|
|
| 4. |
ZM4407561
|
[1] |
Wearing plate
|
|
| 5. |
VOE11307404
|
[8] |
Tooth
|
|
