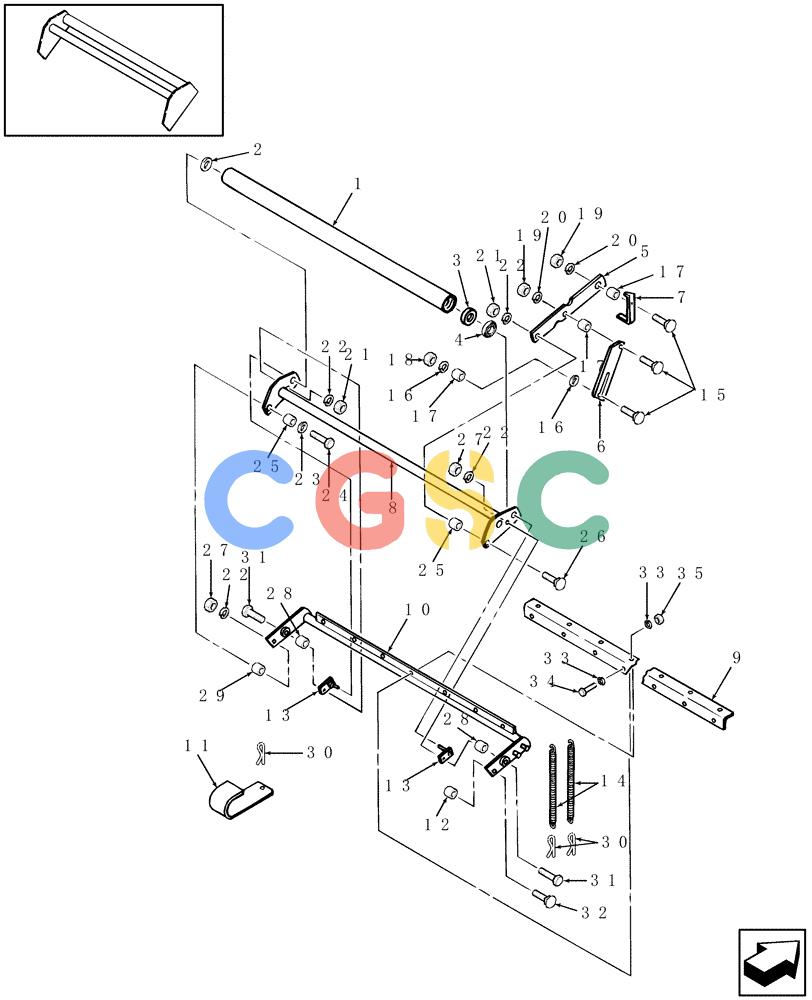

| 1. |
86978157
|
[1] |
TUBE,1327 mm L
|
NH
|
| 2. |
140021
|
[1] |
WASHER,22mm ID x 37mm OD x 3mm Thk
|
NH
|
| 3. |
9805956
|
[1] |
HUB
|
NH
Includes: Magnet
|
| 4. |
242038
|
[1] |
BALL BEARING,19.84mm ID x 28.7mm OD x 15.88mm L
|
NH
|
| 5. |
86637003
|
[1] |
ARM
|
NH
|
| 6. |
86636977
|
[1] |
LATCH
|
NH
|
| 7. |
86637166
|
[1] |
HANDLE
|
NH
|
| 8. |
86978162
|
[1] |
ARM
|
NH
|
| 9. |
86542665
|
[1] |
PAD
|
NH
|
| 10. |
86978161
|
[1] |
ARM
|
NH
Brake
|
| 11. |
9800151
|
[1] |
BAR PLATE
|
NH
|
| 12. |
131522
|
[1] |
SPACER
|
NH
Split
|
| 13. |
86636883
|
[2] |
PIN
|
NH
|
| 14. |
38668
|
[4] |
SPRING
|
NH
|
| 15. |
308761
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 16. |
495-21038
|
[9] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 17. |
25457
|
[3] |
SPACER
|
NH
|
| 18. |
825-1408
|
[5] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 19. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 20. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 21. |
832-46410
|
[4] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 22. |
140045
|
[5] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 23. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 24. |
814-10050
|
[1] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 25. |
86636722
|
[2] |
SPACER,12.62mm ID x 19.05mm OD x 15.75mm L
|
NH
|
| 26. |
811-10030
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 27. |
825-1410
|
[1] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 28. |
137938
|
[2] |
SPACER
|
NH
|
| 29. |
646056
|
[1] |
SPACER,13/32” ID x .750” OD x .338” Tk.
|
NH
|
| 30. |
432-1212
|
[6] |
COTTER PIN,3/16" x 3/4"
|
CAS
Superseded by part number: 87019
|
| 31. |
811-10050
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 350459
|
| 32. |
811-12040
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 328754
|
| 33. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 34. |
614-6016
|
[9] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 35. |
825-1406
|
[18] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
